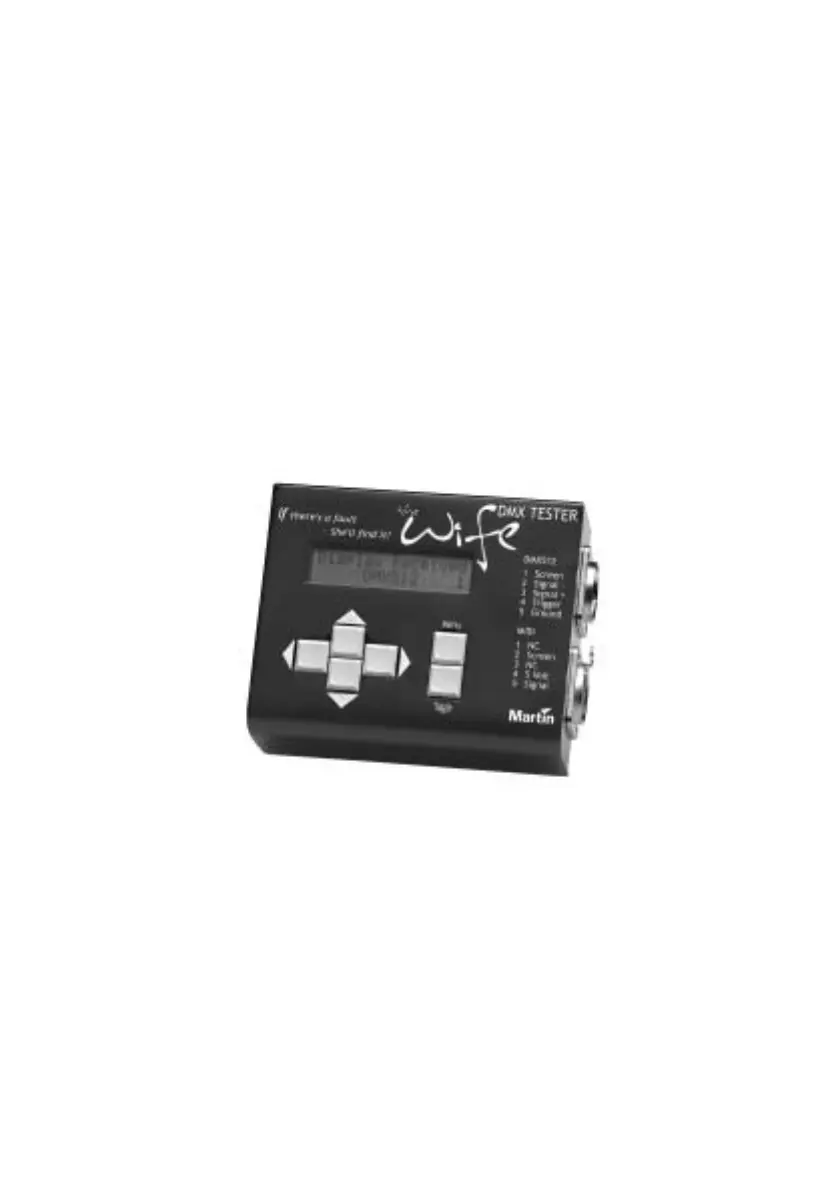

‘The Wife’ DMX
Tester
user manual
Measurements are in millimeters.
© 2002 Martin Professional A/S, Denmark.
All rights reserved. No part of this manual may be reproduced, in any form or by any means, without
permission in writing from Martin Professional A/S, Denmark.
The information contained in this document is subject to change without notice. Martin Professional
AS makes no warranty of any kind with regard to this material, including, but not limited to, the
implied warranties of fitness for a particular purpose.
Martin Profession AS shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance or use of this material.
‘The Wife’ DMX Tester 3 is fully compliant with all EMC and LVD directives.
P/N 35000105 Revision B
3
Table of Contents
Introduction ..............................................................................................6
Quick start ...........................................................................................6
‘The Wife’ DMX Tester features ..........................................................6
The control surface ..................................................................................7
Overview .............................................................................................7
Menu ...................................................................................................7
Toggle! ................................................................................................7
Left RIGHT..........................................................................................8
Up DOWN ...........................................................................................8
Menus .................................................................................................9
The menus ..............................................................................................12
Displaying received DMX512............................................................12
Status ..........................................................................................13
DMX base ...................................................................................13
Display mode ....................................................................................14
D .................................................................................................14
%.................................................................................................14
$ ..................................................................................................14
B..................................................................................................14
Data received....................................................................................15
Data error..........................................................................................15
S..................................................................................................15
F..................................................................................................15
O .................................................................................................15
T..................................................................................................15
Loop through.....................................................................................15
MAX/MIN mode.................................................................................16
Flicker hunt........................................................................................16
Hexadecimal .....................................................................................17
Timing mode .....................................................................................17
Checksum mode ...............................................................................18
Trigger output..............................................................................18
Display received SIP’s ......................................................................19
SIP SUB display..........................................................................19
Checksum analysis .....................................................................20
SIP Che .........................................................................20cksum
Packet checksum.....................................................................21
SIP data structure .......................................................................23
