UPS-RELAY
Dry Contact Card
Manual
05-10-18
Lowell Manufacturing Company | 05-10-18
UPS-RELAY Manual
Page 2
Product Introducon
UPS-RELAY card
Included terminal block accessory, front and rear view
The UPS-RELAY provides Form C relay dry contact closures for remote monitoring of your UPS. For versality, the
UPS-RELAY is capable of selecng Acve Open or Acve Closed via jumper seng. It also provides for DB9 or ter-
minal block output connecons. Suitable applicaons for this card are listed below:
• IBM Server, Personal PC & Workstaons equipment
• Auto-controlled industrial equipment & communicaon applicaons
Installaon
Step 1: Remove the cover of Intelligent Slot on the rear panel of the UPS, saving the two screws.
Lowell Manufacturing Company | 05-10-18
UPS-RELAY Manual
Page 3

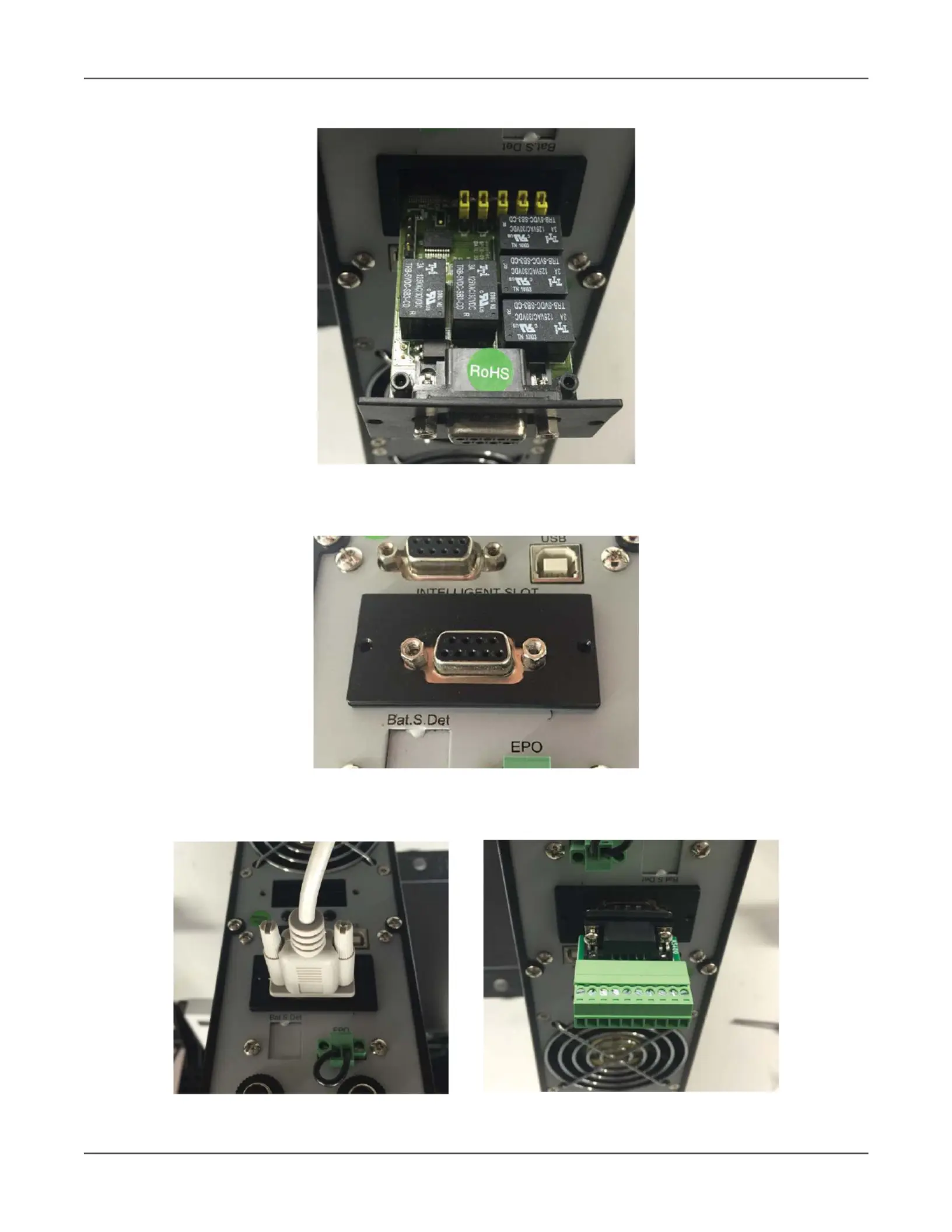

Step 2: Insert UPS-RELAY into Intelligent Slot. Ensure sides of card slide into rails of the card slot.
Step 3: The faceplate of the UPS-RELAY should be against the rear panel. Use a screwdriver to secure the UPS-
RELAY to the UPS chassis with the two screws saved in Step 1.
Step 4: Use a 9-pin communicaon cable to connect monitoring equipment to DB9 or stripped wires to connect to
screw terminals, implemenng the remote monitoring and control.
