Directions:
To ensure the performance of your screen, please note the following points:
1. When installing the screen, find a floor or counter top of the correct size. It's best to cover it with a clean
cloth sheet or another soft material so the screen does not get damaged.
2. Do not write or mark the screen or the frame.
3. Do not use sharp or hard objects on the screen๎to avoid scratches or damage.
4.๎Avoid touching the white part of the screen๎with your hands.
5. Do not use a corrosive๎detergent to clean the screen. For cleaning use a soft clean cloth to remove dust.
6. During installation, please take it lightly and keep children away.๎๎
Parts Included:
Long Frame x2
Short Frame x2
Long Fiberglass Rod x2
Short Fiberglass Rod x2
Screen x1
Corner Plate
x4
Spring Hook
x1
Springs
x44
Hanging Bracket
x2
Corner Plate Screws
x16
Wall Anchors
x6
Wall Screws
x6

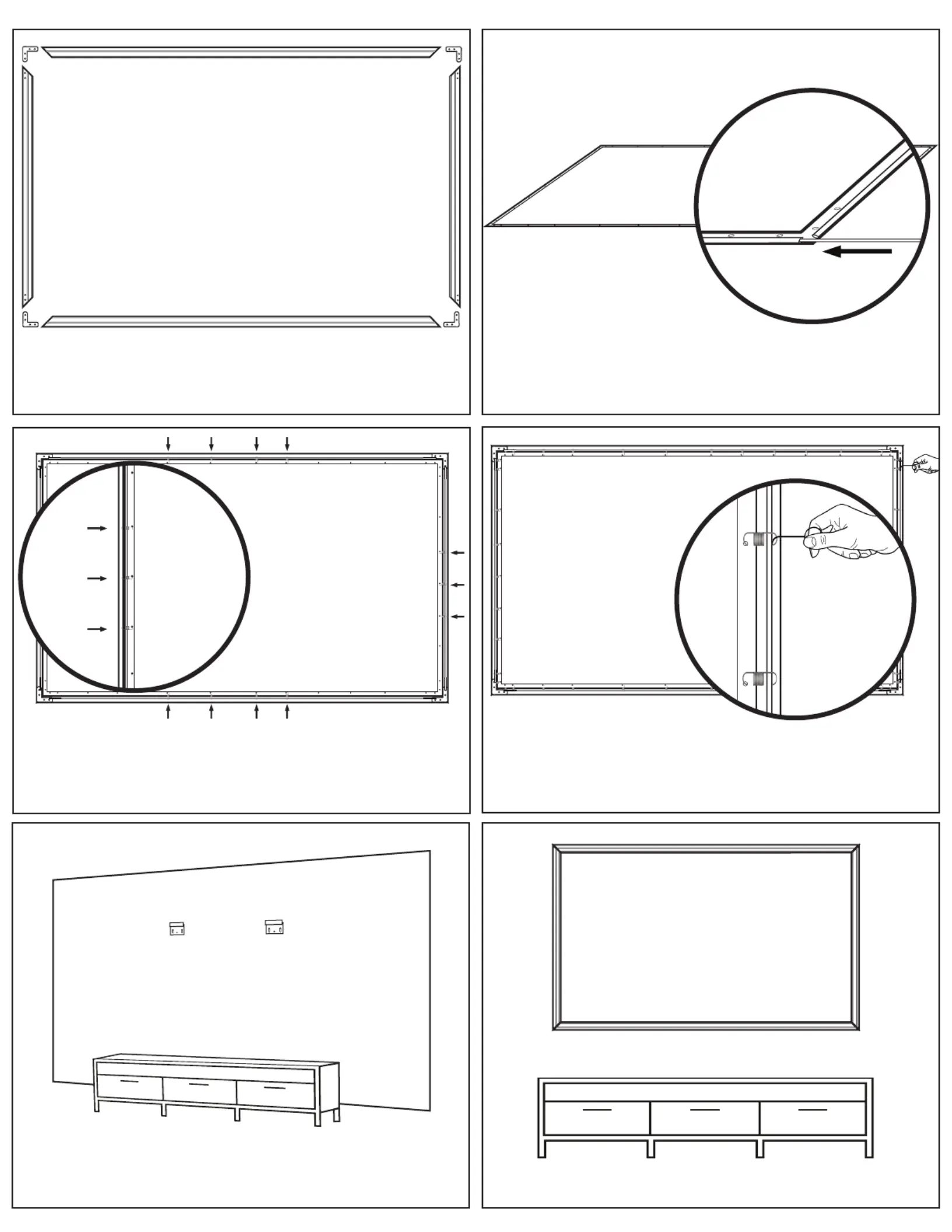

1. Place the four frames facing down onto the floor or countertop (as the image ), and
screw the corner plates into place by using the corner plate screws.
3. Place the screen with the white side facing down on top of the facing down frame to
hook the springs. Start by placing the spring in the middle part of the screen (3-4 on
each side ), pulling them toward the frame.
4. , Continue to hook the corner springs toward the frame, then complete the remaining
springs until the screen is completely stretched out.
5. Measure the area where the projector screen is going to be hung. Install the brackets
at the least 50-inch apart, and make sure there are aligned. Use a power drill to make
the holes. Insert the anchors then place the brackets and screws into place. 6. Hang your projector screen and Enjoy!
2. For this step we recommend washing your hands, avoid touching the white side of the
screen, and use a clean cloth sheet underneath. Roll out the projector screen with the
black side facing up, and slide the fiberglass rods into the four side pockets of the
screen.
Product Specifications
Brand: | KHOMO GEAR |
Category: | Projection screen |
Model: | GER-1252 |
