Page 1/16
Scan to
register your
product warranty
Important: Read before use. β’ Importante: Leer antes de usar.

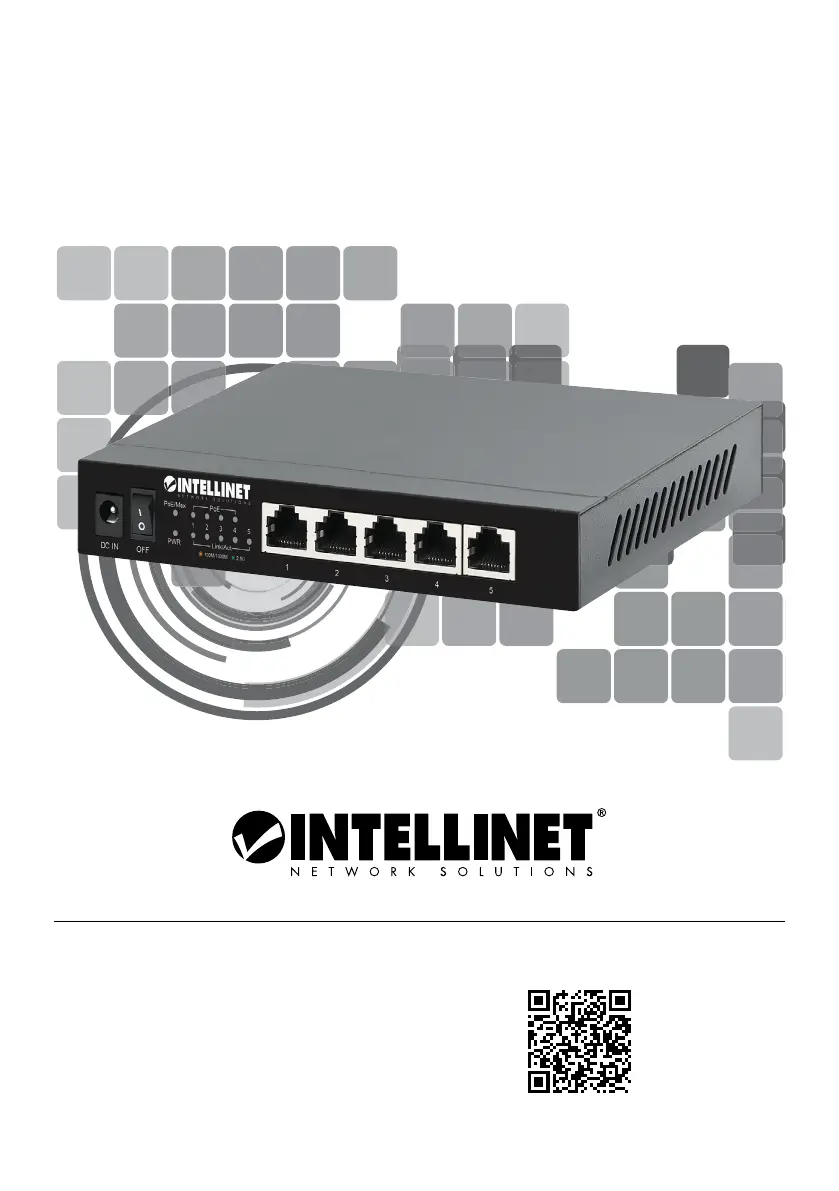

5-Port 2.5G Ethernet PoE+
Switch
Instructions
Model 561921 (IPS-05-2.5G -55W)
For additional beneξts:
or go to: register.intellinet-network.com/r/561921
2English
Instructions
The Intellinet Network Solutions 5-Port 2.5G Ethernet PoE+ Switch offers an array of time-saving,
cost-effective features while providing superior network throughput. No configuration is required
and installation is plug and play. Thanks to its desktop design, superior performance and value,
the switch is the perfect choice for your small office home or home network. With a backplane
speed of 25 Gbps, plenty of performance is available for your computers, servers and other
networking devices. Each of the ports automatically senses the link speed of the connected
network device and adjusts to 10, 100, 1000 and 2500 Mbps for compatibility and maximum
performance. Designed to give ample power to compatible devices that need them, this PoE+
switch offers up to 30 watts of power per port until its power budget of 55 watts is reached.
Features
β’ Provides up to four PoE network devices with power and data (ports 1 β 4)
β’ Ultra-fast 2.5GBASE-T RJ45 Ethernet ports, IEEE 802.3bz compliant
β’ PoE power budget of 55 watts
β’ Power output up to 30 watts on each PoE-capable port
For specifications, visit intellinetnetwork.com. Register your product at
register.intellinet-network.com/r/561921 or scan the QR code on the cover.
Placement
Desktop Installation
Prior to use, it is recommended that the switch be placed/positioned:
β’ on a level surface that can support the weight of the switch (and possibly other objects);
β’ with at least 25 mm (approx. 1β) of clearance for ventilation;
β’ away from sources of electrical noise: radios, transmitters, broadband amplifiers;
β’ within 100 m (approx. 328β) of network devices itβs to be connected to.
Wall Mounting
First, install screws (not included) into the wall at appropriate distances.
Then, hang the unit on the screws and slide it into place so it is secure.
3
English
Front Panel
LED COLOR STATUS STATUS DESCRIPTION
PWR Green Off Power Off.
On Power On.
Link/Act
Off No device is connected to the port.
Orange On A device is connected to the port
at 100/1000 Mbps speeds.
Green On A device is connected to the port
at 2500 Mbps speeds.
Flashing Sending or receiving data.
PoE Green
Off Port is not supplying power to
a connected PoE device.
On The connected device is receiving power.
Flashing Abnormal power supply.
PoE/Max Green
Off The system is using less than 50 W.
On The system has reached a total power
output of 50 W. The PoE total is nearing
its maximum level of 55 W.
Cat5e/6/6a/8.x UTP/STP cables provide optimal performance. If a status LED doesnβt indicate
a link or activity, check the corresponding device for proper setup and operation.
Power
1 Use the included power cord to connect the device to an AC
outlet. The device supports AC 100 β 240 V, 50/60 Hz.
2 Press | to turn the switch on; press O to turn it off .
1 2
Instructions
Product Specifications
| Brand: | Intellinet |
| Category: | Switch |
| Model: | 561921 |
