INT-561204_QiG-0317_REV-5.01
Important: Read before use. • Importante: Leer antes de usar.
intellinetnetwork.com

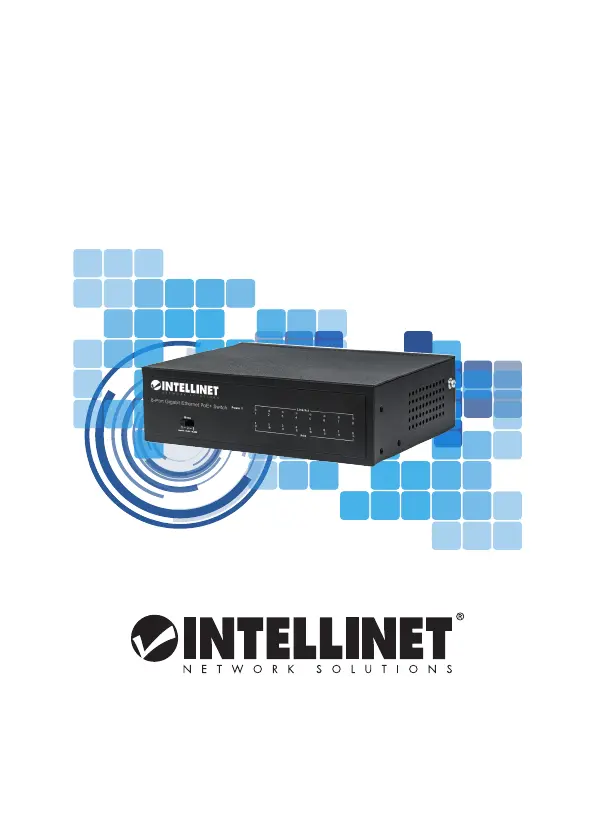

8-Port Gigabit Ethernet PoE+
Switch Quick Instruction
Guide
Model 561204
LED Status Operation
Power On Power On
O Check connection; turn power on
PoE
On Port is linked to PSE/PoE device
Blinking PoE Overload
O No PSE/PoE device is linked
Link/Act
On Valid port connection on port 5
Blinking Valid port connection; data transmitted/received
O No link established
8-Port Gigabit Ethernet PoE+ Switch English
2
English
This guide presents the basic steps to set up and operate this device. For detailed
instructions and specications, refer to the user manual enclosed with this product
or at intellinetnetwork.com.
Ports
All ports on the switch support Auto-MDI/MDI-X functionality, so you can use
straight or crossover UTP/STP cables to connect the RJ45 ports to PCs, routers,
hubs, other switches, etc. Cat5/5e/6 UTP/STP cables provide optimal performance;
if a status LED doesn’t indicate a link, check the corresponding device for proper
setup and operation.
LEDs
The LED indicators make monitoring and troubleshooting easier. If a status LED
doesn’t indicate a link or activity, check the corresponding device for proper setup
and operation.
• Ports 1 – 8: 10/100/1000 Mbps ports, IEEE 802.3af/at compliant, providing a
maximum of 30 watts to connected PoE devices. The total PoE budget for this
switch is 60 watts, the per-port average power distribution is 7.5 watts.
• Port 1: The designated uplink port can be used the same way as any of the
other ports, however, when port isolation (VLAN mode 1 or 2) is active, this port
remains accessible from all other ports.
Prior to use, place/position the switch:
•Onalevelsurfacethatcansupporttheweightoftheswitch(andanyotheritems
that need to be considered);
•Withaminimumof25mm(approx.1”)ofclearanceonthetopandsides
for adequate ventilation;
•Awayfromelectric-noisesources:radios,transmitters,broadbandampliers,etc.;
•Whereitcannotbeaectedbyexcessivemoisture.
Placement
English
3
English
8-Port Gigabit Ethernet PoE+ Switch
Use the included power adapter to connect the receptacle on the back of the
switch to a power outlet, and conrm that the Power LED lights.
Power
VLAN Mode
The Intellinet 8-Port Gigabit PoE+ Switch (561204) features port
isolation,alsoreferredtoas“PrivateVLAN”.Itisolatesallports
from each other and only allows access to the uplink port. This
is useful, for example, if a private VLAN is a hotel where each
room or apartment has a network port for Internet access. All
ports can all access the Internet, but they cannot access each other.
Mode Operation
Normal The switch operates as a standard Ethernet switch. All ports can
communicate with each other.
VLAN1 Ports 2 – 8 are isolated from each other, but do have access to port 1.
VLAN2
Ports 2 – 8 are isolated from each other, but do have access to port
1. In addition, the connection speed of ports 2 – 8 is limited to 10
Mbps.
