Intellinet 560993 Manual

Read below 📖 the manual in Italian for Intellinet 560993 (12 pages) in the Not categorized category. This guide has been helpful for 6 people and has been rated 4.5 stars on average by 2 users

Page 1/12
16-PORT
GIGABIT ETHERNET
PoE+ SWITCH
INSTRUCTIONS
MODEL 560993
INT-560993-QIG-ML1-0415-01
Important: Read before use. • Importante: Leer antes de usar.
intellinetnetwork.com
2
ENGLISH
16-Port Gigabit Ethernet PoE+ Switch English
Thank you for purchasing the Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+
Switch, Model 560993. For specications, go to intellinetnetwork.com.

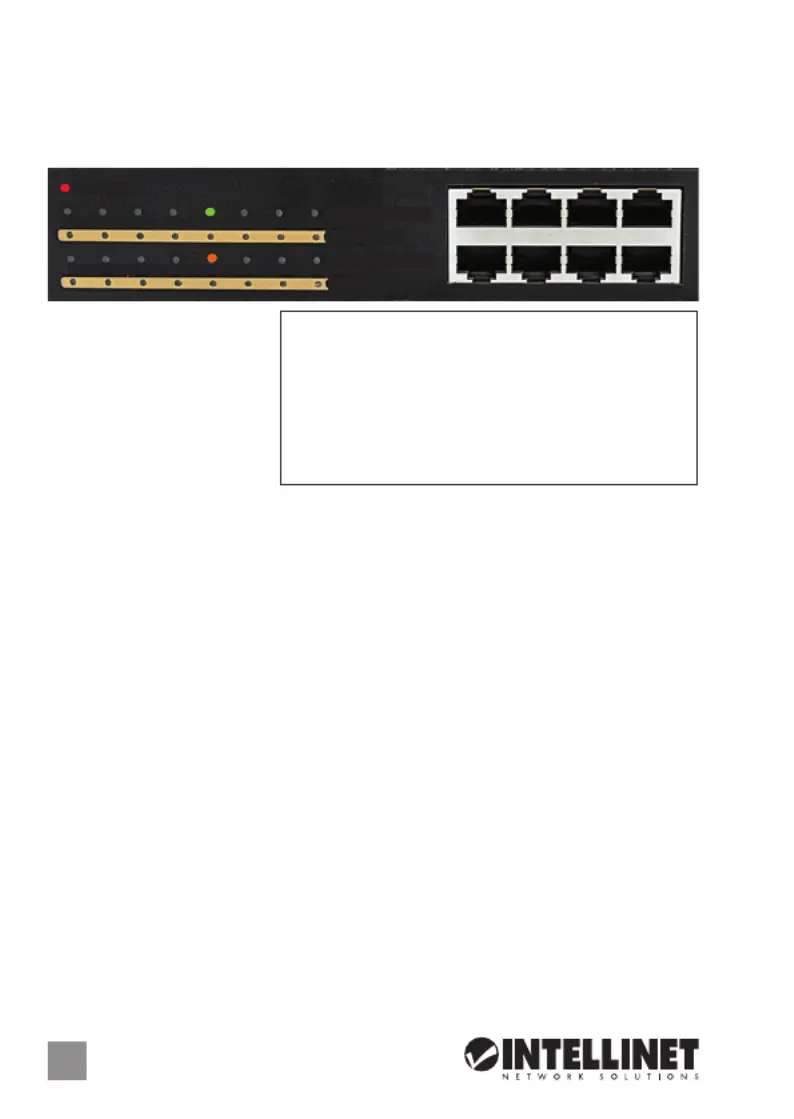

CONNECTIONS & INDICATORS
LEDs
The LED indicators — Power,
PoE, Link/Activity — make it
easier to monitor the switch
and its connections. NOTE:
All ports provide power to a
connected device, and all
connected devices should
comply with IEEE 802.3af.
Ports
All ports on the switch support Auto-MDI/MDI-X functionality, so crossover cables and
uplink ports are not needed for connections to PCs, routers, hubs, other switches, etc.
Cat5/5e/6 UTP/STP cables provide optimal performance; if a status LED doesn’t indicate
a link or activity, check the corresponding device for proper setup and operation.
Power
Use the included power cord to connect the device (on the rear panel) to an AC outlet.
Conrm that the power LED on the front panel is lit.
INSTALLATION
Prior to use, it is recommended that the switch be placed/positioned:
• onalevelsurfacewithatleast25mm(approx.1”)ofclearanceforventilation;
• awayfromsourcesofelectricalnoise:radios,transmitters,broadbandampliers,etc.;
• within100m(approx.328’)ofnetworkdevicesit’stobeconnectedto.
Rackmount
The switch includes brackets and screws for optional rack mounting.
1. Disconnect any cables from the switch.
2. Position a bracket over the mounting holes on one side of the switch and secure it
in place with screws.
3. Repeat Step 2 on the other side of the switch.
4. Position the switch in the rack and screw the brackets to the rack.
5. Reconnect any cables.
LED Status Operation
Power On Power on
Off Check the AC connection; turn the power on
PoE On Port is linked to a PSE/PoE device
Off No PSE/PoE device is linked
Link/Act On Valid connection: orange = 10/100M; green = 1000M
Blinking Valid port connection; data transmitted/received
Off No link established
1 3 5 7
2 4 6 8
2 4 6 8 10 12 14 16
1 3 5 7 9 11 13 15
PWR
LNK/ACT/Speed
LNK/ACT/Speed
PoE in Use
PoE in Use
DEUTSCH 3
16-Port Gigabit Ethernet PoE+ Switch Deutsch
Vielen Dank fĂźr den Kauf des Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+
Switch, Modell 560993. Die Spezikationen nden Sie auf intellinetnetwork.com.

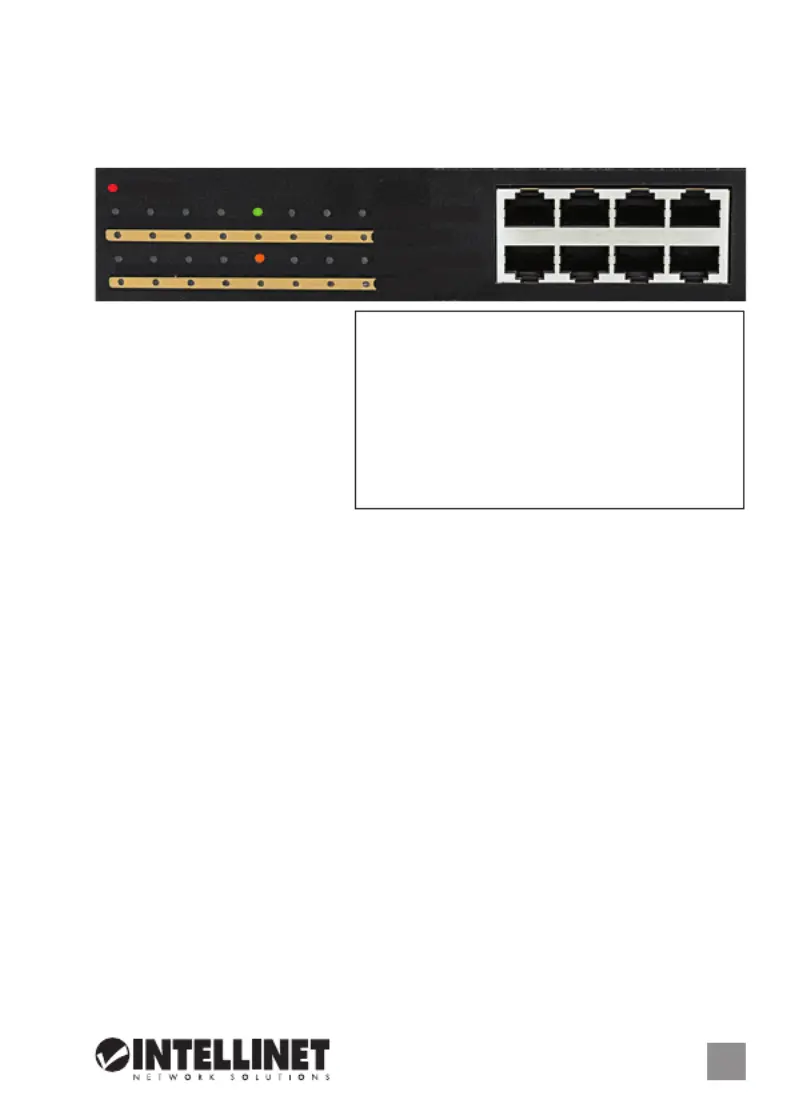

ANSCHLÜSSE & ANZEIGEN
LED-Anzeigen
Die LEDs — Strom, PoE, Verbindung/
Aktivität — vereinfachen das
Ablesen der Funktionen und
AnschlĂźsse. HINWEIS: Alle Ports
versorgen angeschlossene Geräte
mit Strom und alle angeschlossenen
Geräte sollten IEEE 802.3af-konform
sein.
Ports
Alle Ports unterstßtzen Auto-MDI/MDI-X Funktionalität, daher werden Crosskabel und
Uplink-Ports fĂźr Verbindungen zu PCs, Routern, Hubs, anderen Switchen, etc. nicht
benĂśtigt. Cat5/5e- UTP/STP-Kabel bieten die beste Performance. Wenn eine LED keine
Verbindung/Aktivität anzeigt, ßberprßfen Sie das verbundene Gerät.
Strom
Schließen Sie das beiliegende Stromkabel an das Gerät (auf der Rückseite) und an eine
Steckdosean.VergewissernSiesichdassdie“Power”-LEDaueuchtet.
INSTALLATION
Es wird empfohlen, den Switch vor der Nutzung folgendermaßen aufzustellen:
• aufebenemUntergrundmitmind.25mmRundumabstandfürausreichendLuftdurchsatz
• fernvonanderenÜbertragungsgerätenwieRadio,Breitbandverstärker,etc.
• max.100mvomzuverbindendenNetzwerkgerätentfernt.
Rackmontage
Diesem Switch liegen Haltewinkel und Schrauben fĂźr optionale Rackmontage bei.
1. Trennen Sie alle Kabel von dem Switch.
2. Platzieren Sie einen Haltewinkel Ăźber den MontagelĂśchern auf einer Seite des
  SwitchesundxierenSieihnmitSchrauben.
3. Wiederholen Sie Schritt 2 auf der anderen Seite des Switches.
4. Platzieren Sie den Switch in dem Rack und schrauben Sie die Haltewinkel fest.
5. Schließen Sie alle Kabel wieder an.
LED Status Operation
Power An Gerät wird mit Strom versorgt
Aus Stromanschluss prßfen/Gerät einschalten
PoE An Port ist mit PSE/PoE-Gerät verbunden
Aus Kein PSE/PoE-Gerät angeschlossen
Link/Act An Verbindung ist hergestellt:
orange = 10/100M; grĂźn = 1000M
Blinkend Verbindung ist hergestellt; DatenĂźbertragung
Aus Verbindung ist nicht hergestellt
1 3 5 7
2 4 6 8
2 4 6 8 10 12 14 16
1 3 5 7 9 11 13 15
PWR
LNK/ACT/Speed
LNK/ACT/Speed
PoE in Use
PoE in Use
