Page 1/12

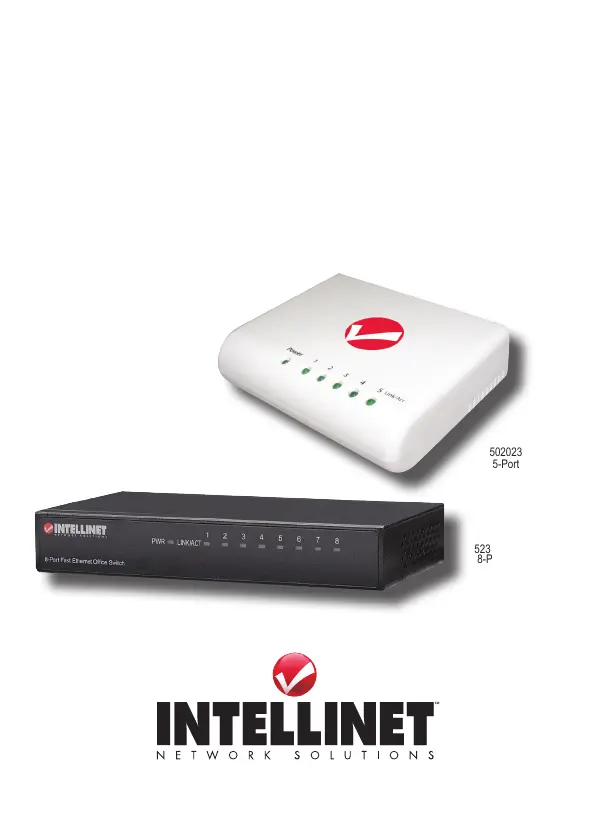

FAST ETHERNET
OFFICE SWITCH
USER MANUAL
MODELS 502023, 502054,
523301, 523318
INT-502023/502054/523301/523318-UM-ML-0712-11
ENGLISH
DEUTSCH
ESPAƑOL
FRANƇAIS
POLSKI
ITALIANO
SLOVENSKY
318
ort
2
ENGLISH
Fast Ethernet Oī›¶ce Switch ā€¢ User Manual English
Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ā„¢ Fast Ethernet Oļ¬ƒce
Switch, Model 502023 (5-port plastic housing), Model 523301 (5-port metal housing),
Model 502054 (8-port plastic housing) or Model 523318 (8-port metal housing).
LEDs
The LED indicators ā€” Power, Link/Activity ā€”
make monitoring and troubleshooting easier.
CONNECTIONS
Power
Plug the female end of the power adapter
ļ¬rmly into the IN jack and the other end into
an electrical outlet. Conļ¬rm that the power
LED is lit. NOTE: To ensure proper operation, use only the included power adapter.
All ports on the switch support Auto-MDI/MDI-X functionality, so crossover cables and
uplink ports are not needed for connections to PCs, routers, hubs, other switches, etc.
Cat5/5e UTP/STP cables provide optimal performance; if a status LED doesnā€™t indicate
a link or activity, check the corresponding device for proper setup and operation.
INSTALLATION
Prior to use, it is recommended that the switch be placed/positioned:
ā€¢ī˜ onī˜aī˜levelī˜surfaceī˜thatī˜canī˜supportī˜theī˜weightī˜ofī˜theī˜switchī˜(andī˜anyī˜otherī˜itemsī˜
that need to be considered);
ā€¢ī˜ withī˜aī˜minimumī˜ofī˜25ī˜mmī˜(approx.ī˜1ā€)ī˜ofī˜clearanceī˜onī˜theī˜topī˜andī˜sidesī˜forī˜
adequate ventilation;
ā€¢ī˜ awayī˜fromī˜sourcesī˜ofī˜electricalī˜noise:ī˜radios,ī˜transmitters,ī˜broadbandī˜ampliī™­ers,ī˜etc.;
ā€¢ī˜ whereī˜itī˜cannotī˜beī˜aī›µectedī˜byī˜excessiveī˜moisture;ī˜and
ā€¢ī˜ withinī˜100ī˜mī˜(approx.ī˜328ā€™)ī˜ofī˜networkī˜devicesī˜itā€™sī˜toī˜beī˜connectedī˜to.
LED Status Operation
PWR On Power on
ī˜ Oī›µī˜ Checkī˜theī˜ACī˜connection;ī˜turnī˜theī˜powerī˜on
LNK/ACT On Valid port connection
Blinking Valid port connection; data transmitted/received
ī˜ Oī›µī˜ Noī˜linkī˜established
PWR LINK/ACT
1 2 543
DEUTSCH 3
Fast Ethernet Oī›¶ce Switch ā€¢ Handbuch Deutsch
Vielen Dank fĆ¼r den Kauf des INTELLINET NETWORK SOLUTIONS ā„¢ Fast Ethernet Oļ¬ƒce
Switch,ī˜Modellī˜502023ī˜(5-Portī˜Kunststoī›µgehƤuse),ī˜Modellī˜523301ī˜(5-Portī˜MetallgehƤuse),ī˜
Modellī˜502054ī˜(8-Portī˜Kunststoī›µgehƤuse)ī˜oderī˜Modellī˜523318ī˜(8-Portī˜MetallgehƤuse).
LEDs
Dieī˜LEDsī˜ā€”ī˜Strom,ī˜Verbindung/AktivitƤtī˜ā€”ī˜zeigen
Funktionen an und helfen bei Problemdiagnosen.
ANSCHLƜSSE
Strom
SchlieƟenī˜Sieī˜dasī˜Buchsenendeī˜desī˜Netzteilsī˜
aufī˜derī˜Seiteī˜desī˜GerƤtsī˜anī˜undī˜denī˜Steckerī˜
an der Steckdose. ƜberprĆ¼fen Sie, ob die
ā€œPWRā€-LEDī˜aktiviertī˜ist.ī˜ Nutzenī˜Sieī˜nurī˜dasī˜mitgelieferteī˜Netzteilī˜fĆ¼rī˜volleī˜HINWEIS:
KompatibilitƤtī˜undī˜einwandfreienī˜Betrieb.
Alleī˜Portsī˜unterstĆ¼tzenī˜Auto-MDI/MDI-Xī˜FunktionalitƤt,ī˜daherī˜werdenī˜Crosskabelī˜undī˜
Uplink-Portsī˜fĆ¼rī˜Verbindungenī˜zuī˜PCs,ī˜Routern,ī˜Hubs,ī˜anderenī˜Switchen,ī˜etc.ī˜nichtī˜
benƶtigt. Cat5/5e- UTP/STP-Kabel bieten die beste Performance. Wenn eine LED keine
Verbindung/AktivitƤtī˜anzeigt,ī˜Ć¼berprĆ¼fenī˜Sieī˜dasī˜verbundeneī˜GerƤt.
INSTALLATION
Erī˜wirdī˜empfohlen,ī˜denī˜Switchī˜vorī˜derī˜Nutzungī˜folgendermaƟenī˜aufzustellen:
ā€¢ī˜ aufī˜ebenemī˜Untergrund,ī˜derī˜dasī˜Gewichtī˜desī˜Switchesī˜(undī˜evtl.ī˜andererī˜GegenstƤnde)ī˜
ī˜ trƤgt
ā€¢ī˜ mitī˜mindestensī˜25ī˜mmī˜Abstandī˜zuī˜allenī˜Seitenī˜fĆ¼rī˜angemessenenī˜Luftdurchsatz
ā€¢ī˜ fernī˜vonī˜anderenī˜ĆœbertragungsgerƤtenī˜wieī˜Radios,ī˜BreitbandverstƤrker,ī˜etc.
ā€¢ī˜ nichtī˜inī˜feuchtenī˜Umgebungenī˜
ā€¢ī˜ max.ī˜100ī˜mī˜vomī˜zuī˜verbindendenī˜NetzwerkgerƤtī˜entfernt
LED Status Bedeutung
PWRī˜ Anī˜ GerƤtī˜wirdī˜mitī˜Stromī˜versorgt
ī˜ Ausī˜ Stromanschlussī˜prĆ¼fen/GerƤtī˜einschalten
LNK/ACT An Verbindung ist hergestellt
Blinkend Verbindung ist hergestellt, DatenĆ¼bertragung
Aus Verbindung ist nicht hergestellt
PWR LINK/ACT
1 2 543
