Important: Read before use. • Importante: Leer antes de usar.
intellinetnetwork.com
4-Port Gigabit Ethernet
Industrial Switch with 2 SFP
Ports Instructions
Model 508247 (IIS-4G02)
2
The Intellinet 4-Port Gigabit Ethernet Industrial Switch with 2 SFP Ports offers an
array of time-saving, cost-effective features while providing superior network
throughput. No configuration is required and installation is plug and play.
For specifications, visit intelllinetnetwork.com/barcode/508247.
Features
• IP40 slim-type metal housing to withstand harsh industrial conditions
• Wide operating temperature: -40 – 75°C (-40 – 167°F)
• Option for DIN-rail installation
• Two small form-factor pluggable GBIC module slots (SFP)
• Two redundant DC inputs (12 – 48 V) with I/O terminal block
With a backplane speed of 12 Gbps, plenty of performance is available for
your computers, servers and other networking devices. Each of the ports
automatically senses the link speed of the connected network device and adjusts
to 10, 100 or 1000 Mbps for compatibility and maximum performance.
Front Panel
LED Color Status Status Description
PWR Green On Power on
Off Power off
Ports
1 – 4 /
SFP
1 & 2
Green
On Valid port connection
Blinking Sending or receiving data
Off No link established
English
Instructions 4-Port Gigabit Ethernet Industrial Switch with 2 SFP Ports
3
Power

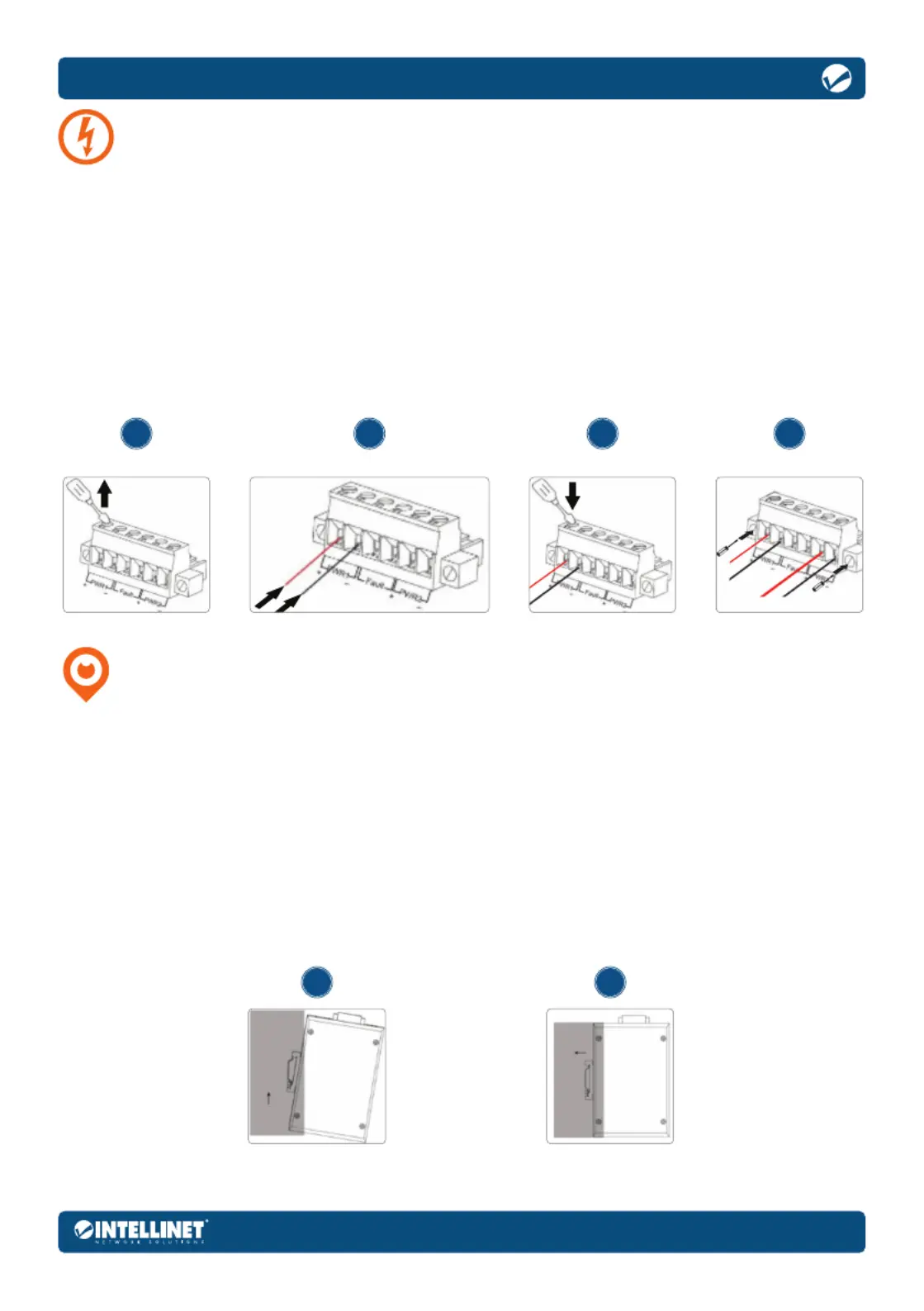

Terminal Block Installation
NOTE: Ensure all power is off/disconnected before beginning!
1 Loosen appropriate screws.
2 Insert bare power-supply wires into appropriate terminal slots (positive
wire into positive slot; negative wire into negative slot).
3 Tighten appropriate screws to secure wires. (If desired,
repeat steps 1 – 3 on second input pair.)
4 Install block into the device and tighten screws.
Placement
Desktop Installation
Prior to use, place/position the switch:
• on a level surface with at least 25 mm (approx. 1”) of clearance for ventilation
• away from sources of electrical noise: radios, transmitters, broadband amplifiers
within 100 m (approx. 328’) of network devices it’s to be connected to.
DIN-Rail Installation
1 With DIN-rail bracket attached to device with screws, angle bracket onto DIN rail.
2 Push device in till it clicks into place.
1 2 3 4
1 2
Instructions
English
4-Port Gigabit Ethernet Industrial Switch with 2 SFP Ports

Product Specifications

Brand: Intellinet
Category: Not categorized
Model: 508247
