Impact Octacool-6 Manual
Read below đź“– the manual in Italian for Impact Octacool-6 (16 pages) in the Lamp category. This guide has been helpful for 7 people and has been rated 4.5 stars on average by 2 users
Page 1/16

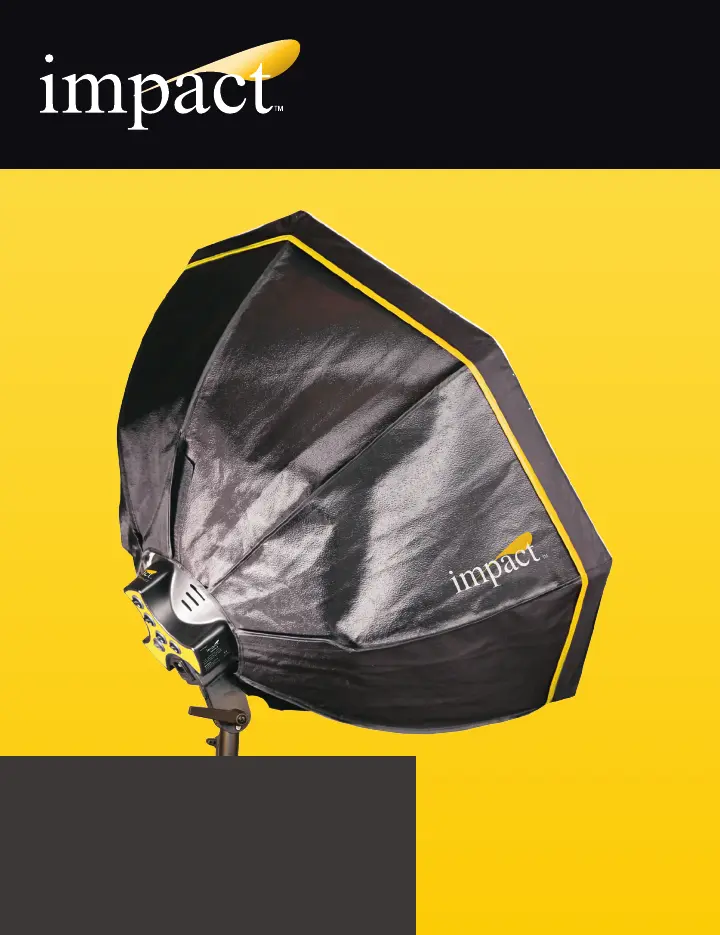

OctaCool Fluorescent Light
INSTRUCTIONS
Congratulations on your purchase of the Impact OctaCool Fluorescent Light Kit.
Enjoy the many benets of a continuous uorescent light, such as less power
used than typical ash units, cooler operation, cheaper replacement lamps, and
“what you see is what you get” lighting as there are no surprises as to how the
light will fall. Please read these operating instructions and safety precautions
before operating this equipment.
Features
• Includes a 29.5˝ OctaCool softbox that provides a soft, uniform, diffused light
• Noiseless operation allows clear audio for video productions
• Cool output allows heat-sensitive subjects to be photographed up close with ease
• 28W screw-in uorescent lamps with a life expectancy of 6000-8000 hours*
What’s Included
• OctaCool 6- or 9-light head
• 6 or 9 28W screw-in uorescent lamps (daylight balanced 5000°-5500°K)
• 29.5˝ (75 cm) OctaCool Softbox
• 8 tension rods
• Internal diffusion bafe
• OctaCool softbox diffuser
• 120V AC power cord
Power Requirements
This light is designed for use with 110/120V AC power only, and is supplied with a 3-prong,
grounded plug. Do not attempt to defeat this safety feature. If necessary, use only grounded
extension cords rated for 10 amps or greater.
Caution
There are no user-serviceable parts inside the unit. Only qualied service engineers should
access the inside of the case (Danger – high voltage parts inside). If any of the lamps become
cracked or damaged in any way, they should be replaced immediately. Do not use the light unit
in an environment where it is likely to come in contact with moisture or ammable vapors. Turn
the power off and unplug the power cord when the unit is not in use. Always remove the lamps
when transporting the unit.
*Service life depends upon many conditions. Individual results may vary.
1
The Impact OctaCool Fluorescent
Light comes in 6-light and 9-light
models. The illustrations in this
guide show a 9-light model, but
the 6-light model is assembled the
same way.
Place the OctaCool light head face
up on a at surface.
Assembly
1
2
3
Place the OctaCool softbox around
the light head. It will take shape with
the following steps.
Insert the rst tension rod in any of
the eight pockets at the outer edge
of the OctaCool softbox.
Product Specifications
| Brand: | Impact |
| Category: | Lamp |
| Model: | Octacool-6 |
