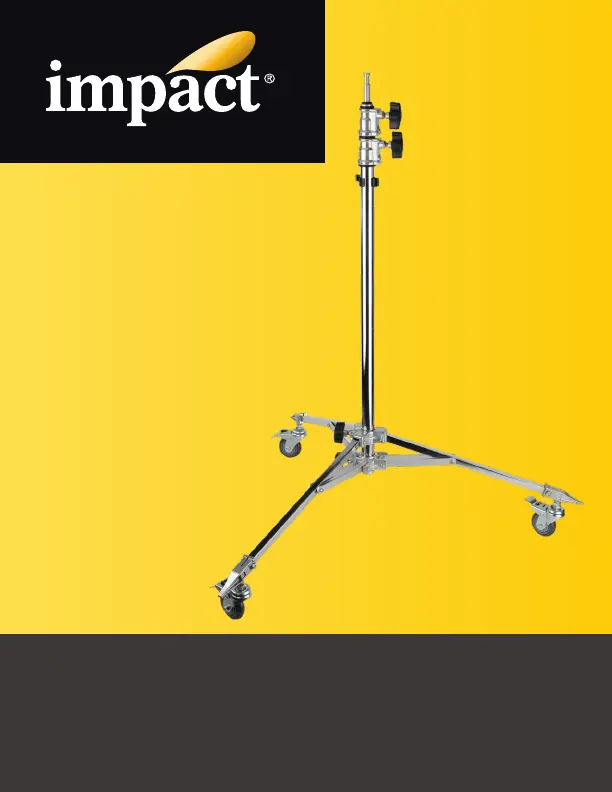

LSP-SW10S
9.5 ft. Steel Roller with Brake Wheels
• 9.5 Ft. Steel roller
• Locking wheel assembly
• Hex bolts (×3)
• Hex nuts (×3)
• Cable clip
• M8 hex key
1. Fit the locking wheel
assembly over the end of the
leg, so that the wheel faces
inward, and the holes are
aligned.
2. Insert the hex bolt completely
through the circular recess of
the wheel assembly until it
comes out of the other side.
Screw the hex nut onto the
opposite end of the bolt.
3. Tighten the hex bolt with the
included M8 hex key until
secure.
Contents
Attaching the wheels to the stand
1
2
3
Specifications
Construction Chrome-plated steel column and legs, aluminum alloy risers
Maximum Load 27 lb. (12.25 kg)
Minimum Height 4 ft. (1.2 m)
Maximum Height 9.5 ft. (2.9 m)
Closed Length 3.9 ft. (1.2 m)
Footprint Diameter 3.3 ft. (1 m)
Riser 2 risers, 3 sections
Diameter Column: 1.4 in. (35 mm)
Riser: 1.2 in. (30 mm)
1 in. (25 mm)
Leg Design 0.79 in. (20 mm) square
Attachment Size 5/8 in. (16 mm) baby stud
Air Cushioned No
Weight 13 lb. (5.9 kg)
