Imarflex IGM-1000 Manual
Imarflex
Grill plate
IGM-1000
Read below 📖 the manual in Italian for Imarflex IGM-1000 (7 pages) in the Grill plate category. This guide has been helpful for 7 people and has been rated 4.5 stars on average by 2 users
Page 1/7
SPECIFICATION
MODEL NO. : IGM- 1000
RATED VOLTAGE : 230Va.c. 60Hz
POWER CONSUMPTION : 2200 Watts
IMPORTANT SAFEGUARDS
1. Read all instructions thoroughly.
2. Before using the unit, check if the voltage indicated corresponds with the electric outlet (230Va.c.).
3. Do not use two-way socket with another appliance. Plug the appliance only in on outlet as mentioned on the rating
plate and only plus it into an earthed, three-pin socket.
4. The installation of a faulty current protective device with a rated breaking current oers you additional safety by
ensuring that 30A will not be exceeded in the house installation.
5. Do not use any appliance with a damaged cord or plug. If the cord is damaged, it must be replaced with the same
type and size or bring the unit to the nearest Imarex authorized service center.
6. Do not place the unit near gas stove, electric burner or in a heated oven or even near the water contained in bath-
tubs, washbasins or other receptacles neither expose it to rain or other humidity.
7. Close supervision is necessary when the appliance is used by or near children. Do not allow power cable to hang
down within easy reach. Keep children away from packing material, e.g., plastic bags.
8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliances by a person responsible for their safety.
9. Do not allow cord to touch hot surface of the unit.
10. Unplug the unit: (a) in case of faults during use, (b) before cleaning or moving the appliance from place to place
and (c) after use.
11. Never unplug the unit by pulling the cord, use the plug. Never immerse the power cord or the thermostat plug in
water or any other liquid.
12. Do not use the appliance without the grease collecting cup or the base. Never cover the grill plate with aluminum
foil or trays (this might damage the non-stick coating).
13. Make sure that the unit is installed correctly before using. (First of all if using the trolley).
14. Always switch o the appliance before unplugging from the convenience outlet. Before removing attachments or
cleaning the grill, allow to cool completely.
15. Only use the appliance when it is placed on a stable and dry surface. Place the appliance on a surface that is
resistant to heat. Keep the electric grill at least 10 cm from any walls when in operation. Do not leave the
appliance unattended.
16. Do not use this unit other than its intended use.
17. Allow the unit to cool completely before removing attachments or cleaning the grill.
18. Do not use this unit other than its intended use.
19. Save this instruction manual for future reference.
NOTE: The grill plate remains very hot even after it is turned o, please handle with care all the time. Do not touch
any hot surfaces and take care when handling the appliance after use. Always make sure that the grill plate does
not touch the heating element!

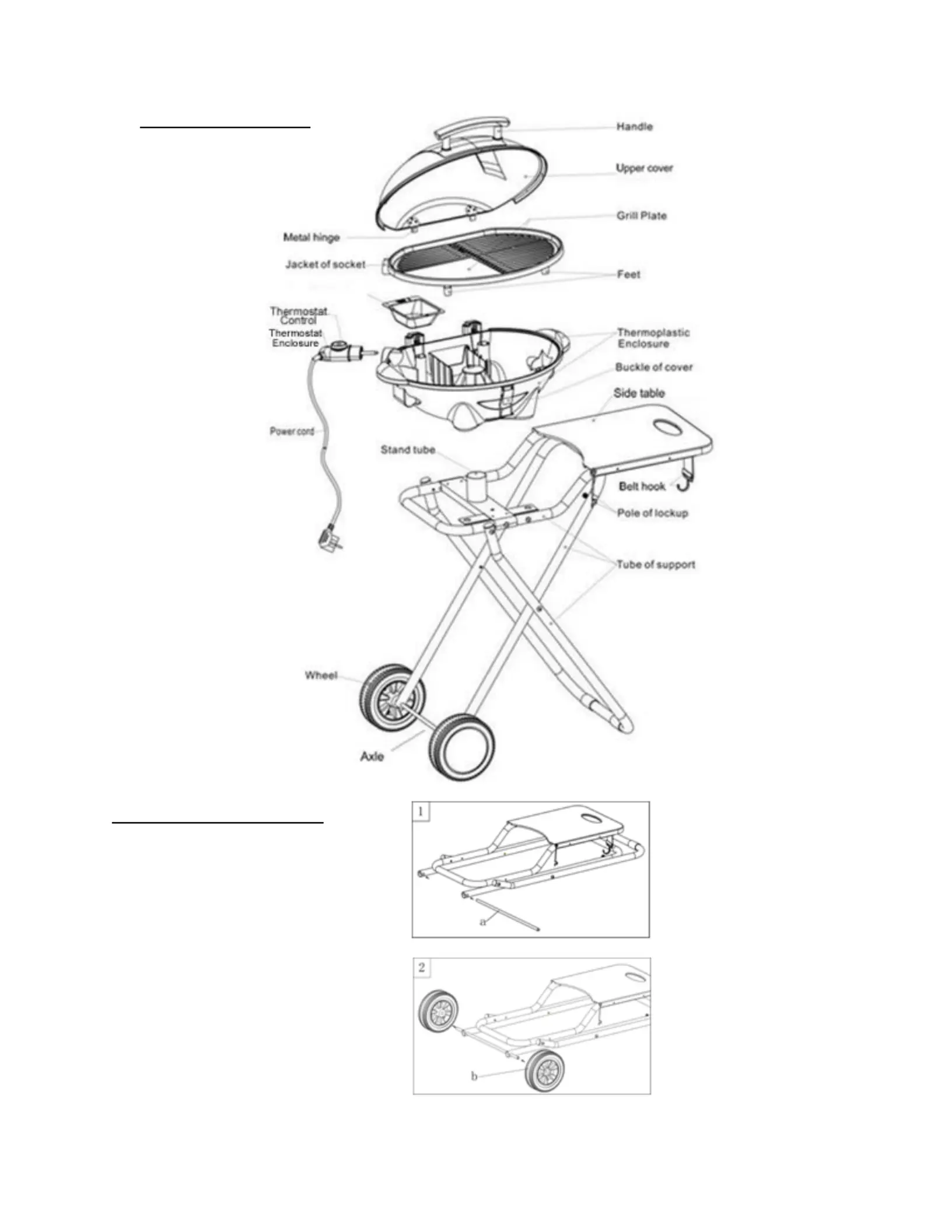

DESCRIPTION OF PARTS
INSTALLATION INSTRUCTIONS
1. Take the trolley frame and accessories out
from the packing box. Please make sure that
the trolley frame is placed on a dry, at and
stable surface. Then let the wheel axle (a) pass
through two holes which are at the end side of
the tube.
2. Attach the wheels (b) with the two sides of
t axle (a) respectively. he
Product Specifications
| Brand: | Imarflex |
| Category: | Grill plate |
| Model: | IGM-1000 |
