Page 1/12
Thanks for choosing us!

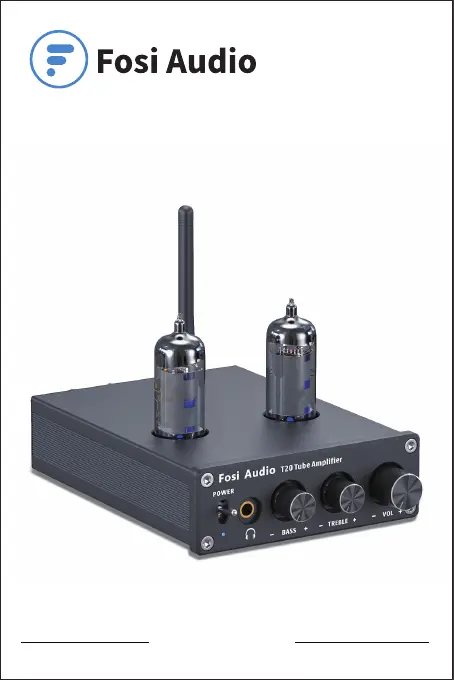

Fosi Audio T20 User Manual
Product Specifications
Thanks again so much for your purchasing! This is a
creative audio amplifier for you, it combines the beauty of
traditional vacuum tube and the power of digital amplifier. It
has BASS & Treble adjustable function, Bluetooth apt-X
connection, support audio output through passive speaker
or 3.5mm headphone. And, the vacuum tube is also replace-
able as you like, it is a fantastic amplifier that suit for your
personal PC desk, book room, or for your home theater in
your living room. Bring joy and happiness to your smarter
life!
THD:
SNR:
Max Power Output:
≤ 0.04%
≥ 99dB
Power Adapter: 24V/4.5A
50W x 2@4Ω
Frequency Range: 20Hz - 20kHz (±1 dB)
Input Mode: Bluetooth and AUX
Bluetooth Transmission
Distance:
Up to 50ft(15m)
Bluetooth Transmission
Distance:
Up to 50ft(15m)
Amplifier Chip: TPA3116
Input Sensitivity: ≤ 280mV
DC Input Range: 12V - 24V
Terminating Impedance: 2 Ω - 8 Ω
Product Overview & Control
Functions
Power Switch
Indicator Light Bass Control Treble Control
Volume Control
3.5mm
Headphone Output
Front Panel
Back Panel
BT/AUX Mode Switch
Audio Input Speaker Output
DC Input
Bluetooth Antenna
Interface
Bluetooth
Antenna
Product Specifications
| Brand: | Fosi Audio |
| Category: | Headphone amplifier |
| Model: | T20 |
