Page 1/12
Thanks for choosing us!
Fosi Audio DAC-Q4 User Manual
Product Specifications
The Q4 is a compact mini digital/analogue audio converter
adapter with USB, optical and coaxial digital inputs, a classic
3.5mm headphone jack and RCA outputs, suitable for most
home audio systems. With bass and treble controls, it can be
used as a preamplifier or volume control for PC/MAC/Computer.
Fosi Audio Q4 ensures exquisite musicality, accurate and
realistic phasing, and reproduction of the original sound!
Output Type: 3.5mm Headphone, RCA
Chipset: SA9023+CS8412+
97220+NE5532
Optical/Coaxial
Sampling Rate:
24Bit/192kHz
Input Type: USB, Optical, Coaxial
USB Sampling Rate: 24Bit/96kHz
Headphone Impedance: 16-200Ω
RCA Output Level: 2.3V
Power Supply: 5V
THD: ≤0.01%
SNR: ≥105dB
Size (L*W*H): 73.5*98*33MM
Net Weight: 0.4kg

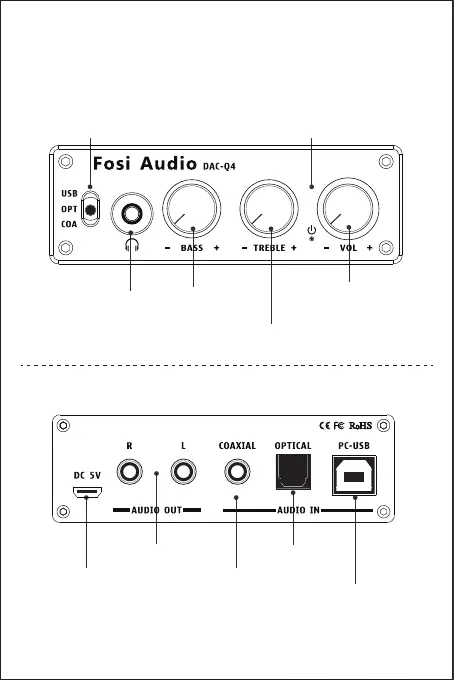

Product Overview & Control
Functions
3.5mm
Headphone
Output
Bass Control
Treble Control
Multi-function knob
:
1.Power Switch
2.Volume Switch
USB/Optical/
Coaxial Input Select
Power Indicator
Light
DC 5V Power
Input PC-USB Input
Optical
Input
Coaxial
Input
Audio Out
Product Specifications
| Brand: | Fosi Audio |
| Category: | Headphone amplifier |
| Model: | Q4 |
