Page 1/14
Thanks for choosing us!

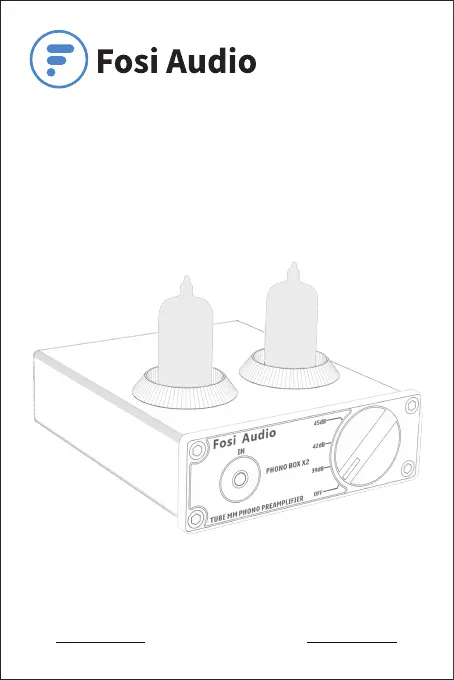

Fosi Audio BOX X2 User Manual
Product Specifications
Fosi Audio BOX X2 is a Hifi tube phono preamp for MM turntable
that features the Multi-function Knob which contains Power Switch
and Gain Adjustment Switch with DC 12V power supply. The BOX
X2 supports MM turntable input, 3.5mm AUX input and RCA line
output for powered speakers or amplifiers for your home audio
system. Compact ultra-low noise phono turntable preamp that
converts phono signals to line level signals, which will provide you
with serious sound performance.
Input Interface:
Output Interface:
MM turntable input,
3.5mm AUX input,
12V DC input
RCA output
Product Adapter Input
Voltage Range:
AC 100V - 240V
DC Input Voltage: 12V
Output Voltage Level: 600 Mv @3mV 1kHz
SNR: ≥ 98dB
THD: ≤0.1%
Frequency Response: Standard RIAA
Product Weight: 0.66 lb/300g
Output: Active(powered) speakers,
Amplifier
Product Dimensions: 4.66 inch*3.85 inch*1.29 inch
(L118.5*W98*H33MM)
Product Overview & Control
Functions
3.5mm AUX Input Multi-function Knob:
Power Switch/Gain
Adjustments Switch
DC Input Grounding Post
RCA Output MM Turntable Input
