Page 1/16

Please read instructions carefully before installing

Veuillez lire les instructions attentivement avant d’installer le produit

Lea cuidadosamente las instrucciones antes de instalar

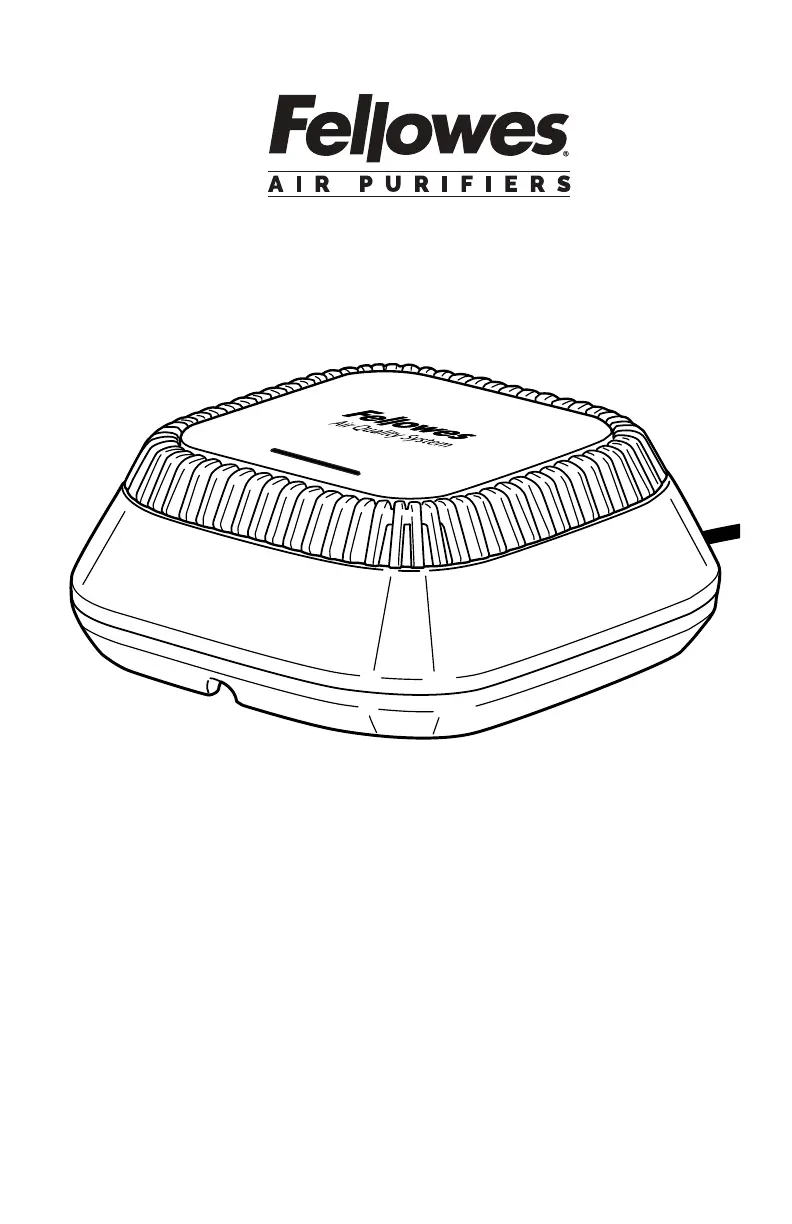

Array Signal Sensor Puck

Capteur de signaux réseau

Disco de sensor de señales de la matriz

INSTALLATION GUIDE AND OWNER’S MANUAL

GUIDE D’INSTALLATION ET MANUEL DU PROPRIÉTAIRE

GUÍA DE INSTALACIÓN Y MANUAL DEL PROPIETARIO

TOOLS REQUIRED FOR INSTALLATION (NOT INCLUDED)

PARTS PROVIDED FOR INSTALLATION

PRODUCT SPECIFICATIONS

• # 8 screws (2X)

• Drywall anchors (2X)

• AC Adapter (1X)

• Electric drill, ” drill bit¼

• # 2 Phillips screw driver

• Level

• Measuring tape

ENGLISH

WARNING: Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire:

IMPORTANT CAUTIONS AND INSTRUCTIONS FOR USING PRODUCT:

*For a copy of the manual please visit fellowes.com

Please read and save these instructions. Read carefully before attempting to assemble, install, operate, or maintain this product.

Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury

and/or property damage. Retain instructions for future use.

IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!

Dimensions 1.7 x 4.2 x 4.2 in 43 x 107 x 107 mm

Weight of System 0.4 lbs 0.2 kg

AC Input 100-240V 50/60Hz 1.00A

DC Input 5V 4.00A

Power 20W

• Use this unit only in the manner intended by the

manufacturer. If you have questions, contact the

manufacturer.

• This product is not serviceable. DO NOT attempt to open,

repair, or modify this product. Doing so could present the

risk of electrical shock or other hazard.

• Only use the power cord that was supplied with the

product. Use of unauthorized power cords could result in

electrical shock or product damage.

• Do not use if the power cord is damaged.

• Do not bend the power cable excessively or place heavy

object on top of it.

• When drilling into mounting surface, do not damage

electrical wiring or other hidden utilities.

• Use only the electrical power (voltage and frequency),

specified for this product.

• Do not obstruct the air inlet of the product.

• Do not spray aerosols on, or into the unit.

• Do not use detergent to clean the unit.

• Do not insert liquids or foreign objects into the air intake.

• Do not install this product near heat-generating

equipment.

• Do not use the product near flammable substances or a

gas leak.

• Do not use the unit where it is humid or where the unit

may get wet.

• Do not alter the length of the power cord.

• This product is for indoor use only.

OPTIMAL PLACEMENT

To ensure the best signal strength, we strongly recommend that you avoid installing the sensor puck on or near the following:

• Large metal objects

• Electrical equipment

• Sources of extreme moisture

• Metal stud framing

• Corners

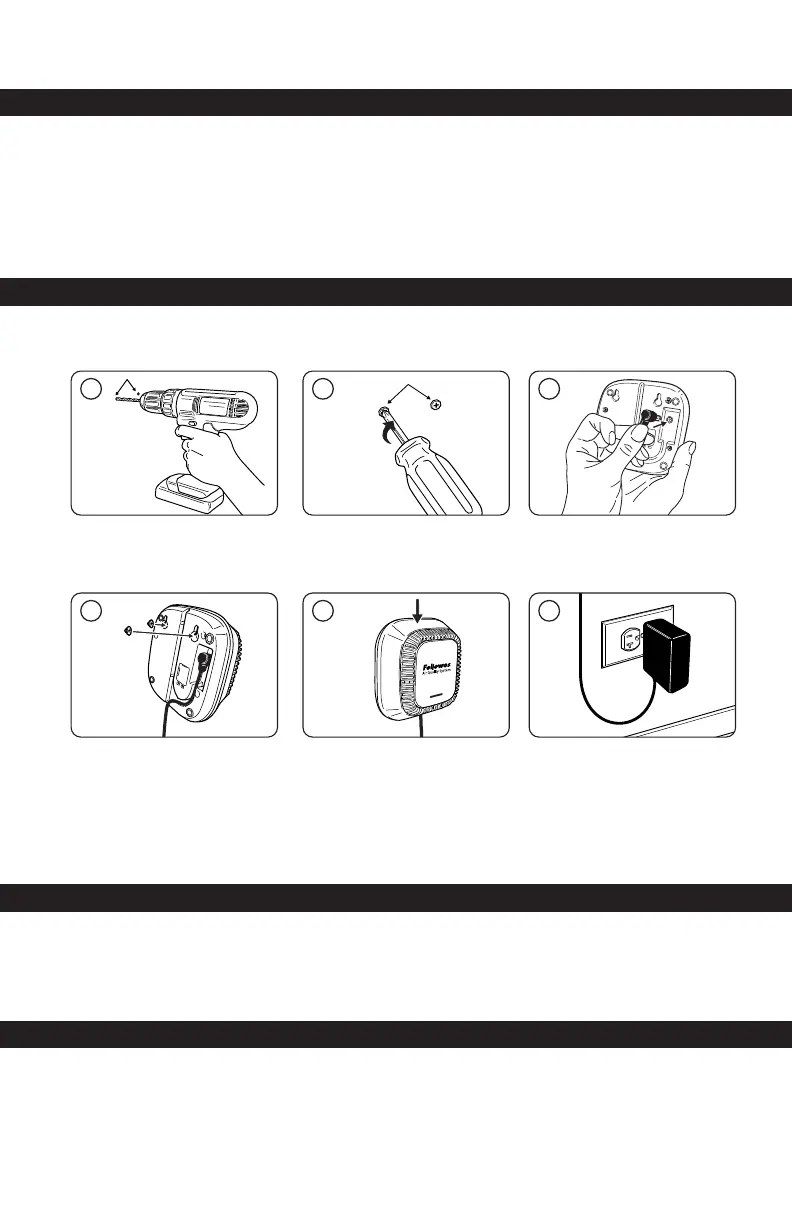

WALL MOUNTING INSTRUCTIONS

Ensure that there is a working outlet with the correct electrical specifications within reach of the installation location. Otherwise

have a qualified electrician install one. Remove Sensor from packaging and record “Web ID” from back for later onboarding.

Determine location for installation. Mark

2 holes 2” apart horizontally, ensuring

they are level. Drill holes.

Align mounting slots with screws.

Maneuver screws into mounting slots and

gently press unit until flat against wall.

Connect power cord to sensor puck and

route cord along guide.

Secure wall plug into outlet. Product will

turn on. After approximately 40 to 60

seconds, the LED will breathe green. After

30s, the LED will show blue for good air

quality, amber for fair air quality, and red

for poor air quality.

Fasten mounting screws into stud or

drywall anchor holes with screwdriver.

Ensure screws are fully seated in

mounting slots by gently moving the

product downward until the slot contacts

the screws.

WIRELESS CONNECTION - GETTING STARTED

MAINTENANCE AND CLEANING

This product has additional features that are only available when using the online dashboard.

Please allow 15 to 20 minutes after powering on for unit to connect to the dashboard.

To get started, please visit arrayviewpoint.fellowes.com

If you have questions or need help along the way, please contact us at 1-800-955-0959

If noticeable dust buildup then use brush attachment to vacuum away any dust.

Do not use canned air as it may damage the internals of the device.

Note: for desktop installation, only steps 3 and 6 are required.
