Fellowes Array AW2 Manual
Fellowes
Air purifier
Array AW2
Read below 📖 the manual in Italian for Fellowes Array AW2 (16 pages) in the Air purifier category. This guide has been helpful for 7 people and has been rated 4.5 stars on average by 2 users
Page 1/16
PLEASE READ THESE INSTRUCTIONS BEFORE USE.
DO NOT DISCARD: KEEP FOR FUTURE REFERENCE.
VEUILLEZ LIRE CES INSTRUCTIONS AVANT D’UTILISER L’APPAREIL.
NE PAS JETER : CONSERVER AFIN DE CONSULTER LES DIRECTIVES
ULTÉRIEUREMENT, EN CAS DE BESOIN.
LEA ESTAS INSTRUCCIONES ANTES DEL USO.
NO LAS DESECHE: CONSÉRVELAS PARA REFERENCIA FUTURA.

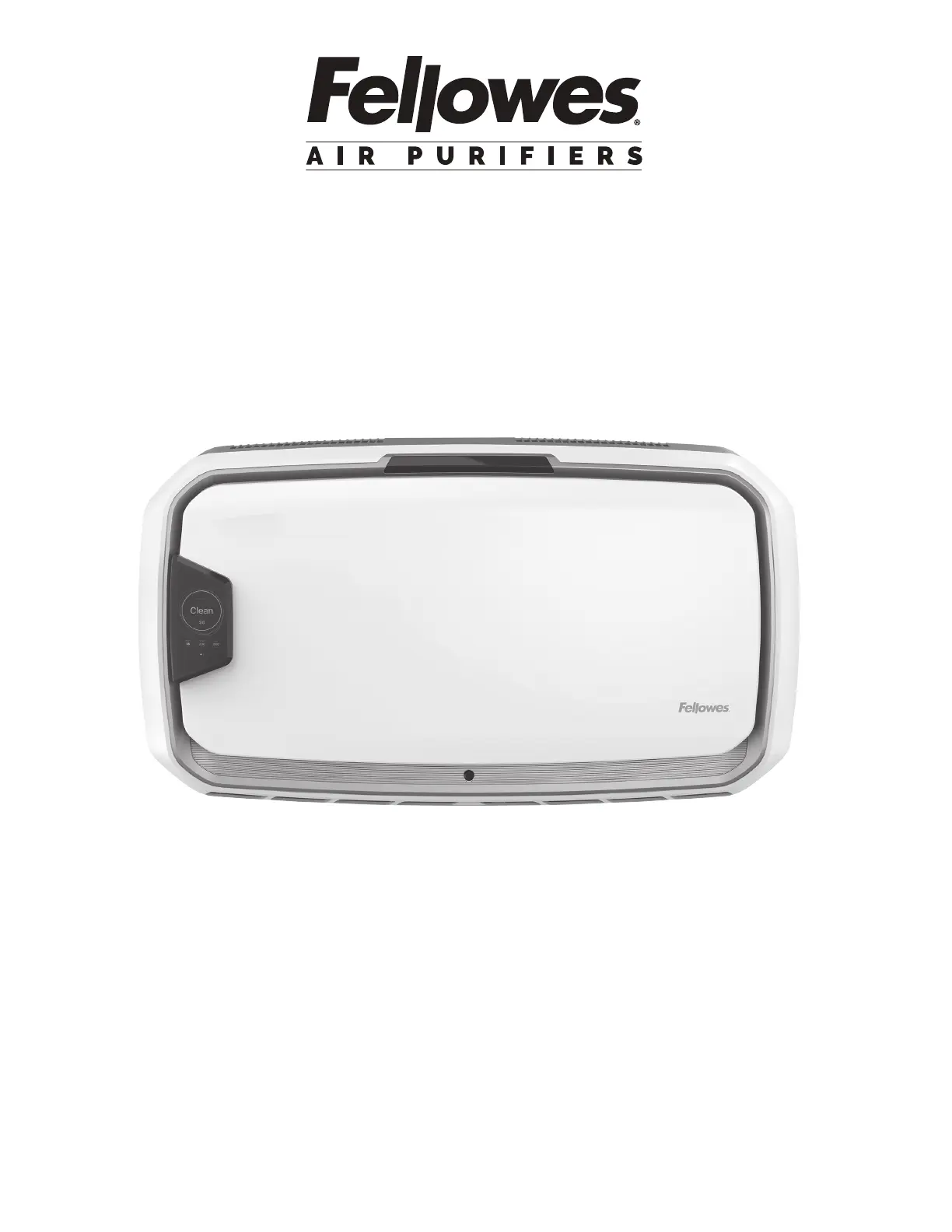

Array AW2
Wall Mounted Air Purier
Puricateur d’air mural
Puricador de aire montado en la pared
2
ENGLISH
• Do not use this air purifier as sole protection against harmful pollutants.
• Do not repair or modify the unit unless specifically recommended in this
manual. Only an authorized repair technician should disassemble, repair,
or modify this product.
• Installation work and electrical wiring must be done by qualified
person(s). All electrical installation work must be conducted and carried
out in accordance with all federal, state, and local codes and regulations.
• Do not use if the power cord is damaged. If the power cord is damaged, it
must be replaced by the manufacturer or a qualified technician.
• Do not bend the power cable excessively or place heavy object on top
of it.
• When drilling into mounting surface, do not damage electrical wiring or
other hidden utilities.
• The product must be grounded.
• Use only the electrical power (voltage and frequency) specified for the
model air purifier being installed.
• Do not obstruct the air inlet or air outlet of the air purifier.
• Ensure filter bags are removed and filters are correctly installed before
turning on. Do not operate this product without filters.
• Do not wash and reuse any of the filters.
• Do not use attachments or filters other than Fellowes brand, as unit will not
function.
• Do not spray aerosols on, or into the unit.
• Do not use detergent to clean the unit.
• Do not insert fingers, liquids, or foreign objects into the air intake
or outlet.
• Do not use the unit for anything other than air purification.
• Do not install this product near heat-generating equipment.
• This product will not remove carbon monoxide emitted from heating
appliances or other sources.
• Do not use the product near flammable substances or a gas leak.
• Do not use the unit where it is humid or where the unit may get wet.
• Do not alter the length of the power cord.
• Not suitable for use with solid state speed controls.
• This product is for indoor use only.
• Change your filters at the recommended intervals to avoid particle and
dust buildup.
• This device contains licence-exempt transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that
may cause undesired operation of the device
• WARNING: To reduce the risk of fire, electric shock, or injury to
persons, do not use replacement parts that have not been recommended by
the manufacturer (e.g. parts made at home using a 3D printer).
IMPORTANT CAUTIONS AND INSTRUCTIONS FOR USING AIR PURIFIER:
*For a copy of the manual please visit www.fellowes.com
PLEASE READ AND SAVE THESE INSTRUCTIONS. Read carefully before attempting to assemble, install, operate or maintain this product. Protect
yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage. Retain
instructions for future reference.
IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
b) Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on
accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3
PACKAGING CONTENTS
• Air Purifier (1)
• 2-in-1 Hybrid Filter (2)
• Pre-Filter (2)
• Keys for Locking Front Panel (2)
• Registration information
• Quick Start Guide
• User Manual
Dimensions 19.5 X 34.8 X 9.5 in 495 X 884 X 241 mm
Weight of System 35.0 lbs 15.9
Power Requirements AC 120V 60Hz 2.5A
Watts (5 fan speeds) 200W
PRODUCT SPECIFICATIONS
DISPLAY PANEL
HEPA FILTER – Press for 2s: reset the life counter of the HEPA filter.
Light (red): indicates filter life has reached 100%.
CARBON FILTER – Press for 2s: reset the life counter of the carbon filter.
Light (red): indicates filter life has reached 100%.
WIRELESS STATUS/RESET – Press for 10s: connection reset.
GREEN = Fully Connected & Paired
YELLOW = Connection Available
RED = Not Connected
RED (Blink) = Connection Error
BLUE = Reset Initialized
BLUE (Blink) = Reset Confirmed
OFF = Connection Disabled
AIR QUALITY INDICATOR –
GREEN: sensors calibrating
BLUE: air quality Good
AMBER: air quality Fair
RED: air quality Poor
WHITE: door open
PURPLE: unit ping from cloud
QUIET – Press: sets the unit to Quiet Mode.
Light: indicates unit is running in Quiet mode, where air quality sensor set fan speed
automatically depending on environment with a max of fan speed 3.
AUTO – Press: sets the unit to Auto mode.
Light: indicates unit is running in Auto mode where air quality sensors set fan speed
automatically depending on environment.
MANUAL – Press: cycle through fan speeds, a beep will be heard. If coming from
Auto mode, will start at lowest fan speed.
Light: indicates fan speed is being controlled manually.
MANUAL INDICATORS – Light: indicates which fan speed is currently
selected in manual mode (1-5).
15
2
6
3
7
8
4
NOTE: after the unit is turned on the “AQ” light will flash for a few minutes while the system self-calibrates.
81 2 3 4 5 6 7
Product Specifications
