E X T Y

Triangle (120°) building module for Astera Helios, Titan and Hyperion.

Aluminium Silver Anodized with (4x) M5 threads and (12x) M4 threads. (2x) M5X10

hex screws with hex key SW4. Wgt: gr. 40, oz. 1,4.

SAFETY: The Exo Skeleton system has been designed to expand the creative potential with Astera

Helios, Titan and Hyperion LED tubes for professional users in the world of entertainment, television

and cinematography. Astera LEDs were not originally designed for heavy use with complex modularity

and it is recommended to carefully evaluate safety in the construction of complex and sophisticated

solutions that require professional support and anchoring systems.

WARNING: Before using the Exo Skeleton system with the Astera LED tubes,

make sure that the two screws are well tightened with a Phillips screwdriver.

This is important for effective and safe use, avoiding wear of the parts in contact.

U S E R M A N U A L

E XO T R E Y

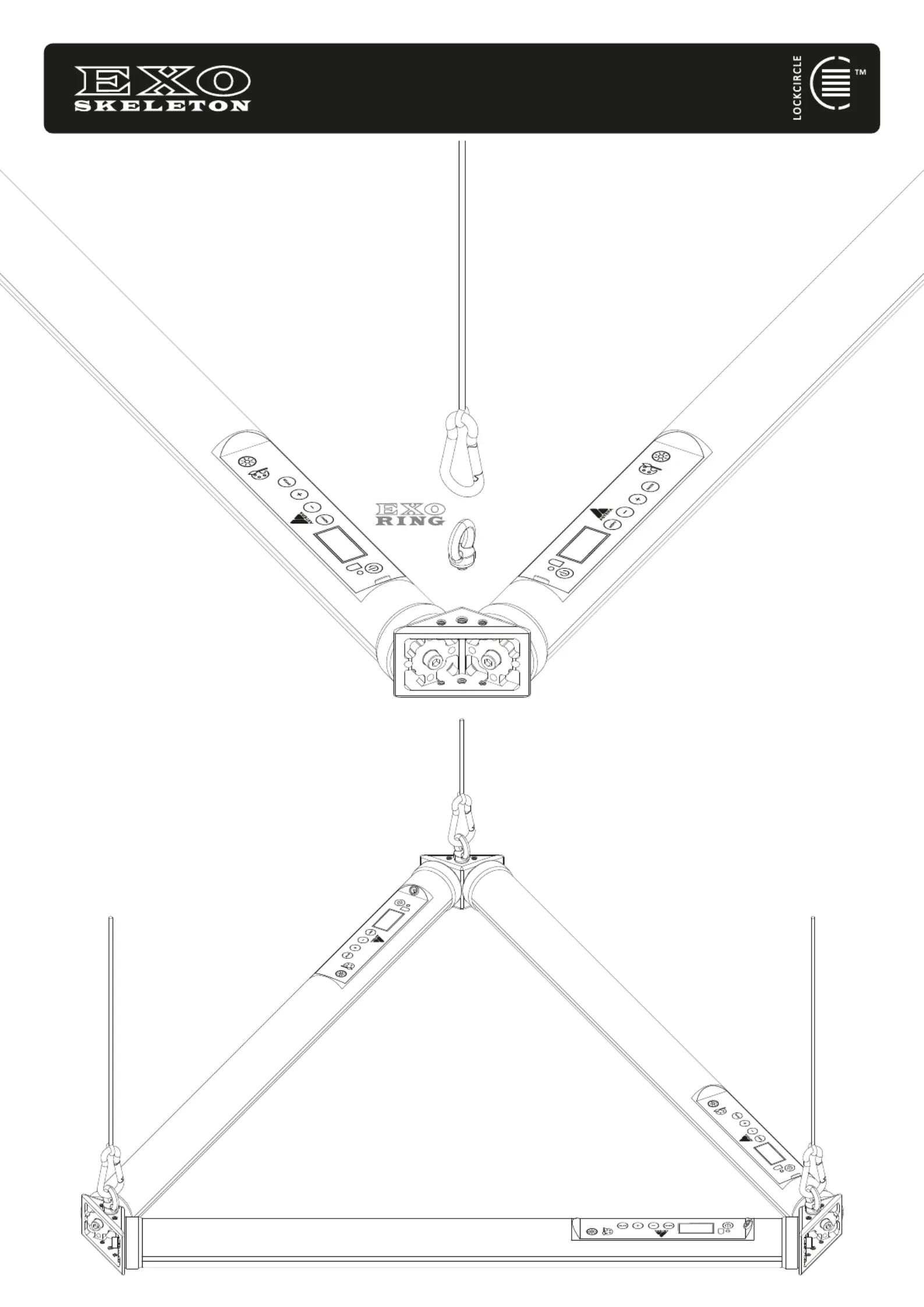

The Exo Trey has been designed to create

bright regular triangles with great impact.

Allows you to build triangles with Helios,

Titan and Hyperion LED tubes and to hang

them at each corner on both sides

to create layers of luminous elements.

U S E R M A N U A L

E XO T R E Y

Hanging threads (for the original

Astera M5 Eye Ring) at each corner

on both sides to create layers

of luminous elements in different sizes

using the three Astera tube sizes.

E X R K

(2x) Mounting plate to connect two Exo Trey modules for special projects. Aluminium

Silver Anodized, (4x) M4X8 hex screws with hex key SW3. Wgt: gr. 25, oz. 0,9.

E X T P
