U S E R M A N U A L
E XO L I N K
Joint Assembly, with adjustable angle, for Astera Helios, Titan and Hyperion.
Aluminium Silver anodized with cork pads and Titanium M5 thread. Wgt: gr. 42, oz. 1,5.
SAFETY: The Exo Skeleton system has been designed to expand the creative potential with Astera
Helios, Titan and Hyperion LED tubes for professional users in the world of entertainment, television
and cinematography. Astera LEDs were not originally designed for heavy use with complex modularity
and it is recommended to carefully evaluate safety in the construction of complex and sophisticated
solutions that require professional support and anchoring systems.
WARNING: Before using the Exo Skeleton system with the Astera LED tubes,
make sure that the two screws are well tightened with a Phillips screwdriver.
This is important for effective and safe use, avoiding wear of the parts in contact.

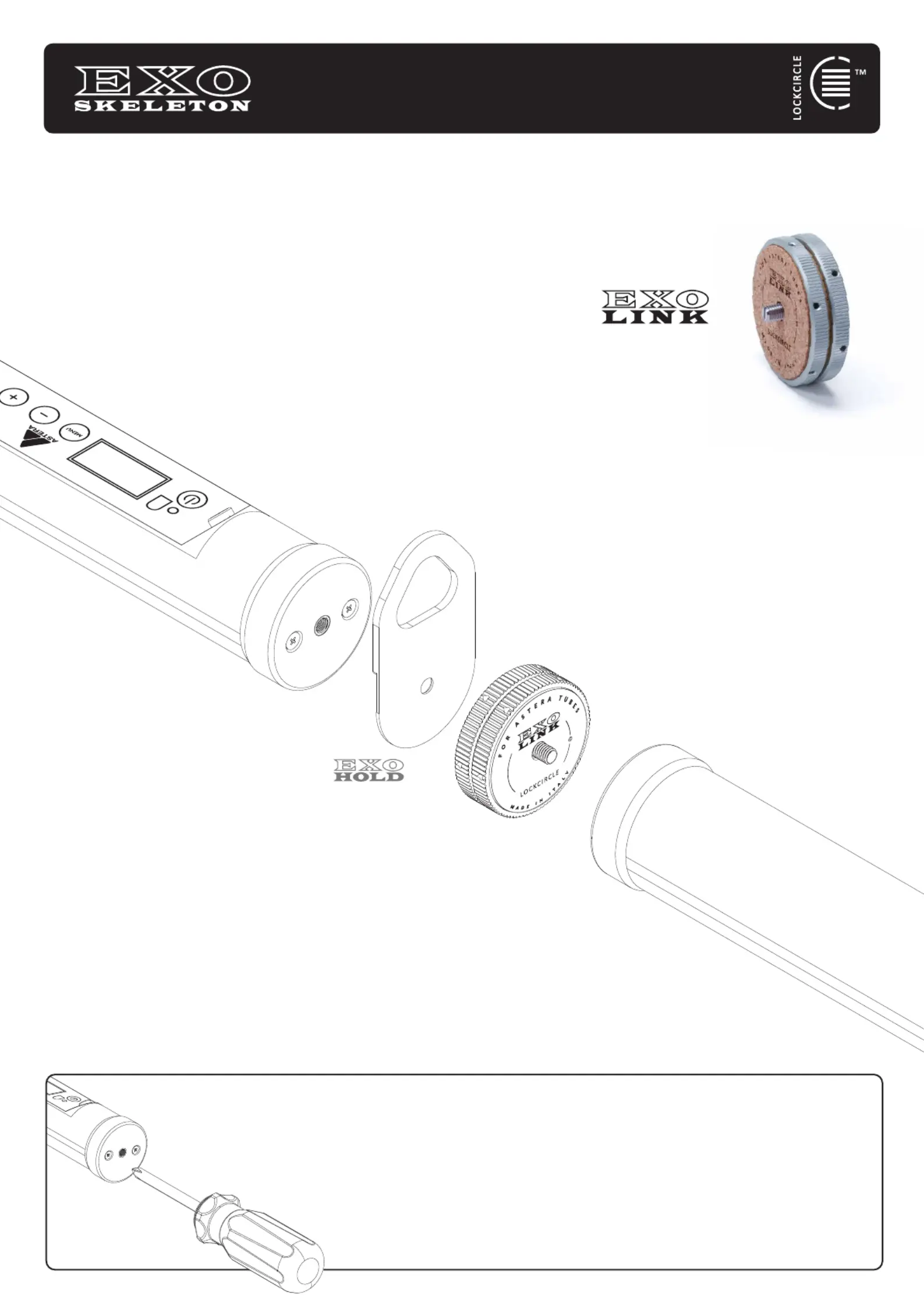

E X L K
The two wheels allow you
to align, the direction of the light emission.
The surface of the locking wheels is covered with cork
to hold the Astera tubes in tension without damaging them.
Exo Link allows you to linearly
connect an infinite number of Astera LED Tubes,
and in combination with the Exo Hold ultra flat
hanging hook you can suspend
precise lines of Astera.
E X H D
U S E R M A N U A L
E XO L I N K
1 2
3 4 6
5

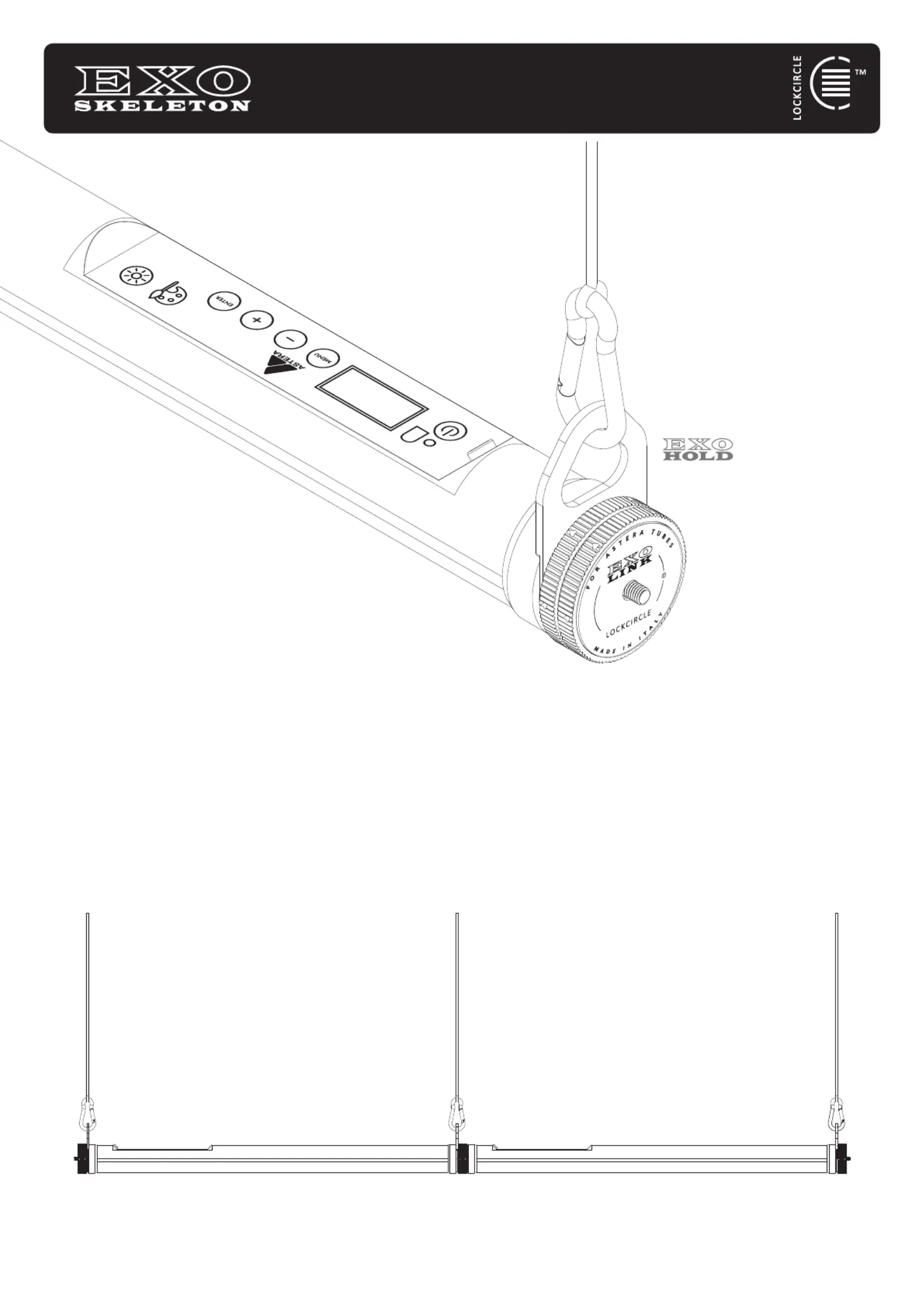

ASSEMBLY INSTRUCTIONS:
It is important to follow the assembly
procedure to avoid damaging the Astera LED tubes:
follow the assembly steps as in the table, first suspending
the anchor cables 1 and 2 then fix the Astera (3 - 4 always with two suspension points)
and then fix the anchor cable 5 and finally mount the Astera on the two anchors 4 and 6.
Never suspend the Astera LED tube on a single anchor point because
it would be seriously damaged.
E X H D
Product Specifications
| Brand: | EXO |
| Category: | Relief |
| Model: | Link |
