Page 1/5
User's Guide
ELPMB80
ELPMB83
Truss Bar Adapter For Frame
V12H006AV0
V12H006AX0
email: info@euromet.com
EM 22629
Safety Precautions
DANGER
• Failure to comply with these safety precautions results in death or serious injury;
• ELECTRICAL SHOCK HAZARD! Always turn o, disconnect, and disengage all power
sources to the projector before servicing;
WARNING
Failure to comply with these safety precautions may result in serious injury.
• At least two qualied people should perform the installation procedure. Personal injury
and/or property damage can result from dropping or mishandling the projector;
• If mounting to ceiling studs, make sure that the mounting screws are anchored into the
center of the ceiling studs. Use of an edge- -edge stud nder is recommended; to
• Be aware of the mounting environment. If drilling and/or cutting into the mounting
surface, always make sure that there are no electrical wires in the wall;
• Do not install near sources of high heat. Do not install on a structure that is prone to
vibration, movement or chance of impact.
Installation

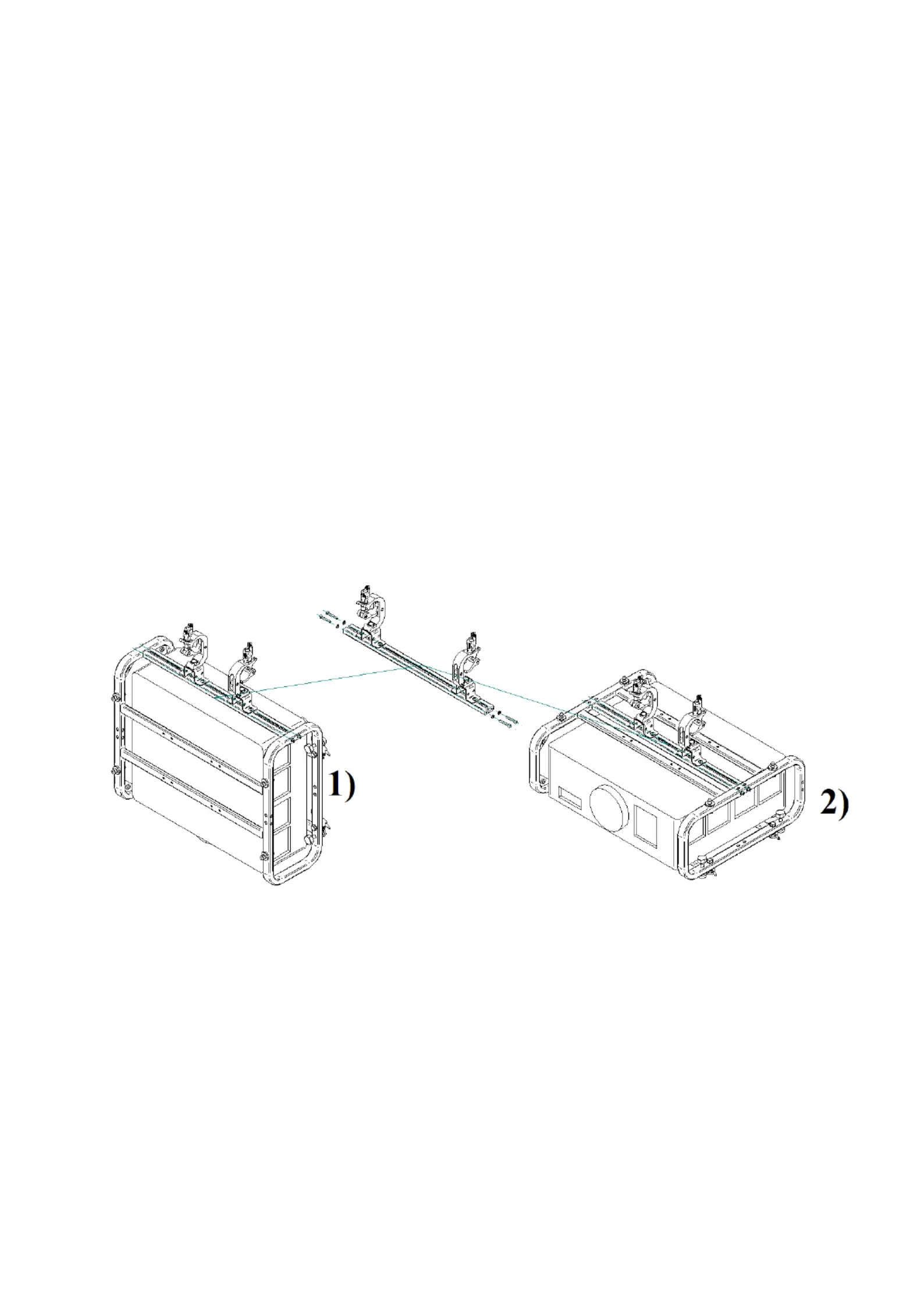

It is an option that is compatible with Matrix and is used to fasten the cage to a truss by
hanging it from the upper or rear side (order the correct bar according to the matrix
possessed).
To fasten the bar (in both cases):
6.1 place the bar so that its thread is coaxial with the (upper or rear)side eyelets located –
on the ring pipe;
6.2 Then, tighten the 4 screws and washers (included in the optional set) until the bar is –
safely fastened.
The 2 Clamps can slide on each other (by loosening the 2 lateral screws on each omega
plate) and can also be rotated to adapt the coupling to any situation.
Product Specifications
| Brand: | Epson |
| Category: | Beamer |
| Model: | ELPMB80 |
