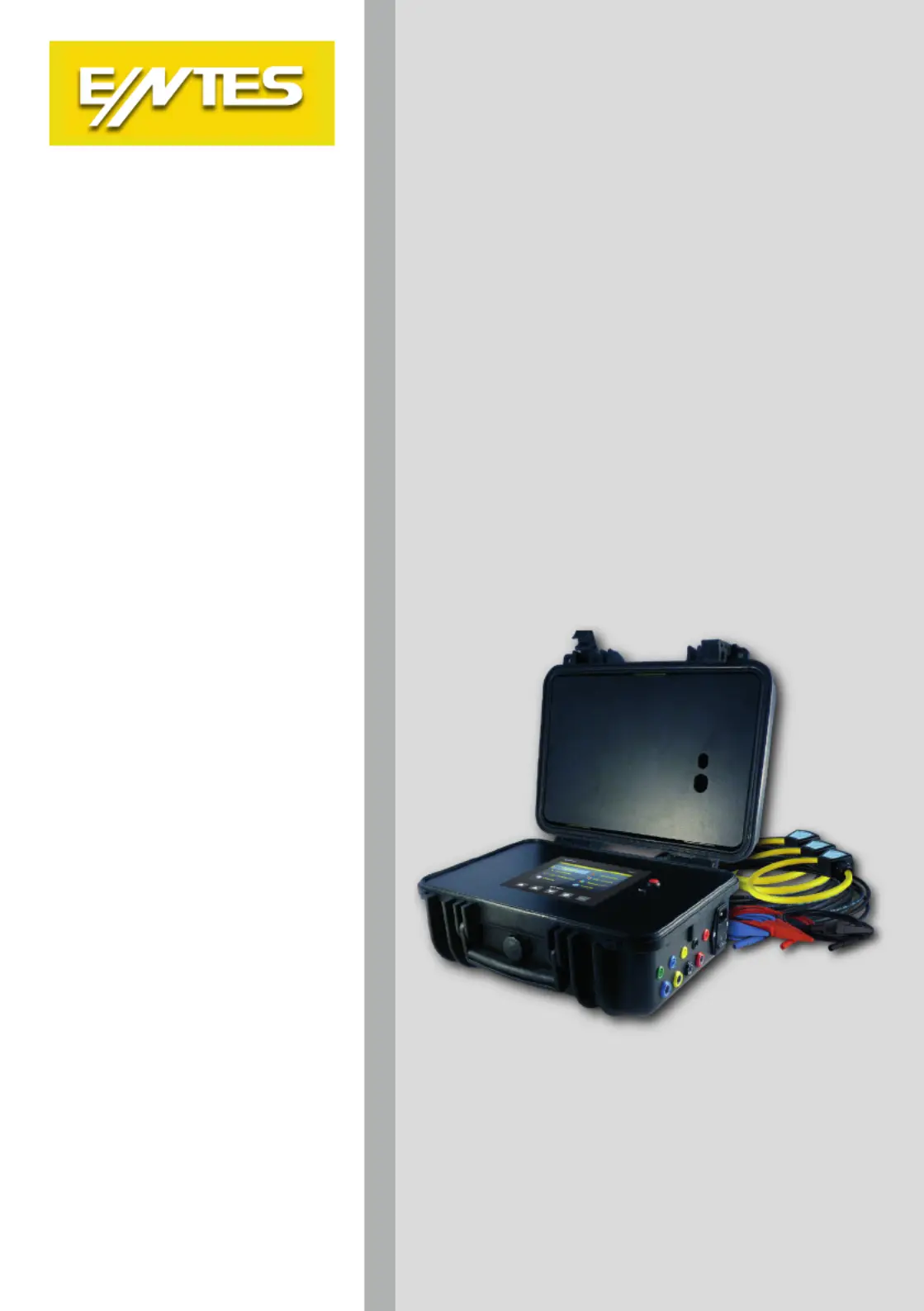

Page 1/22
Portable Class A
Quality Analyzer
www.entes.eu
EMK-10P
2
İçindekiler
1. Introduction .................................................................................................................................................................... 3
2. Safety Instructions ......................................................................................................................................................... 3
3. Packaging Content ........................................................................................................................................................ 3
4. Device Description......................................................................................................................................................... 4
4.1. Front Panel ........................................................................................................................................................... 4
5. Measured Parameters ................................................................................................................................................... 5
6. Connection .................................................................................................................................................................... 6
6.1 Supply Voltage....................................................................................................................................................... 6
6.2. Measuring Input .................................................................................................................................................... 6
6.2.1. Voltage Measuring Inputs .................................................................................................................................. 6
6.2.2 Current Measuring Inputs ................................................................................................................................... 7
6.3 Ethernet ................................................................................................................................................................. 7
6.4 USB 7 .......................................................................................................................................................................
7. Device Settings.............................................................................................................................................................. 8
7.1. Language.............................................................................................................................................................. 8
7.2. Measurement – Main Parameters ........................................................................................................................ 8
7.2.1. Connection Type ............................................................................................................................................... 9
7.2.2. Nominal Voltage ................................................................................................................................................ 10
7.2.3. Nominal Current ................................................................................................................................................ 10
7.2.4. Flicker ................................................................................................................................................................ 10
7.2.5. Averaging .......................................................................................................................................................... 10
7.2.6. Energy ............................................................................................................................................................... 10
7.3. Communication Settings....................................................................................................................................... 11
7.3.1. Ethernet ............................................................................................................................................................. 11
7.3.2. Web Server ........................................................................................................................................................ 11
7.3.3. Modbus TCP ...................................................................................................................................................... 12
7.3.4. FTP Server ........................................................................................................................................................ 12
7.3.5. TCP Converter ................................................................................................................................................... 12
7.4. Analyser ................................................................................................................................................................ 12
7.5. NTP Server / Time Zone .......................................................................................................................................13
7.6. E-mail ................................................................................................................................................................... 13
7.7. Transient ............................................................................................................................................................... 13
7.8. Events................................................................................................................................................................... 15
7.8.1. Voltage Dip ........................................................................................................................................................ 15
7.8.2. Voltage Swell ..................................................................................................................................................... 15
7.8.3. Rapid Voltage Change (RVC) ............................................................................................................................ 16
7.10. Data Storage ...................................................................................................................................................... 17
7.12. Memory Settings................................................................................................................................................. 17
7.13. About .................................................................................................................................................................. 17
8. Operation ....................................................................................................................................................................... 17
8.1.Numeric ................................................................................................................................................................. 17
8.1.1. Flicker ................................................................................................................................................................ 17
8.2. Harmonics ............................................................................................................................................................ 17
8.3. Vectors.................................................................................................................................................................. 18
8.4. Bar Graphs ........................................................................................................................................................... 18
9.5. Scope ................................................................................................................................................................... 18
8.6. Events................................................................................................................................................................... 18
8.6.1. List of Events ..................................................................................................................................................... 19
8.6.2. Rapid Voltage Change (RVC) ............................................................................................................................ 19
8.6.3. List of Transients ............................................................................................................................................... 19
8.6.4. Power Cuts ........................................................................................................................................................ 20
9. Web Interface ................................................................................................................................................................ 20
10. Firmware Update ......................................................................................................................................................... 20
11. Technical Speciîšżcations ............................................................................................................................................... 21
3
1. Introduction
EMK-10P portable Class A quality analyzer is designed for measurement of network quality in LV
and MV according to the norm EN 50160.
Technology of measurement is performed according to the norm “IEC 61000-4-30:
Electromagnetic compatibility (EMC) – Part 4-30: Testing and measurement methods – Power
quality measurement method “, measurement class “Class A”.
EMK-10P portable Class A quality analyzer is designed for measurement and monitoring of
electrical parameters in 2, 3 and 4 conductor networks and in TN and TT grids.
EMK-01 quality analyser architecture is based on fast 32 bits RISC
microprocessor which provides high computing power to assure the device being fully according
the norm IEC 61000-4-30 Class A. EMK-10P is built-in the plastic suitcase with IP rating IP54.
2. Safety Instructions
The device comply the standard EN 61010-1: Safety requirements for electrical equipment for
measurement, control and laboratory use.
• Installation of the device can be done by qualied and authorized person only.
• Device should not be installed in the environment with increased humidity and close to
explosive gases.
• Use the device in accordance instructions written in the user manual.
• Before the disconnecting of CT measuring circuit assure that terminals of CT are short
circuited.
• Installation and connection changes can be done without supply voltage only.
• Do not apply supply, measuring voltage and current higher than allowed.
3. Packaging Content
• EMK-10P Class A quality analyzer
• User manual
• Rogowski coils
• Voltage cables
• USB cable
• Test report
