Genel Bilgi
Deşarj bobini ile kısa deşarj periyodları karşılanır ve hızlı deşarj ile sağlanır. Ayrıca
kondansatörlerin iç ısı kayıplarını azaltır. Deşarj bobini kullanılması ile deşarj dirençlerinin
yarattığı klemenslerin ısınmasının önüne geçilir.
Teknik Özellikler
Tasarım : Plastik kutu içerisinde dökümlü demir nüveye
sarılmış bobin
Bobin direnci : 3000 W
Çalışma periyodu : Sürekli
Nominal gerilim : 200 ..... 480V
Nominal frekans : 50 Hz
Faz sayısı : 3
Deşarj edilecek kondansatör gücü : 5 ..... 50 kVAr
Kayıplar : <1W
Ortam sıcaklığı : Maksimum 40
oC
Koruma sınıfı : IP20
Boyutlar : PK 21
Ağırlık : 0.4kg
General Information
Discharge unit withstands to short discharge periods of capacitors. Using discharge coils fast
discharge is provided. Discharge unit also reduces inner heat losses of capacitors. In addition,
discharge unit prevents terminal over heat which is generated by discharge resistors.
Technical Features
Design : Coil which is wound onto the casted iron nucleus in
the plastic box
Coil resistance : 3000 W
Operating period : Continuous
Nominal voltage : 200 ..... 480V
Nominal frequency : 50 Hz
Phase number : 3
Capacitor power : 5 ..... 50 kVAr
Losses : <1W
Ambient temperature : Max 40oC
Protection class : IP20
Dimension : PK 21
Weight : 0.4kg
“Bu ürün, 30.05.2008 tarih ve 26891 sayılı resmi
gazetede yayınlanan EEE Yönetmeliğinin Madde 2
ve Ek-1A madde 9 kapsamındadır.
DEŞARJ ÜNİTESİ
DU-3
DISCHARGE UNIT
DU-3
Allgemeine Informationen
Mit der Entladungsspule werden kurze Entladungszeiten eingehalten und eine schnelle
Entladung bereitgestellt. Es reduziert auch die internen Wärmeverluste der Kondensatoren.
Durch die Verwendung der Entladespule wird die durch die Entladewiderstände erzeugte
Erwärmung der Anschlüsse verhindert.
Technische Daten
Design : Spule umwickelt mit einem Gusseisenkern in einer
Kunststobox
Spulenwiderstand : 3000 W
Betriebsdauer : ständig
Nennspannung : 200 ..... 480V
Nennfrequenz : 50 Hz
Anzahl der Phasen : 3
Kondensatorleistung : 5 ..... 50 kVAr
Verluste : <1W
Umgebungstemperatur : Maximal 40oC
Schutzklasse : IP20
Maße : PK 21
Gewicht : 0.4kg

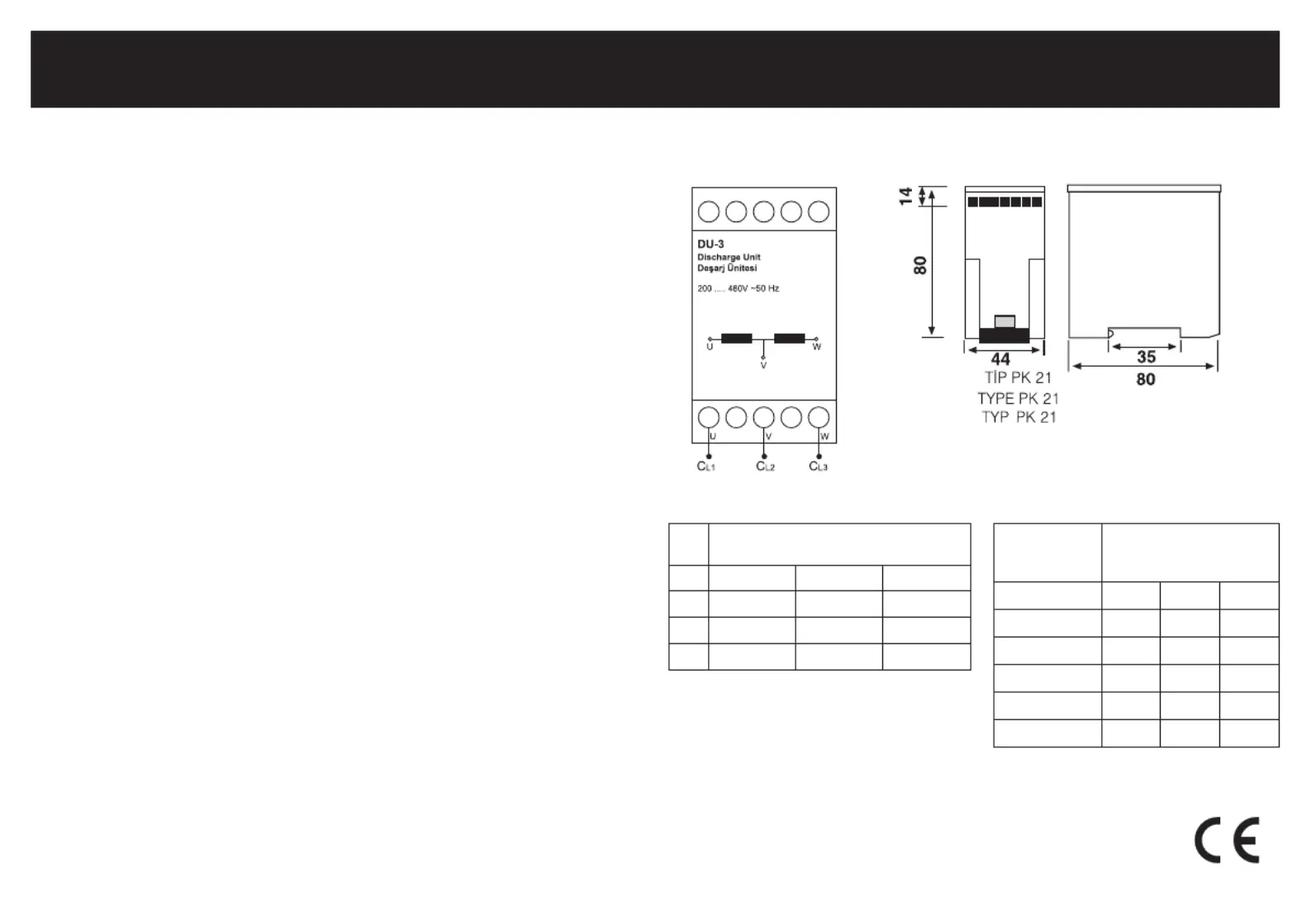

Bağlantı Şeması/
Connection Diagram /
Schaltplan
Boyutlar/ Dimension /
Maße
A3718 / Rev.3
Sürekli Akım / Continuous Current /
Dauerstrom (mA)
230 V 400 V 500 V
U1 4 8
V2 6 12
W1 4 8
Reaktif Güç
Reactive Power
Blindleistung
Deşarj Periyodu (sn)
Discharge Period (sec)
Entlastungszeitraum (sek)
Q (kVAr) 230 400 450
10 4 2 2
20 8 3.5 3
25 10 4 4
30 12 5.5 5
50 20 8 6
DEŞARJ ÜNİTESİ
DU-3
ENTES Elektronik Cihazlar Imalat ve Ticaret A.S.
Adr: Dudullu OSB; 1. Cadde; No:23 34776
 Ümraniye-İSTANBUL/TÜRKİYE
Tel: Fax: +90 216 313 01 10 +90 216 314 16 15
E-mail: iletisim@entes.com.tr - contact@entes.eu
Web: www.entes.com.tr - www.entes.eu
