DeWalt DXCM201 Manual
DeWalt
Compressor
DXCM201
Read below 📖 the manual in Italian for DeWalt DXCM201 (28 pages) in the Compressor category. This guide has been helpful for 6 people and has been rated 4.5 stars on average by 2 users
Page 1/28
DXCM201
Single Stage, Belt Drive, Electric Air Compressor
Compresseurs d’air électriques à un étage à entraînement par courroie
Compresores eléctricos de aire, de una sola etapa y accionamiento por correa
INSTRUCTION MANUAL
GUIDE D'UTILISATION
MANUAL DE INSTRUCCIONES
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y
PÓLIZA DE GARANTÍA. LÉASE ESTE ADVERNTENCIA:
INSTRUCTIVO ANTES DE USAR EL PRODUCTO.
If you have questions or comments, contact us.
Pour toute question ou tout commentaire, nous contacter.
Si tiene dudas o comentarios, contáctenos.
1-888-895-4549 • www.DEWALT.com
MAT Industries, LLC, Long Grove, IL 60047
(APRIL 19) Part No. E112138 DXCM201 Copyright 2019 DEWALT©
2
English

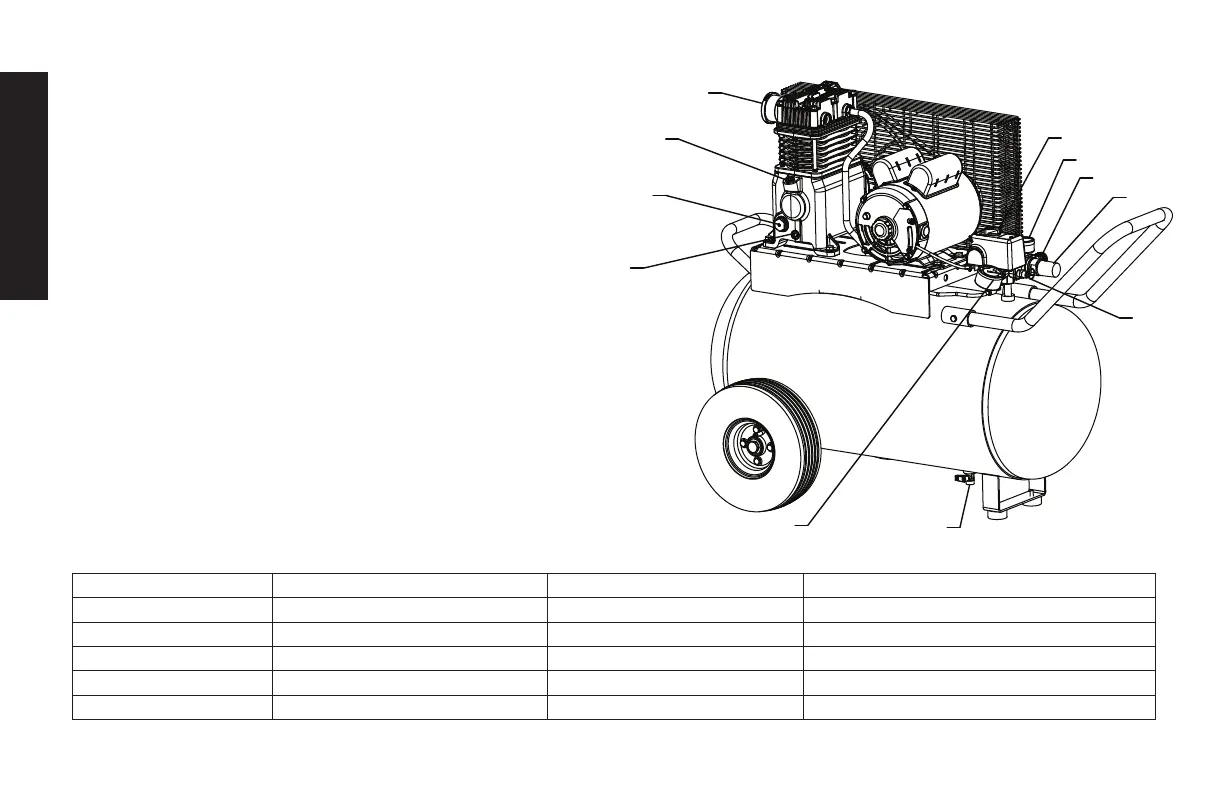

Air Compressor
A. Pump Air Intake Filter
B. Auto(-)/Off(O) Switch
C. Air Tank Pressure Gauge
D. Regulated Pressure Gauge
E. Pressure Regulator
F. Air Outlet
G. Safety Valve
H. Air Tank Drain Valve
I. Pump Oil Fill Plug
J. Pump Oil Drain Plug
K. Pump Oil Sight Glass
L. Quick Connect
Pump Specifications
2 Cylinder
Single Stage
Oil Lubricated
Cast iron crankcase, cylinder, and aluminum head
Weight: 27.0 lbs (12.2 kg.)
Oil Capacity: 16 fl. oz. (473 mL)
Specifications
MODEL DXCM201
APPROX. CUT OUT PRESSURE
200 PSI
WEIGHT 137 lbs. (62.1 kg)
AIR DELIVERY
6.2 SCFM @ 90 PSI
HEIGHT 32"
TANK FILL TIME
5.5 MINUTES
WIDTH 22"
INPUT
120V, 60HZ, SINGLE PHASE AC ONLY, 15 AMPS
LENGTH 33" WITHOUT FRONT HANDLE
MIN. BRANCH CIRCUIT REQ
20 AMPS
AIR TANK CAPACITY
20 GALLONS (75.7 L)
FUSE TYPE
TIME DELAY
A
B
C
D
E
F/L
G
H
I
J
K
3
English
Fig. 2
OPEN
CLOSE
OFF
AUTO
Fig. 3
FULL
ADD
J = Oil drain plug
K = Oil level sight glass
I = Oil fill plug
J
K
I
Fig. 1 Hot Surfaces
COMPRESSOR CYLINDER & HEAD
PUMP
CRANKCASE
OUTLET
TUBE
Product Specifications
| Brand: | DeWalt |
| Category: | Compressor |
| Model: | DXCM201 |
