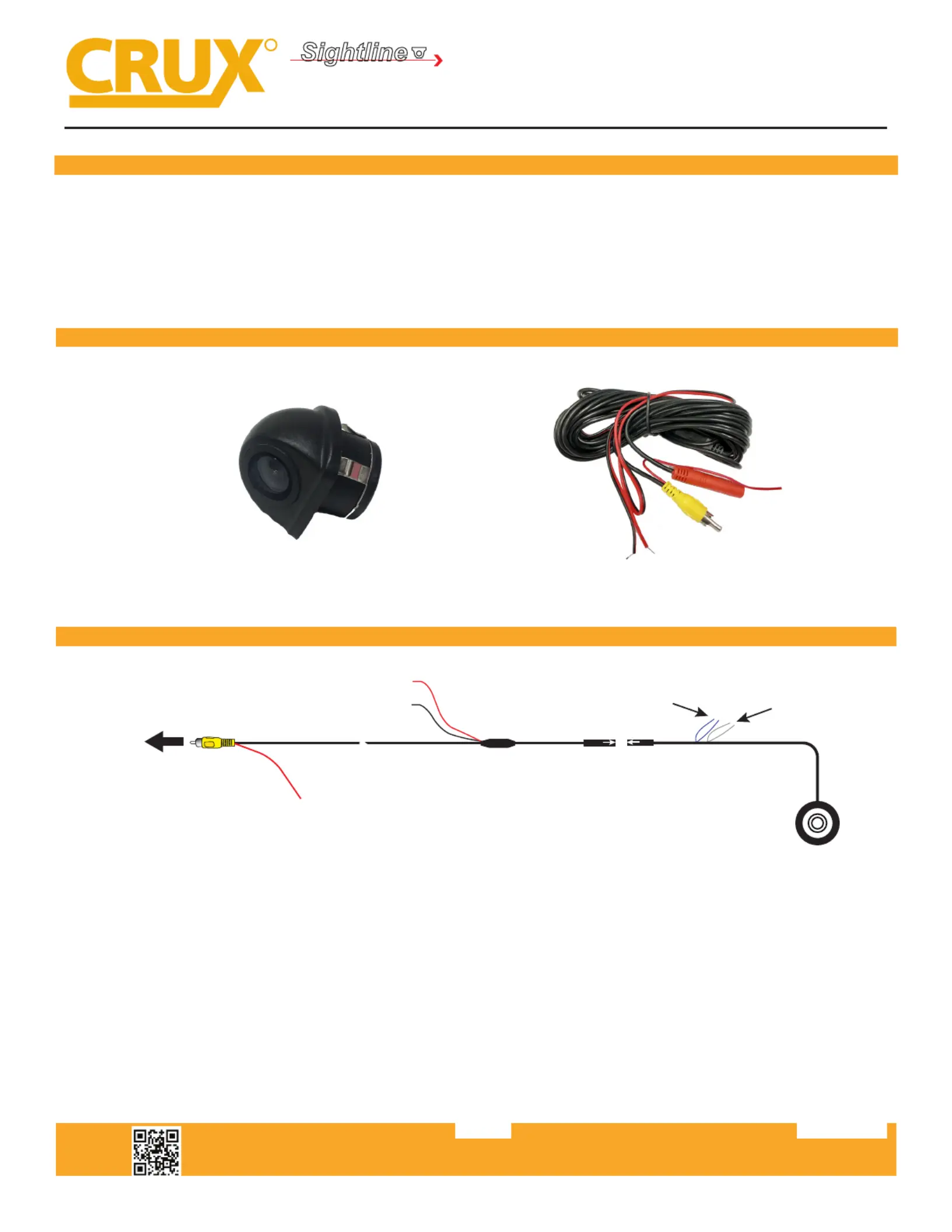

CUL-16
Universal Push-In Mount Camera
1
- Universal Push-In mount camera.
- Selectable Parking Guide Line ON or OFF.
- Can be used as a Rear View or Front View camera.
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
CUL-16 CAMERA EXTENSION CABLE
WHITE Wire
Parking Guideline
Regulator
Extension Coax Cable
GROUND
RED Wire (A)*
Camera
RED Wire (B)*
Make sure the arrows
line up and push in
the connectors well.
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
BLUE Wire
Flip Image Horizontally
*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to
insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED
Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis
ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.
WHITE Wire: Connect to show parking guide line. Disconnect to remove. Insulate with tape to avoid from shorng.
BLUE WIre: Connect to use as reverse camera. Disconnect to ip image horizontally to use as front facing camera.
Note: Cycle the camera power aer connecng or disconnecng the control wires.
