CRUX CUL-05 Manual
CRUX
Security camera
CUL-05
Read below 📖 the manual in Italian for CRUX CUL-05 (1 pages) in the Security camera category. This guide has been helpful for 2 people and has been rated 4.5 stars on average by 2 users
Page 1/1

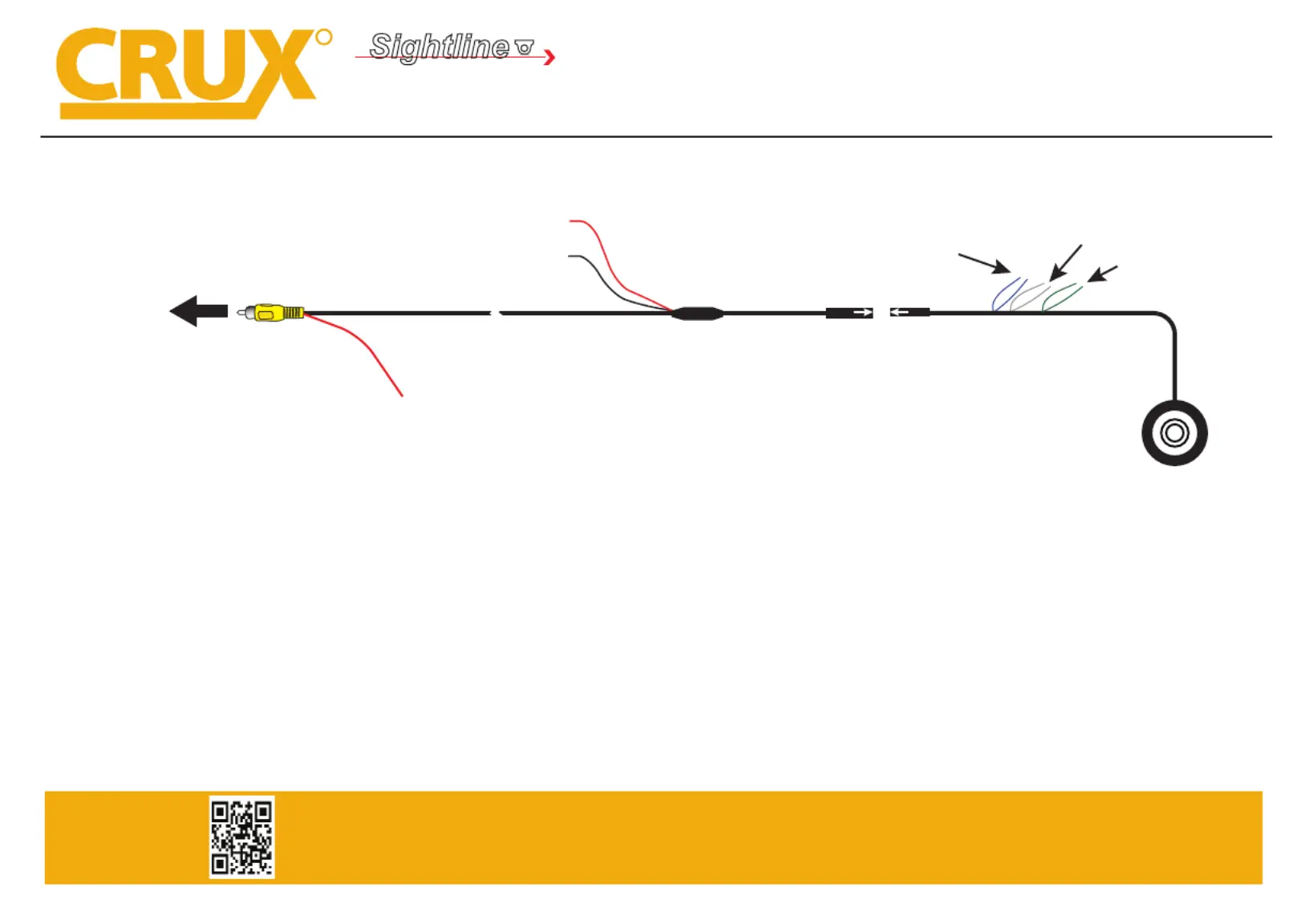

WHITE Wire
Parking Guideline
Regulator
Extension Coax Cable
GROUND
RED Wire (A)*
Camera
RED Wire (B)*
Make sure the arrows
line up and push in
the connectors well.
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
BLUE Wire
Flip Image Horizontally
*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to insulate RED Wire A to avoid it from
shorting. If you will be tapping power from the reverse light +12V, insulate RED Wire B to avoid it from shorting. With either connection
the Black GROUND wire needs to be connected to a solid chassis ground. For vehicles with manual transmission, we recommend tapping
+12V power from the reverse light.
WHITE Wire: Connect to show parking guide line. Disconnect to remove.
BLUE Wire: Connect to ip image horizontally to use as front facing camera. Disconnect to use as reverse camera.
GREEN Wire: Connect to ip image vertically to use as top mount camera. Disconnect to use as lip mount.
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
GREEN Wire
Flip Image Vertically
CUL-05
Universal Lip Mount Camera with
Vertical and Horizontal Flip Image Function
Product Specifications
| Brand: | CRUX |
| Category: | Security camera |
| Model: | CUL-05 |
