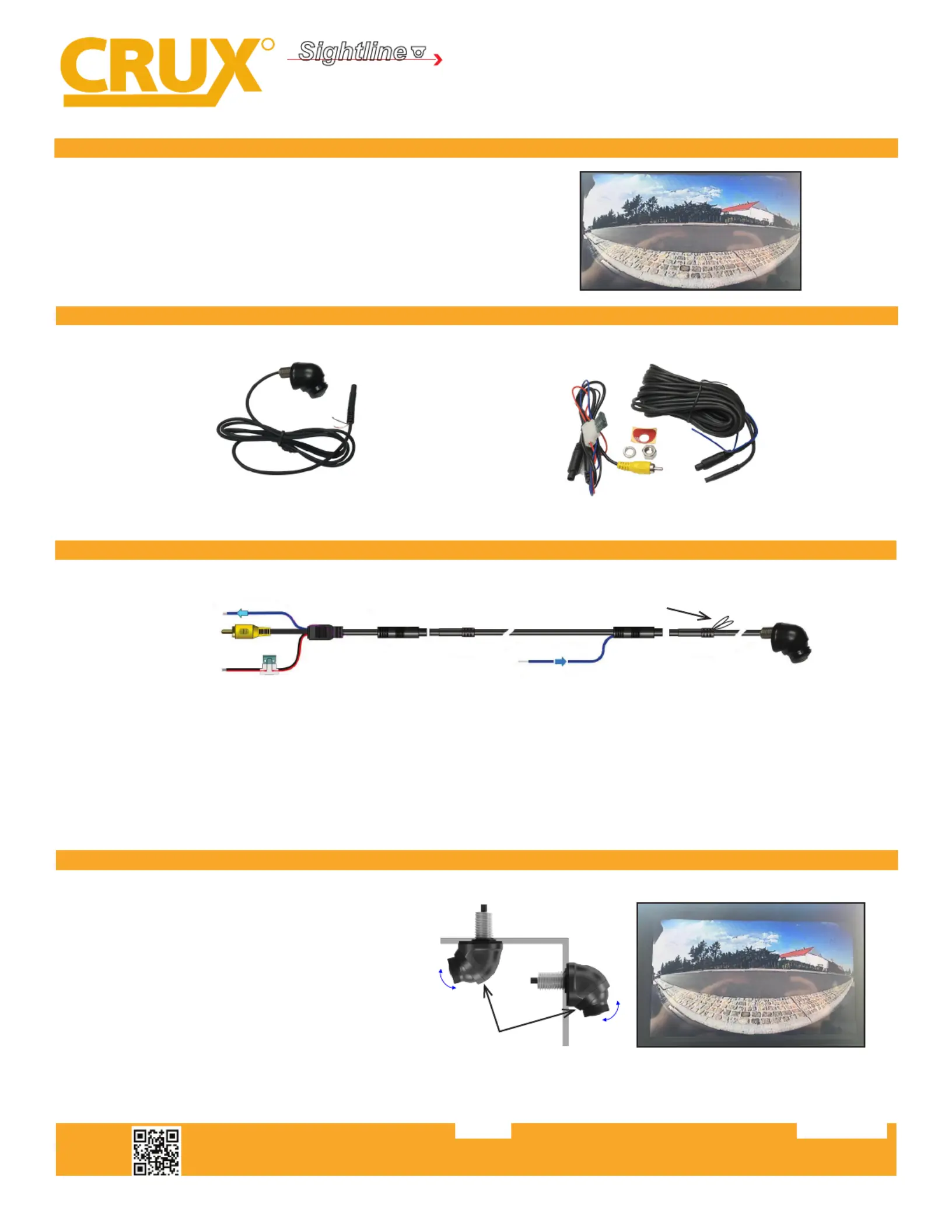

CTC-210
Cross Trac Camera System
Front or Backup Camera with 210 Degree Viewing Angle
1 of 1
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
- For use as a front or backup camera.
- Wide angle lens for cross trac viewing.
- With parking guide lines (can be turned on/o).
- Horizontal ip image feature for front camera use.
- Top or lip mount.
PRODUCT FEATURES:
PARTS INCLUDED:
CTC-210 Camera Extension Cable and Accessories
*NOTE: To power the camera, tap the RED wire to +12V and the BLACK wire to ground.
1) If tapping power from the radio or a backup camera interface, tap the RED wire to the camera output wire of the radio or interface. The
BLUE wire is not used in this instance.
2) If you are tapping power from the backup light, tap the BLUE wire “B” to the +12V backup light wire then connect the BLUE wire “A” to
the RED wire. Connect the black wire to ground.
WIRING DIAGRAM:
The CTC-210 can be used as a backup camera or as a front
camera with wide angle cross trac viewing. The wide
angle viewing aids when backing up and the driver has
limited view of what’s on the le or right of the vehicle. It
can be top mounted or lip mounted and the viewing angle
is also adjustable both vercally and horizontally. Loosen
the camera lock ring and the ball camera can be turned 360
degrees. The CTC-210 has parking guide lines when used
as a backup camera. To deacvate the parking guide lines,
cut the thin GREEN wire on the 4 pin barrel connector. See
diagram above. To use the CTC-210 as a front camera, cut
the thin GREEN wire to remove the parking guide lines
and cut the thin RED wire to ip the image horizontally.
CROSS TRAFFIC VIEWING:
To Video Input
Power Extension Wire*
Power & Ground*
Red & Black wires “B”
“A”
GREEN wire cut = deacvate Parking Guide Lines
RED wire cut = ip image horizontally for front camera use
Ball camera lock ring
Product Specifications
| Brand: | CRUX |
| Category: | Security camera |
| Model: | CTC-210 |
