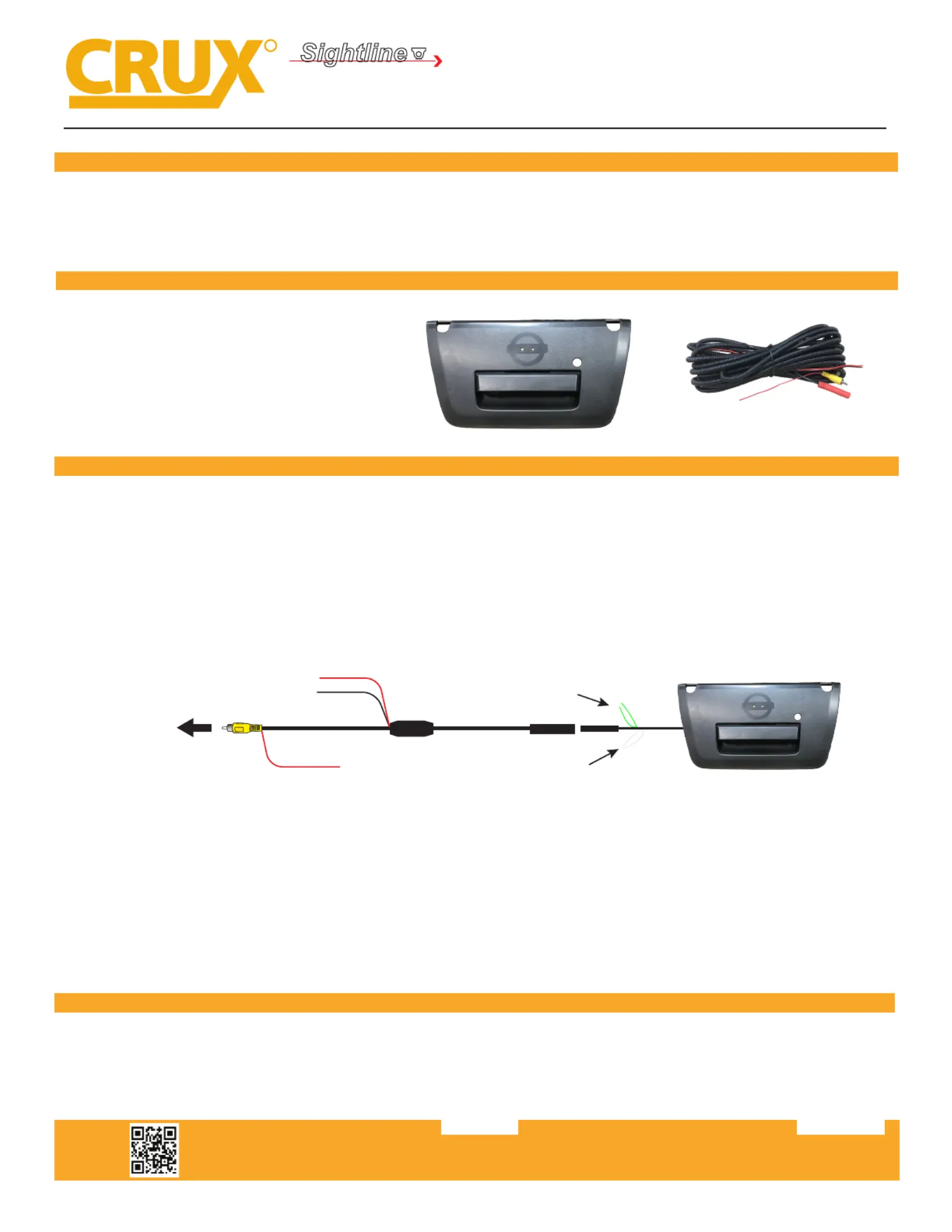

Page 1/1
CNS-02F
Tailgate Handle Camera for
Nissan Frontier 2013-2017
- Replaces factory tailgate handle assembly.
- Selectable Parking Guide Line ON or OFF.
- Maintains the OEM look.
PRODUCT FEATURES:
PARTS INCLUDED:
*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to
insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED
Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis
ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.
GREEN Wire: Connect to show parking guide line. Cut loop to remove guide lines. Insulate with tape to avoid from
shorng.
WHITE Wire: Not used, do not cut.
Note: Cycle the camera power aer connecng or disconnecng the GREEN control wire.
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
1. Tailgate handle camera
2. 26 . extension cable
INSTALLATION INSTRUCTIONS:
1. Remove the factory tailgate handle and remove the emblem and key cylinder.
2. Run the camera cable to the inside of the cabin towards the radio.
3. Make the power and video connecons to the rear view camera integraon interface or the aermarket radio or the
reverse light.
4. Install the emblem and key cylinder to the CNS-02F tailgate handle assembly.
5. Test the camera for funconality. Decide whether the parking guide line will be used or not. See below for instrucons on
how to turn it ON/OFF.
6. Install the new tailgate handle camera.
26 Ft. Coax Cable
RED wire (B)*
Ground (Black wire)
RED wire (A)*
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
GREEN Wire
Parking Guideline
WHITE Wire
(not used, leave connected)
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.100819
VEHICLE APPLICATIONS:
NISSAN
2013 - 2016 Froner
1
NOTE: Nissan emblem and key cylinder not included.
