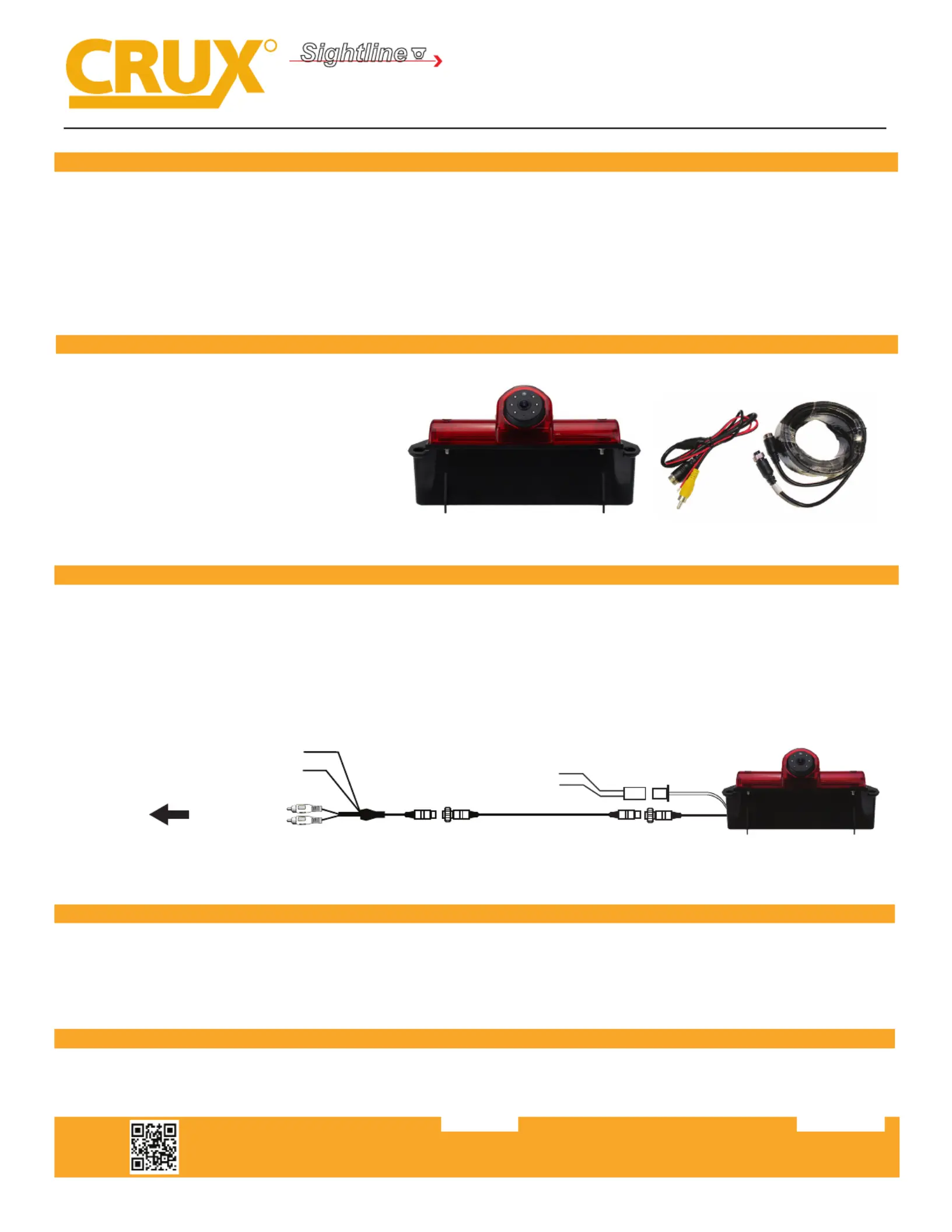

CGM-03EY
Third Brake Light Camera with 1/3” Sony CCD Sensor
for Select Chevrolet Express & GMC Savana Vans
- Uses 1/3” Sony CCD sensor. a
- Replaces the factory third brake light to maintains the OEM look.
- LED brake lights included.
- 6 Infra Red LEDs for night me use.
- With Built-in Microphone.
- Uses 4-pin aviaon type water resistant connectors.
PRODUCT FEATURES:
PARTS INCLUDED:
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
1. Third Brake Light camera
2. 33’ extension cable
3. 4-pin aviaon connector to RCA adapter
4. Mounng screws
INSTALLATION INSTRUCTIONS:
1. Remove the factory third brake light.
2. Tap power and ground from the factory brake light harness to the red and black wires from the camera.
3. Run the extension cable provided towards the radio.
4. Plug the 4-pin aviaon connector of the extension cable to the camera cable.
5. Make the power and video connecons at the radio.
6. Test the camera prior to reinstalling in the third brake light locaon.
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.083020
VEHICLE APPLICATIONS:
CHEVROLET
2004 - Up Express
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
Brake Light Power 12V
BLACK Wire Ground
Extension Cable
MIC Output
Video Input
RED wire camera Power +12V
Ground
1
SPECIFICATIONS:
Sensor: 1/3” SONY CCD sensor.
Pixels: 975H x 582V (NTSC)
Resoluon: 600TVL (horizonal)
Viewing Angle: 150°
Illuminaon: .01Lux (18 IR LEDs)
Connecon: G16 Aviaon 4pin connectors
GMC
2004 - 2016 Savana
Product Specifications
| Brand: | CRUX |
| Category: | Security camera |
| Model: | CGM-03EY |
