Page 1/7
CDA-HD180 18G

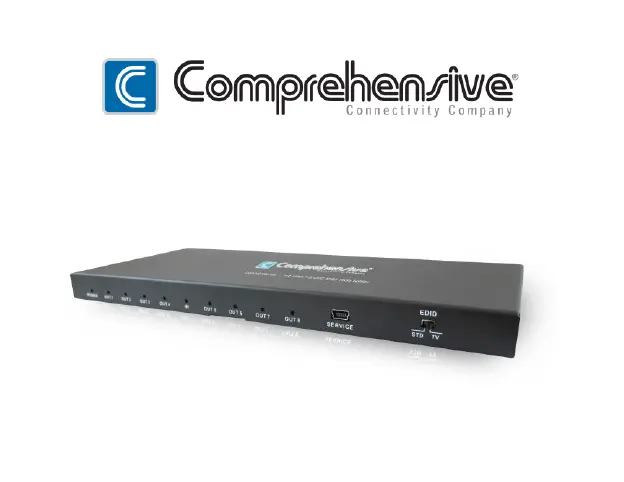

1x8 HDMI Full UHD 4K60 18Gb Splitter (YUV:444)
User manual
V1.0ep
1
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please keep
this manual for future reference.
I. Introduction
This 1 by 8 HDMI UHD Splitter with HDCP 2.2 is an advanced solution for splitting a single
HDMI input to eight HDMI outputs. It provides high performance audio and video output through
HDMI cables up to 4K2K@60Hz (YUV444) resolution and is capable of receiving and transmitting
up to 18Gbps of bandwidth with no data loss. Supporting the latest features you can be assured of
reliable and high quality HDMI distribution.
II. Features
1. Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;
2. Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up
2
to 4k2k@60Hz with 12bit YCBCR 4:4:4;
3. Support 3D frame sequential video format up to 1080p@60;
4. Support high resolution VESA mode video format up to QSXGA@60Hz;
5. Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio;
6. Supports smart EDID control;
III. Package
1. UHD 1x8 HDMI Splitter 1PC ------------------------------------------------------------------
2. 12 V2.5A DC Power adapter - 1PC ------------------------------------------------------------
3. Operation Manual 1PC -------------------------------------------------------------------------
IV. Speciications
1. Video Bandwidth 600MHz/18Gbps
2. Input Ports 1 Ă— HDMI (Female type)
3. Output Ports 8 Ă— HDMI (Female type),
