Page 1/12
I N S T A L L A T I O N I N S T R U C T I O N S

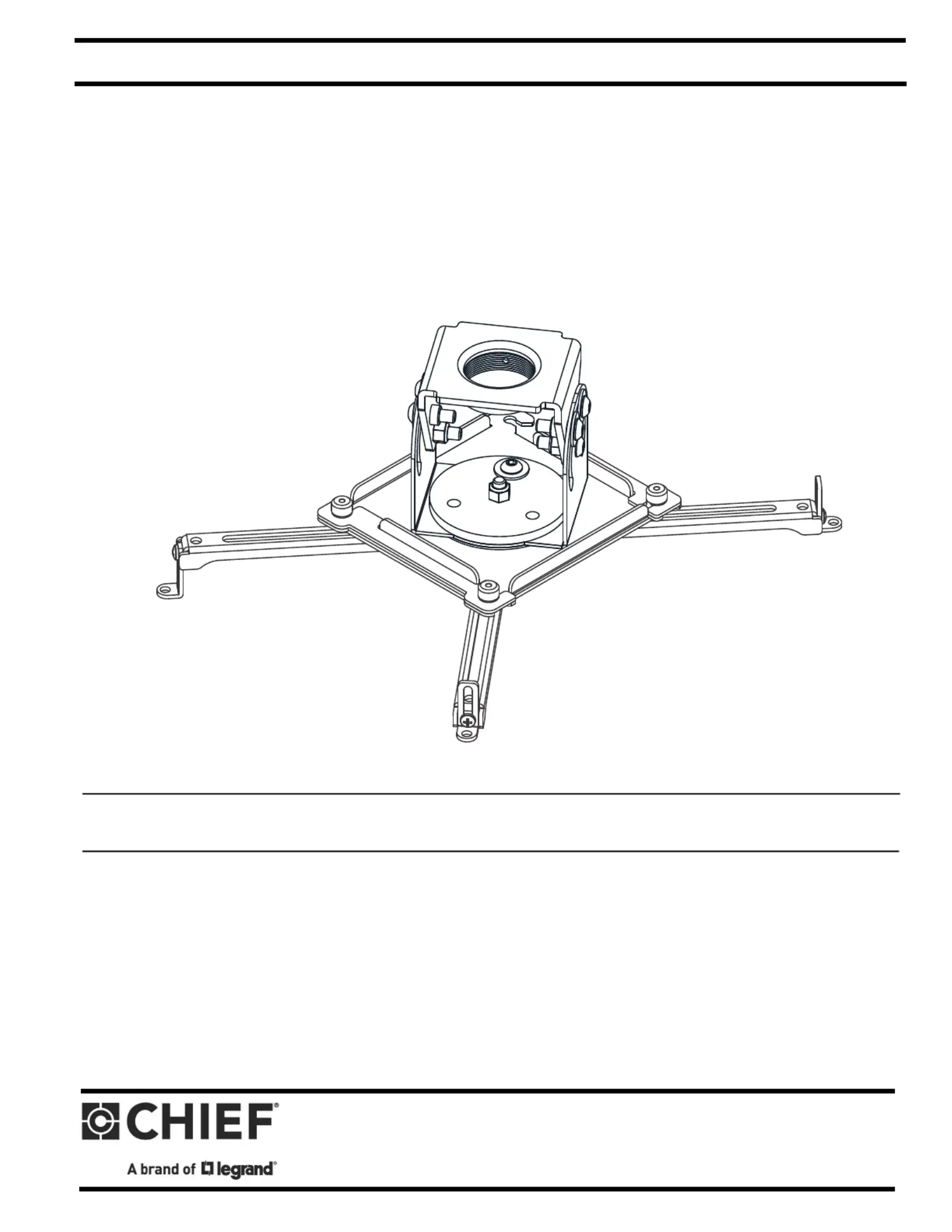

Vertical / Horizontal Universal Projector Mount
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
VPAU
VPAU Installation Instructions
2
DISCLAIMER
Legrand AV and its affiliated corporations and subsidiaries
|
(collectively “Legrand AV”), intend to make this manual |
accurate and complete. However, Legrand AV makes no claim |
that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Legrand AV
|
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Legrand AV
|
assumes no responsibility for accuracy, completeness or
sufficiency of the information contained in this document.
Chief® is a registered trademark of Legrand AV Inc.
DEFINITIONS
MOUNTING SYSTEM: A MOUNTING SYSTEM is the
primary Chief product to which an accessory and/or component
is attached.
ACCESSORY: AN ACCESSORY is the secondary Chief
product which is attached to a primary Chief product, and may
have a component attached or setting on it.
COMPONENT: A COMPONENT is an audiovisual item
designed to be attached or resting on an accessory or mounting
system such as a video camera, CPU, screen, display,
projector, etc.
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all mounting systems
are properly assembled and installed using the instructions
provided.
WARNING: Failure to provide adequate structural strength
for this mounting system can result in serious personal injury
or damage to equipment! It is the installer’s responsibility to
make sure the structure to which this mounting system is
attached can support five times the combined weight of all
equipment. Reinforce the structure as required before
installing the mounting system.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components attached to mounting system does not
exceed 75 lbs (34.0 kg).
• The weight capacity of the VPAU may be LIMITED to
the lowest weight capacity of any other accessory used
within the mounting system.
WARNING: Use this mounting system only for its intended
use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
WARNING: Never operate this mounting system if it is
damaged. Return the mounting system to a service center for
examination and repair.
WARNING: Do not use this mounting system outdoors.
IMPORTANT ! : The VPAU mounts are designed to be
mounted to a 1-1/2" NPT or NPSM following ANSI/ASME
B1.20.1 (Schedule 40, 0.154" minimum thickness steel or
aluminum - ASTM B221) threaded extension column (not
included).
--SAVE THESE INSTRUCTIONS--
Installation Instructions VPAU
3

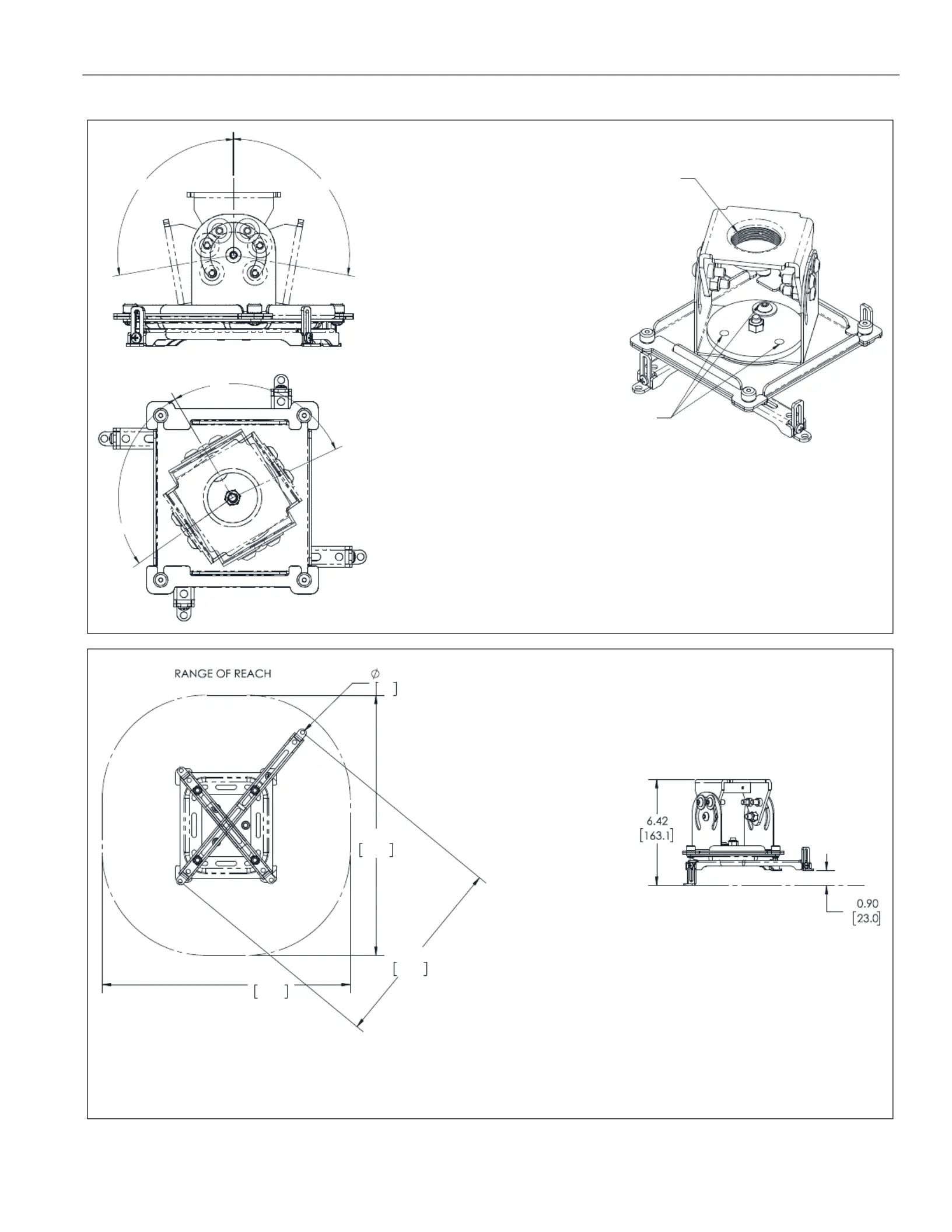

DIMENSIONS
100° 100°
95°
95°
MOUNT HAS 190 RANGE OF
MOTION FROM EACH
BOLTING POINT
LARGER RANGE OF
ROTATION CAN BE ACHIEVED
BY ADDING ADDITIONAL BOLT IN
SEPARATE HOLE THEN REMOVING CURRENT BOLT
1 1/2" NPSM THREAD
DIMENSIONS: INCH
[MILLIMETER]
11.67
296.5
0.25
6.4
15.75
400.1
15.00
381.0
