Blustream HMXL44ARC-KIT Manual
Read below 📖 the manual in Italian for Blustream HMXL44ARC-KIT (27 pages) in the Switch category. This guide has been helpful for 4 people and has been rated 4.5 stars on average by 2 users
Page 1/27

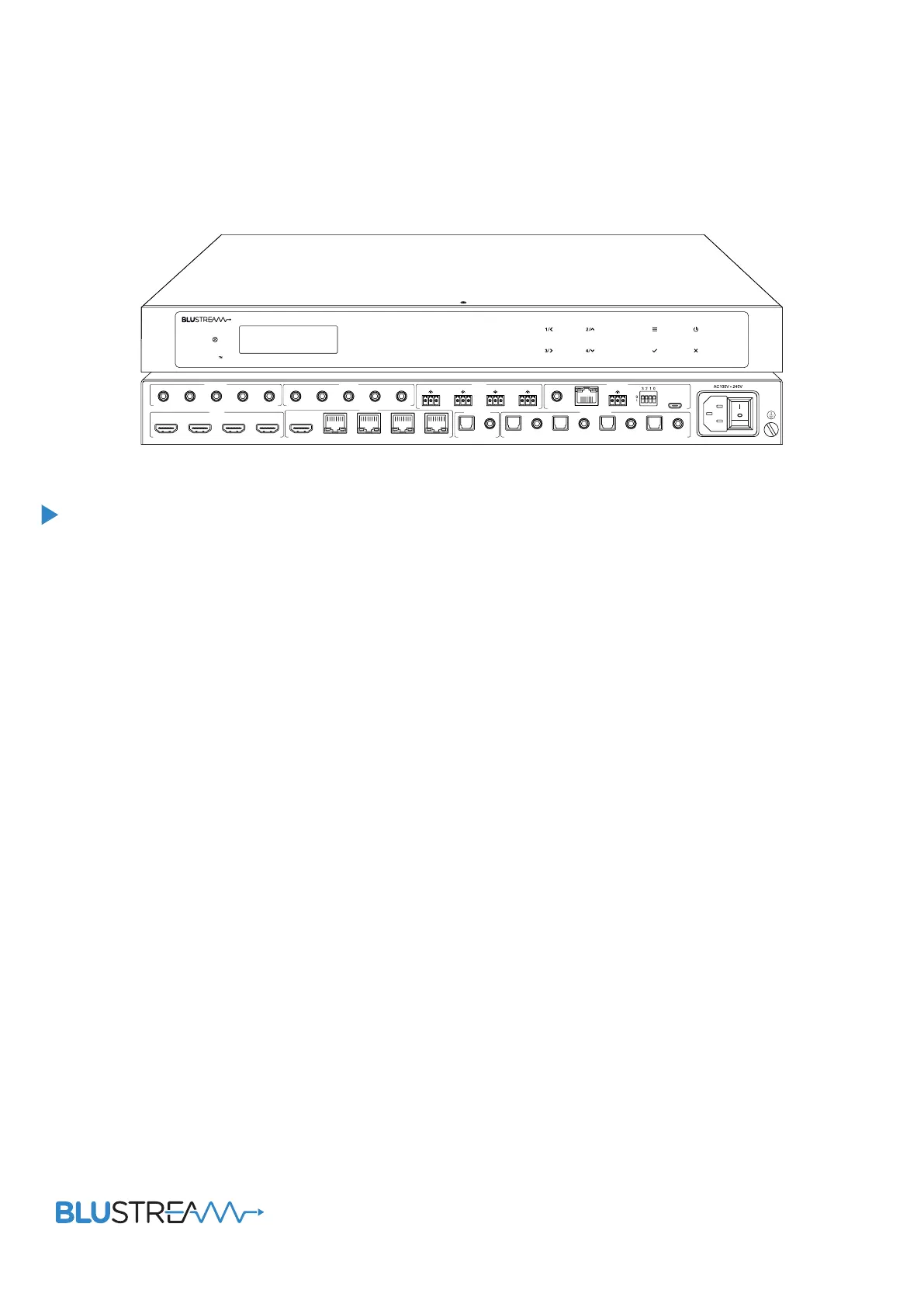

HMXL44ARC-KIT
User Manual
REVA1_HMXL44ARC-KIT_User_Manual
L/ROPTICAL
AUDIO INPUT
HMXL44ARC
AUDIO OUTPUT
1 1
IR INPUT
2 23 34 4GLOBAL GLOBAL
IR OUTPUT RS-232 CONTROL
INPUT
HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 1 HDBT 1 HDBT 2 HDBT 3 HDBT 4
OUTPUT
UPGRADE
OPTICAL 4OPTICAL 3OPTICAL 2OPTICAL 1 L/R 4L/R 3L/R 2L/R 1
2 3 4 IR CTRL TCP/IP RS-232 EDID1
RXTX RXTX RXT X RXTX RXTX
4x4 4K HDBaseT ARC Matrix
Supporting 4K 60Hz 4:4:4
HMXL44ARC-KIT USER MANUAL
www.blustream.com.au | | www.blustream-us.com www.blustream.co.uk02
Surge Protection Device
Recommended
This product contains sensitive
electrical components that may be
damaged by electrical spikes, surges,
electric shock, lightning strikes, etc.
Use of surge protection systems is
highly recommended in order to
protect and extend the life of your
equipment.
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions care-
fully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Introduction 03
Features 03
Front Panel Description 04
Rear Panel Description 04
EDID Management 05
Front Panel Menu System 06
HDBaseTâ„¢ Receiver Compatibility 06
Power Over Cable 06
Terminating CAT Cables for use with HDBT 07
Understanding the HDBaseT™ Status LED’s 07
Infrared (IR) Control 08
CEC Control 08
Audio Return Channel 08
Web GUI Control 08-16
Remote Control Description 17
IR Commands 17-18
Specifications 19
Package Contents 19
Maintenance 19
RS-232 Config & Telnet Commands 20-22
Web-GUI Firmware Update 23-24
Schematic 25
Certifications 26
HMXL44ARC-KIT USER MANUAL
Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk 03
Our Essential 4x4 HDBaseT™ Matrix oers unprecedented performance and value for the
custom installation market. The HMXL44ARC is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrix
package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths
of 70m (at 1080p) over a single CAT cable.
The Matrix also provides advanced features including simultaneous HDBaseTâ„¢/HDMI on
output 1, video Smart Scaling on HDBaseT outputs and independent 14x4 audio matrix
including Audio Return Channel (ARC). The HMXL44ARC includes in-built web browser
interface module for control and configuration of the Matrix and RS-232 and IR pass
through to enable seamless 3rd party control integration.
Introduction
FEATURES:
• Advanced HDBaseT™ technology oering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz
4:2:0, or 1080p) to receive 4K 60Hz 4:4:4 video content, while still showing maximum original 4K UHD resolution on remaining
video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m, and 1080p video up to 70m
• 14x4 Audio Matrix independently controllable from video. Audio source inputs include:
- 4 x audio breakout from HDMI source inputs
- 4 x audio breakout from zone outputs
- 4 x ARC from zone outputs*
- 1 x Optical and 1 x analogue audio input
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio
transmission
• Web interface module for control and configuration of Matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power supplied RX70CS HDBaseT™ receivers
• Supplied with Blustream IR receivers and emitters
• Advanced EDID management and HDCP 2.2 compliant
* ARC feature supports HDMI ARC or Optical ARC
* CSC & ARC feature compatible with RX70CS only
