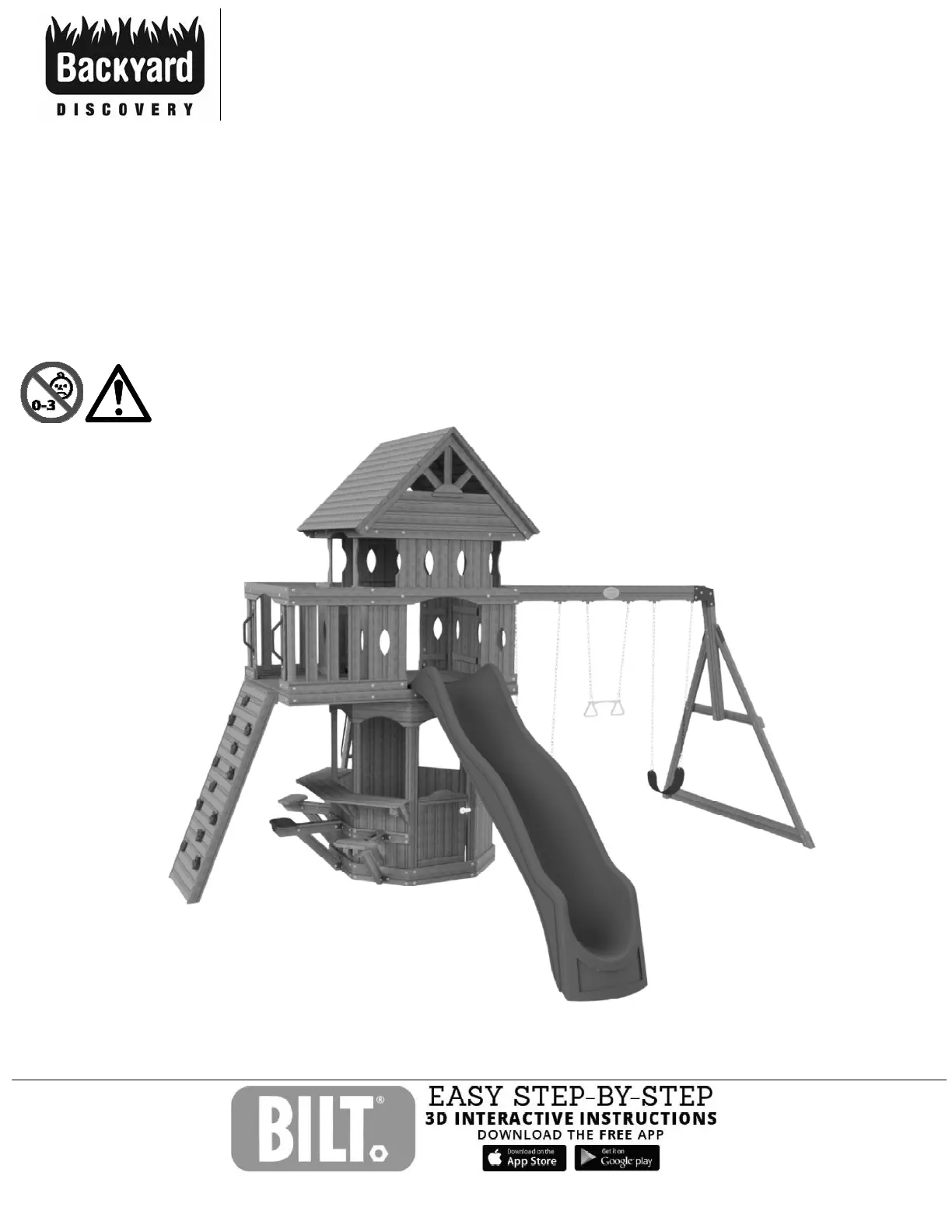

Page 1/10
Made in China
INS-6014B or 2300194-A-WOODLAND-ENG 08-23-2023
& INS-2200210-A-SILVERWOOD-ENG 08-23-2023
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your set, or to order replacement parts
Para obtener instrucciones en español, visite www.backyarddiscovery.com
MANUFACTURED BY:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
WARNING
Adult Assembly Required.
Not suitable for children under 36 months due to small parts.
FOR DOMESTIC USE ONLY. INTENDED FOR OUTDOOR USE.
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
J.P. 0800-567-8990Coenstraat 7, The Bridge, Hague, Phone: The 2595 WP, Netherlands
WOODLAND
SILVERWOOD
Swing Set
Model # 6014B or 2300194 & 2200210
The assembly manual retained contains important informationmust be since it .
Safe Play Zone
SAFE PLAY HEIGHT: 17'-10 1/4" [5.4 m]
MAXIMUM FALL HEIGHT: 6'-11 1/4" [2.1 m]
General Information:
Your set has been designed and engineered for children only and for residential use only.
A maximum of 150 lbs. per child is recommended for play activities designed for individual use.
A maximum of 120 lbs. per child is recommended for play activities designed for multiple child use.
A maximum of 9 children is recommended for this swing set.
Ground Dimensions
17'-4 1/4" [5.3 m] x 14'-2 3/4" [4.3 m]
Safe Play Area
30'-6" [9.3 m] x 27'-4 3/4" [8.3 m] x 17'-10 1/4" [5.4 m]
SAFE PLAY AREA DIAGRAM
Place the set on level ground, not less than 6'-7" [2 m] from any structure or obstruction such as a
fence, garage, house, overhanging branches, laundry lines, or electrical wires.
•While assembling unit, take time before and after each phase to make sure fort is level. If fort is not level, assembly will be difficult and
improper assembly may result. Extra care must be taken to insure the fort is square.
•The safe play area refers to a zone extending 6'-7" (2 m) beyond the play product on all sides, including the space above the play product.
Owner's Manual - Basic Setup Dimensions & Assembly Notes
6'-7"
[2.0 m]
14'-2 3/4"
[4.3 m]
6'-7"
[2.0 m]
17'-4 1/4"
[5.3 m]
11'-3 1/4"
[3.4 m]
6'-11 1/4"
[2.1 m]
30'-6"
[9.3 m]
27'-4 3/4"
[8.3 m]
2
Wood Components (Not to Scale)
Owner's Manual - Parts Identication
SWING BEAM - W4L15998
3 3/8"x5 1/4"x89 1/2" (86x134x2274)
A50
(x1)
END SUPPORT - W4L16003
1 3/8"x3 3/8"x44 1/8" (36x86x1120)
E50
(x1)
LEFT RAIL - W4L16007
1 3/8"x3 3/8"x64 1/2" (36x86x1640)
E72
(x1)
RIGHT RAIL - W4L16008
1 3/8"x3 3/8"x64 1/2" (36x86x1640)
E73
(x1)
ANGLE BRACE - W4L16004
1 7/16"x3 3/8"x87 3/16" (36x86x2214)
E51
(x2)
LEFT UPRIGHT - W4L04458
1 3/8"x3 3/8"x59" (36x86x1500)
E1
(x2)
RIGHT UPRIGHT - W4L04463
1 3/8"x3 3/8"x59" (36x86x1500)
E2
(x2)
UPPER UPRIGHT - W4L04473
1 3/8"x3 3/8"x33 1/4" (36x86x844)
E3
(x6)
SEAT BRACE - W4L16102
1 3/8"x3 3/8"x24" (36x86x609)
E4
(x3)
LEFT UPRIGHT - W4L15932
1 3/8"x3 3/8"x64 3/8" (36x86x1634)
E77
(x1)
RIGHT UPRIGHT - W4L15933
1 3/8"x3 3/8"x64 3/8" (36x86x1634)
E78
(x1)
LEFT UPRIGHT - W4L16110
1 3/8"x3 3/8"x59" (36x86x1500)
E5
(x1)
RIGHT UPRIGHT - W4L16111
1 3/8"x3 3/8"x59" (36x86x1500)
E6
(x1)
LEFT UPRIGHT - W4L16112
1 3/8"x3 3/8"x59" (36x86x1500)
E7
(x1)
RIGHT UPRIGHT - W4L16113
1 3/8"x3 3/8"x59" (36x86x1500)
E8
(x1)
3
