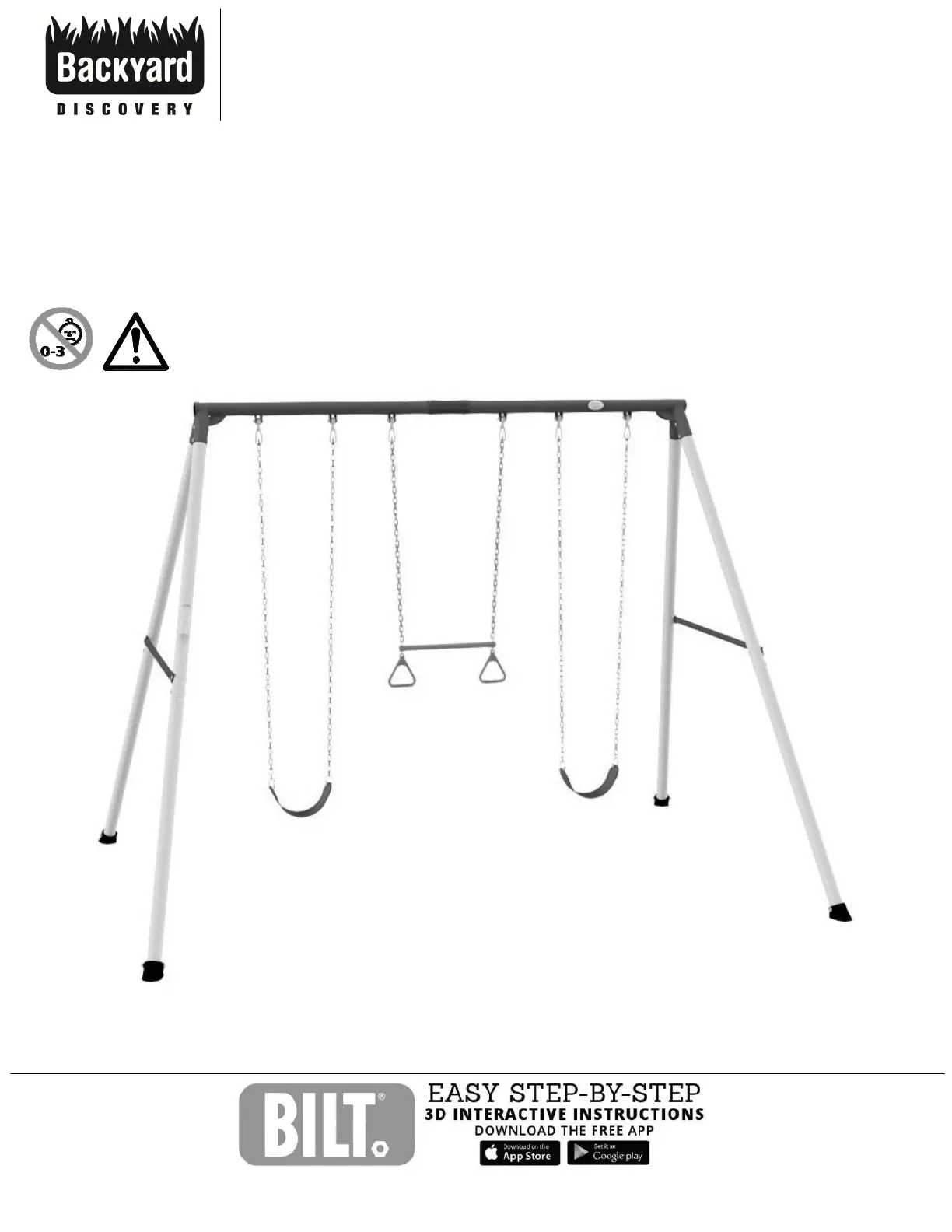

Page 1/14
Made in China
INS-1952050D-A-BIG BRUTUS-ENG 10-17-2023
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your set, or to order replacement parts
Para obtener instrucciones en español, visite www.backyarddiscovery.com
Model # 1952050D
BIG BRUTUS
MANUFACTURED BY:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Swing Set
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 0800-567-8990
WARNING
Adult Assembly Required.
Not suitable for children under 36 months due to small parts.
FOR DOMESTIC USE ONLY. INTENDED FOR OUTDOOR USE.
The assembly manual must be retained
since it contains important information
Safe Play Zone
SAFE PLAY HEIGHT: 15'-10 1/2" [4.8 m]
MAXIMUM FALL HEIGHT: 9'-3 1/2" [2.8 m]
General Information:
Your set has been designed and engineered for children only and for residential use only.
A maximum of 150 lbs. per child is recommended for play activities designed for individual use.
A maximum of 120 lbs. per child is recommended for play activities designed for multiple child use.
A maximum of 9 children is recommended for this swing set.
SAFE PLAY AREA DIAGRAM
Place the set on level ground, not less than 6'-7" [2 m] from any structure or obstruction such as a
fence, garage, house, overhanging branches, laundry lines, or electrical wires.
•While assembling unit, take time before and after each phase to make sure fort is level. If fort is not level, assembly will be difficult and
improper assembly may result. Extra care must be taken to insure the fort is square.
•The safe play area refers to a zone extending 6'-7" (2 m) beyond the play product on all sides, including the space above the play product.
Owner's Manual - Basic Setup Dimensions & Assembly Notes
Ground Dimensions
9'-7" [2.9 m] x 13'-2 3/4" [4.0 m]
Safe Play Area
22'-8 1/2" [6.9 m] x 26'-4 1/4" [8.0 m]
x 15'-10 1/2 [4.8 m]
9'-3 1/2"
[2.8 m]
9'-6 1/2"
[2.9 m]
22'-8 1/2"
[6.9 m]
26'-4 1/4"
[8.0 m]
6'-7"
[2.0 m]
6'-7"
[2.0 m]
9'-7"
[2.9 m]
13'-2 3/4"
[4.0 m]
1'-1 1/2"
[.3 m]
3'-6 1/2"
[1.1 m]
2
Hardware Components
Owner's Manual - Parts Identification
BOLT CARRIAGE WZ
5/16x2 3/4
(x2)
H100811
NUT BARREL WH WZ
5/16x7/8
(x22)
H100499
BOLT HEX M12x50mm WZ
M12x 50mm
(x6)
H100818
BOLT CARRIAGE WZ
5/16x2 1/2
(x16)
H100591
LOCK NUT WZ
M12
(x6)
H100819
WASHER FLAT WZ
5/16
(x4)
H100278
BOLT WH WZ
5/16x4
(x4)
H100366
TORX WRENCH
T-30
(x1)
H100114
TORX BIT
T-30
(x1)
H100147
MAGNETIC DRIVER
(x1)
H101100
3
