INSTALLATION &
OPERATING GUIDE
DANTE®
–AES67
MICROPHONE INTERFACE
M55WDM55WD
The Audix Dante–AES67 microphone systems are the industry’s fi rst integrated
solution to eliminate multiple connectors by providing audio, LED status and logic
functionality with a single RJ45 cable connection. This design reduces conventional
wiring and installation time by 90% and eliminates wiring errors. Once the connection
is made to the network via the Audix DN4 interface, the Audix microphone(s) will be
automatically recognized and populated by model number in the Audix DSP plugin.
IN THE BOX
• M55D microphone
• Knurled fastener
• Seismic / restraint cable
• Spec sheet
• Installation guide
THE AUDIX INTEGRATED MICROPHONE SYSTEM | DANTE–AES67
SWITCH
DSP
AUDIX DN4
M55 D
M55D
M55 D
M55D
M55D
FIGURE 6
Connect the DN4/DN43 Dante-AES67
interface to a PoE switch (see DN4/
DN43 guide).

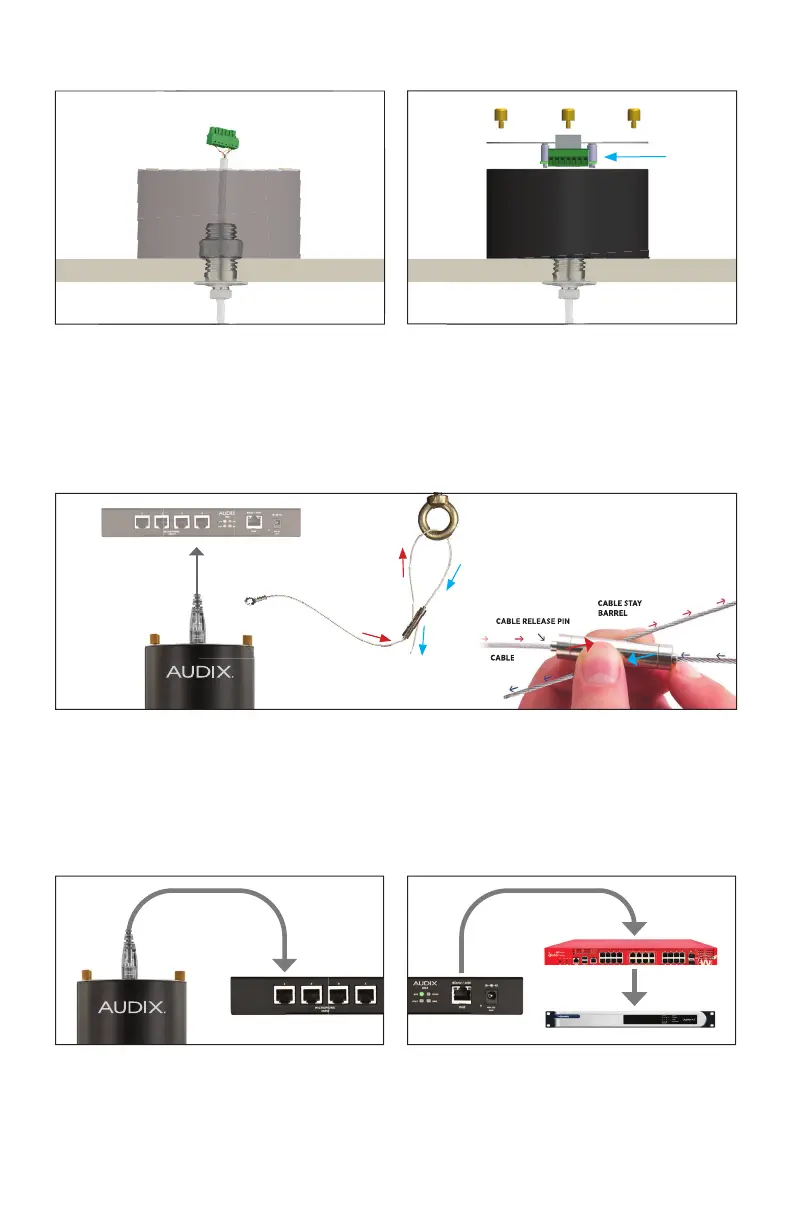

FIGURE 1
Drill a 3/4” (19mm) hole in the ceiling
tile. Place cylinder on top of hole after
removing the lid, and insert M55D collar
through the hole. Fasten nut.
FIGURE 3
Insert category cable into RJ45
receptacle of M55D and DN4/DN43
mic input. Use Audix Cat7 or shielded
category cable.
FIGURE 2
Plug in 7 pin microphone connector
into mating receptacle as shown above.
Refasten lid.
FIGURE 4
Seismic cable installation; Insert cable
through the top of cable stay barrel
pulling excess cable until taut. Place
cable eyelet under brass screw and
fasten.
FIGURE 5
Connect up to four microphones to the
Audix DN4 or one M3 and one single-
channel microphone to the Audix DN43
interface.
INSTALLATION
Product Specifications
| Brand: | Audix |
| Category: | Microphone |
| Model: | M55D |
