INSTALLATION &
OPERATING GUIDE
DANTE ®
–AES67
MICROPHONE INTERFACE
OVERVIEW
The Audix DN4 Dante–AES67 microphone interface is at the heart of an integrated
microphone system that is the fast, trouble-free way to stream Audix audio
performance through Ethernet networks. High-quality audio and all microphone
functions — including on-o contact closure and LED status indicators — are
available through a single CAT5 - CAT7 cable with RJ45 connections. This simple
confi guration eliminates wiring errors, accelerates installation, and reduces cost. The
result is true plug-and-play installation.
The DN4 features four inputs for Audix RJ45-equipped, single-element microphones
and has two 5V logic outputs per port, with source/sink capability for LEDs that
are controlled by network-connected DSPs and one logic input per single-element
microphone port for external contact closure. Low-pass and high-pass fi lter settings
are available on each audio channel, as are eight selectable gain levels, with all
settings confi gurable via software.
THE AUDIX INTEGRATED MICROPHONE SYSTEM | DANTE–AES67
IN THE BOX
DN4
User Guide
Mounting brackets (pair MNTDN), with attachment screws
Seismic cable restraint
OPTIONAL ACCESSORIES
Plugins for DSP processors
48VDC power supply (PSDN4C)

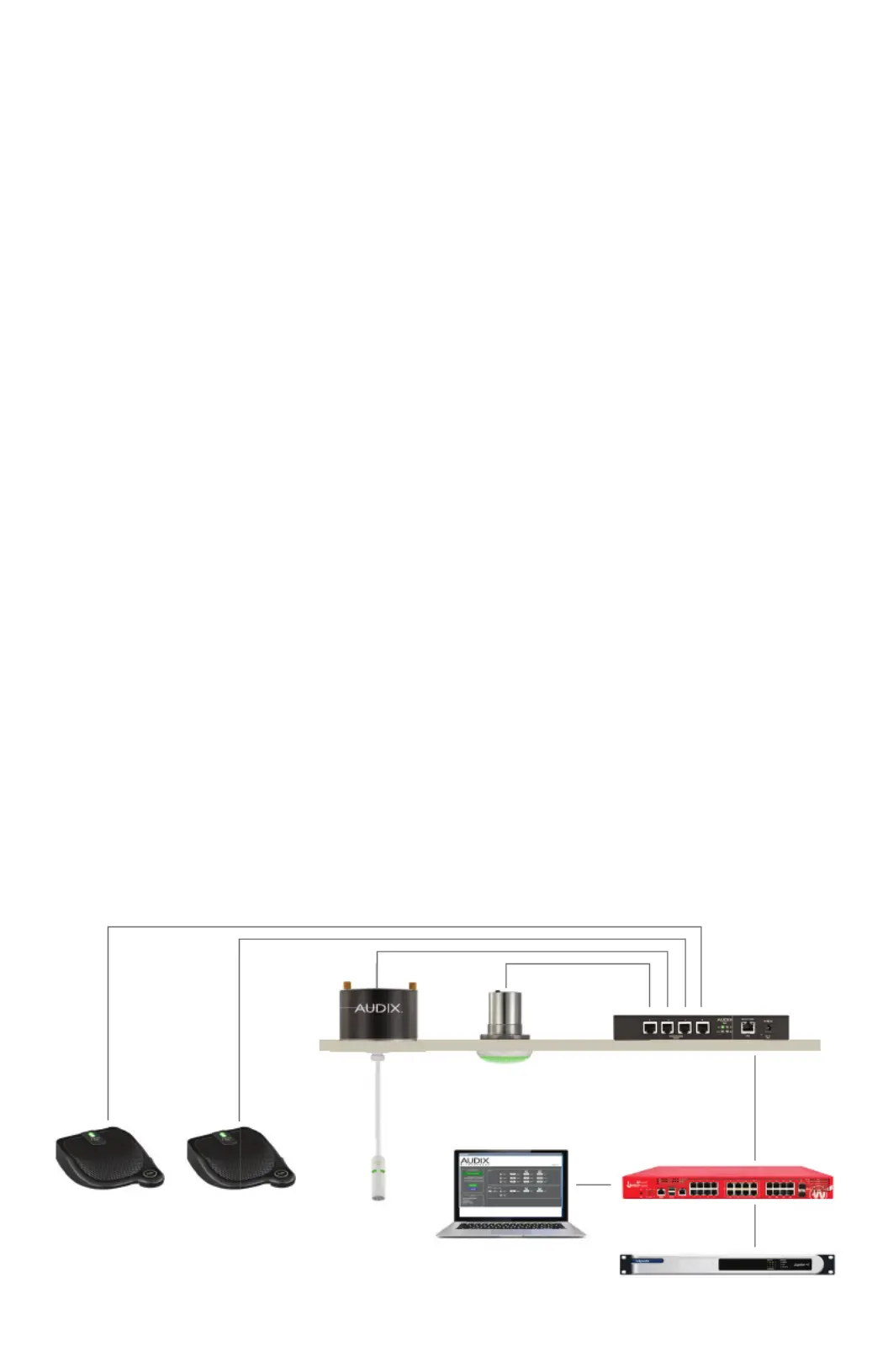

SWITCH
DSP
AUDIX DN4
M55D
5
HARDWARE FEATURES
1. Ports for Audix RJ45-equipped, single-element microphones
2. Status LED indicators
3. Ethernet and PoE RJ45 jack
4. Reset button
5. Optional external DC power supply input jack (PSDN4C) (when PoE is not available)
1 2 3
4
124.71 123.36
28.11
202.00
