Operating Manual
FR-8 and FR-16 Programmable Fader Control
Overview
The FR-8 and FR-16 are Ethernet-based programmable fader remote controllers for all Ashly
networked products with DSP capabilities. Each fader and it’s push button LED can be programmed
to adjust signal level, select input source, or mute the signal. The FR remotes are ideal for networked
sound systems in meeting rooms, houses of worship, courtrooms, or other applications where simple but
programmable real-time level control is required.
ASHLY AUDIO INC.
847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010
Toll-Free: (800) 828-6308 Fax: (585) 872-0739 www.ashly.com
2014 by Ashly Audio Corporation. All rights reserved worldwide.
All Trademarks referred to herein are the property of their respective owners.
Features
• 8 or 16 Assignable Faders with Master
• Push Button Switches with LED
• Mute/Unmute per Fader
• A/B Source Select per Fader (programmable)
• Two Signal Level Indicators per Fader
• User Defined Signal Level LED Thresholds
• Assignable Fader Scaling
• Front Panel Lockout
• Communication Failure Indicator
• Automatic IP Addressing
• User Defined Label Inserts
•
Wall Box, Rack, or Panel Cut-Out Mounting
Requirements
• Ethernet Network
• Class 1 IEEE 802.3af Power Over Ethernet
• Ashly Networkable Device with DSP
• PC Running
Microsoft® Windows XP or
higher, 32 & 64 bit
• Proteane Software v5.11 or Higher
Compatible Ashly Devices
• ne24.24M
• NE Two-Channel Amplifiers (with DSP)
• NE Multi-Channel Amplifiers (with DSP)
• NE4400, 4800, and 8800 DSP Processors
• Pema Amplifiers
• nXp Amplifiers
2
Front Panel
1) Push Button LED Label Window - Insert
label made from Ashly template doc (page 12)
2) Push Button LED - Used to switch fader
Mute or fader A/B Source Select. LED also
indicates signal level or fader status
3) Channel Fader - Adjusts level of targeted
DSP gain stage or output mixer source
4) Channel Fader Label Window - Insert
label made from Ashly template doc (page 12)
5) Power LED - Shows device is powered
6) Master Fader - Adjusts level of all
assigned channel faders
Rear Panel
1) RJ-45 Jack - Connects to Ethernet
Network with PoE or PoE injector
2) Link LED - Shows network is connected
3) Data LED - Shows Data is transferring
4) Lockout Connector - Use with any switch
to disable all front panel controls when closed
5) Serial Number and MAC Address - Used
for warranty or ash programming
FR Features (FR-8 not shown)
On Startup:
1. When the FR-8 or FR-16 is first connected or powered on, it attempts to communicate with
all devices it has been programmed to control, if any.
2. Once communication with the targeted device is established, it waits to transmit any fader or
switch position data until a control is physically changed by the user. At that point only the data for
that control is sent. This feature prevents sudden and unexpected changes when reconnecting or re-
starting the FR remote control, as well as when a new preset is recalled to the host device.
PLEASE NOTE: When in doubt, make sure all faders are either in the correct position or fully
down before reconnecting
3

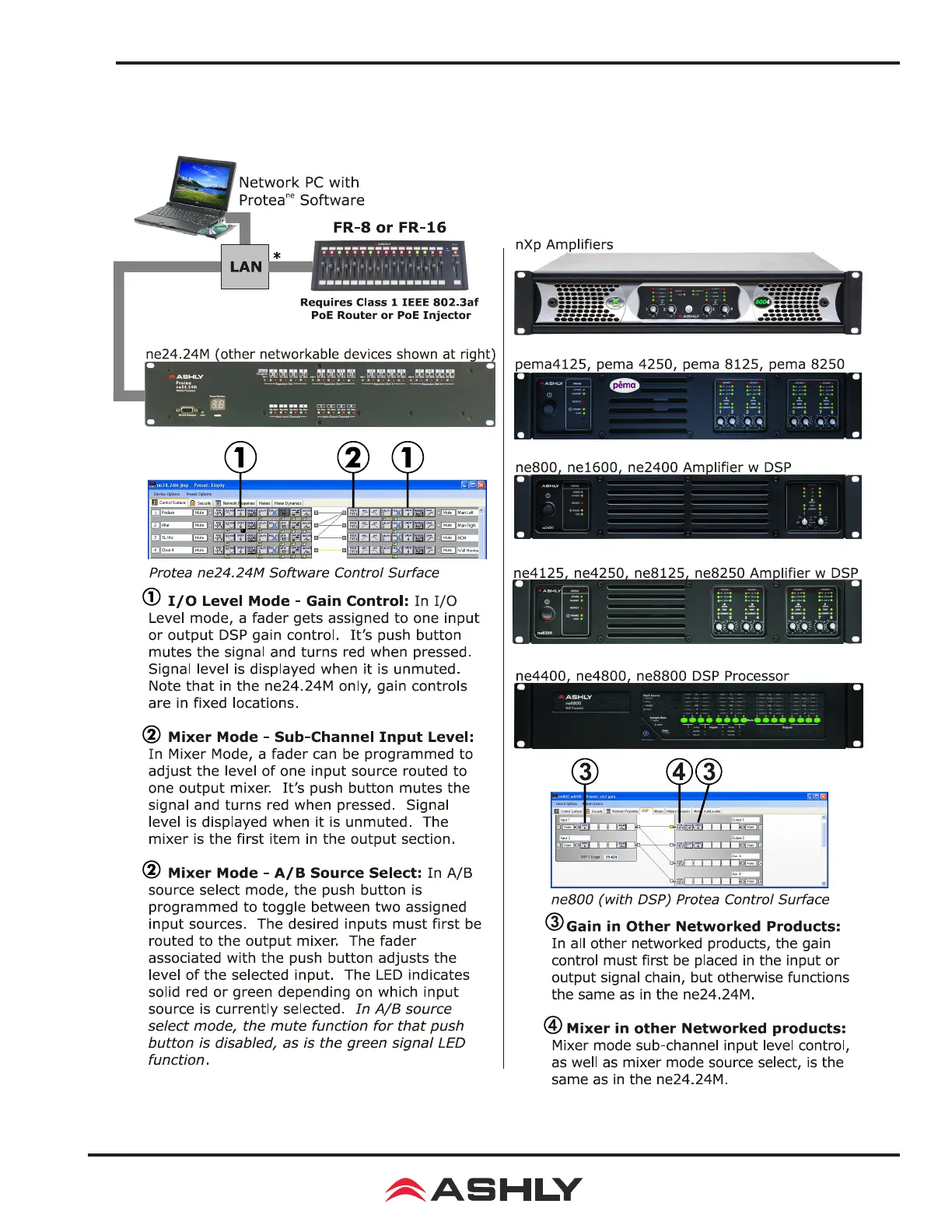

Typical Application
