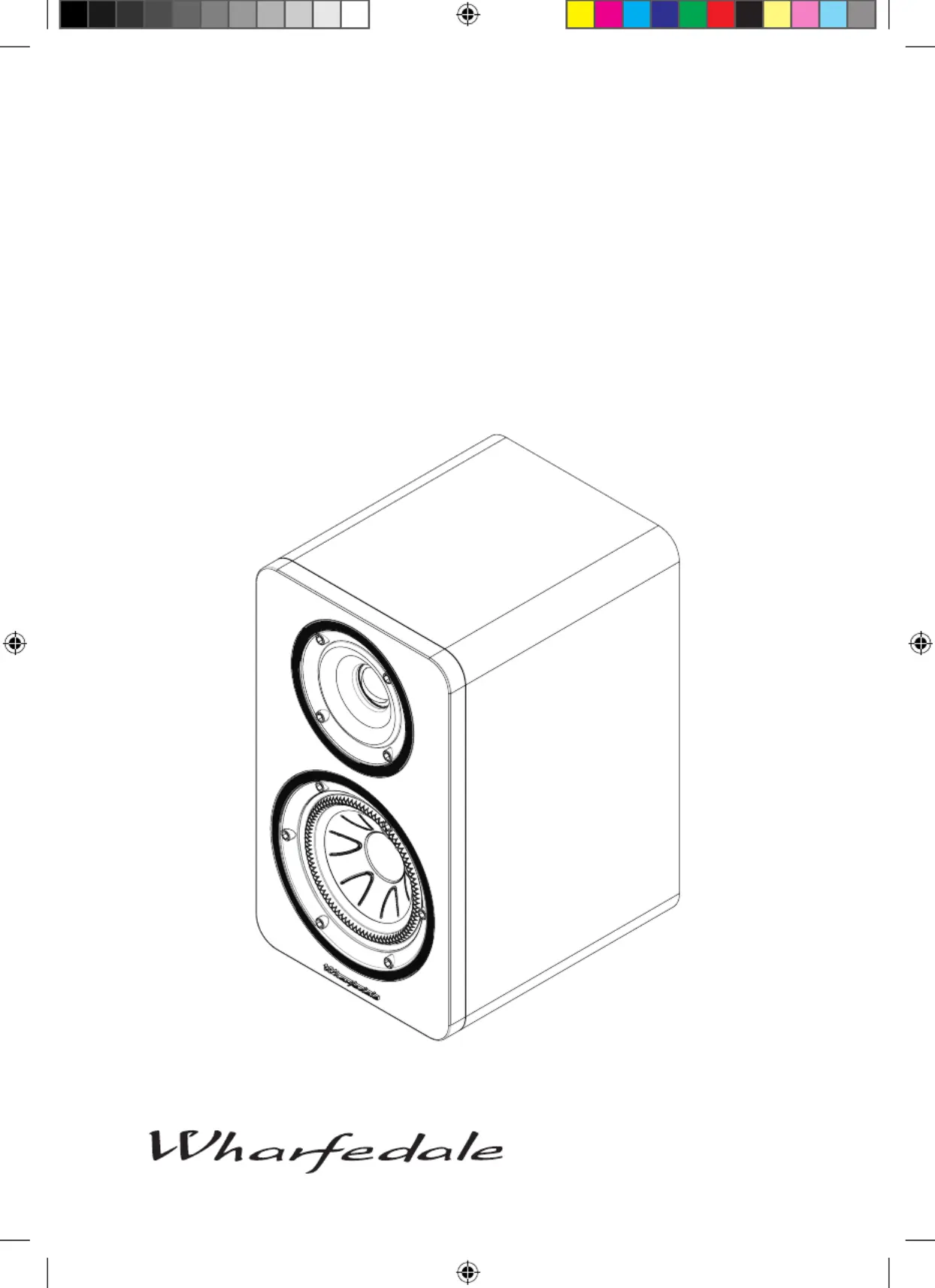

DIAMOND ACTIVE SERIES

Diamond A2

Diamond A1

User's Manual

diamond-A5.indd 1 2016-6-8 8:55:40

USER INSTRUCTIONS: Diamond Active Series

Correct disposal of this products. This

marking indicates that this product should

not be disposed with other household

wastes throughout the EU. To prevent

possi ble harm to t he environment or

human health from uncontrolled waste

di s p os a l , re c y c l e i t resp ons i b ly to

promote the sustainable reuse of material resources.

To return your used device, please use the return and

collection systems or contact the retailer where the

product was purchased. They can take this product for

environmentally safe recycling.

Thi s equ ipment is a Cl a ss II o r dou b le

insulated electrical appliance. It has been

design ed in such a way that it does not

require a safety connection to electrical earth.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with cloth.

Do not block any ventilation openings.

Instal l i n accordance w ith the ma nufa cturer’s

instructions.

Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

ampliers) that produce heat.

Do not defeat the safety purpose of the polarised or

grounding plug. A polarised plug has two blades with

one wider than the other. A grounding plug has two

blades and a third grounding prong. The wide blade

or the third prong is provided for your safety. If the

provided plug does not t into you outlet, consult an

electrician for replacement of the obsolete outlet.

Prot ect the pow er co rd from being wal ked on

or pin ch e d p art i cula r ly at plugs, c onveni e nce

receptacles, and the point where they exit from the

apparatus.

Only use attachments/accessories speciﬁed by the

manufacturer.

Use only with the cart, stand, tripod, bracket,

or table speciﬁed by the manufacturer, or

sold with the apparatus. When a cart or rack

is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

Unplug the apparatus during lightning storms or when

unused for long periods of time.

Refer all servicing to qualied personnel. Servicing is

required when the apparatus has been damaged in any

way, such as power supply cord or plug is damaged,

liquid has been exposed to rain or moisture, does not

operate normally, or has been dropped.

CAUTION: These servicing instructions are for use by

qualied service personnel only. To reduce the risk of

electric shock, do not perform any servicing other than

that contained in the operating instructions unless you

are qualied to do so.

WARNING: To reduce the risk of re or electric shock,

do not expos e this apparatus to rain or mo isture.

The apparatus shall not be exposed to dripping or

splashing and that objects lled with liquids, such as

vases, shall not be placed on apparatus.

WARNING: The mains plug/appliance coupler is used

as disconnect device shall remain readily operable.

No naked flame sources, such as lighted candles,

should be placed on the apparatus.

DO NOT place heavy objects on top of loudspeaker

cabinets. If you play them with the grilles removed be

careful to protect the drive units from children and

pets.

DO NOT change any connections to the subwoofer or

your system without rst switching o the power.

DO NOT use your amplier or receiver at its maximum

vol um e sett ing. This will p roduce hi gh level s o f

distortion which may damage your loudspeakers and

subwoofer. Allow your ampliﬁer a little headroom so

that it can operate without stress.

DO turn down the volume control on your amplier or

receiver before turning the equipment on or oﬀ. This

will protect your subwoofer against switching 'thumps'

and other spurious signals.

IMPORTANT SAFETY INFORMATION

Thi s symb ol indi ca t es th a t there are

imp orta nt operating and main tenance

instructions in the literature accompanying

this unit.

Thi s symbol indicates that dangerous

voltage constituting a risk of electric shock

is present within this unit.

WARN ING : TO R EDU C E TH E RISK OF F I R E O F

ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS

TO RAIN OR MOISTURE.

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR

WARNING: SHOCK HAZARD-DO NOT OPEN

diamond-A5.indd 1 2016-6-8 8:55:40

USER INSTRUCTIONS: Diamond Active Series

Introduction

For over 30 years, The Wharfedale Diamond Series has been the go-to speaker for entry level, high-delity

sound. Praised for articulated performance at an aﬀordable price, Diamond 200 series has won multiple

awards, with What Hi-Fi? Sound and Vision commenting on its sound quality as “Agile, far-reaching dynamics;

overowing with detail” (Diamond 220 - March 2015).

With such a rich history of high performance combined with aordability, Wharfedale proudly present Diamond

Active Series. The Diamond A1 is a bookshelf two-way speaker, and the A2, a floorstanding 2.5 way speaker.

The new wireless speakers incorporate everything music fans love about Diamond series into an easy to use

package, equipped to cater for a wealth of audio sources with an innovative approach to wireless technology.

How It Works

Unlike other wireless and active speakers where controls and inputs are often placed awkwardly on the back

panel, Wharfedale engineers have developed a unique hub, which works as the central console for your music.

The Diamond H1 Hub features Optical, Coaxial and RCA inputs on the rear panel with an additional Bluetooth

aptX connection for wireless integration of laptops, smart phones and tablet devices. It’s controlled gracefully

via the touch sensitive display, or for even more convenience you can use the included remote.

Once connected to your source, the Hub works independently from the speakers using the 5.8GHz wireless

frequency band. Place it on your TV stand, desktop, or wherever you want, without the worry of speaker

placement and trailing wires in-between the units. The only wires needed for the speakers are the supplied

power cables.

The Diamond A1 speakers and

H1 Hub work wirelessly, completely

independently of each other with

no interconnects.

Connect any Bluetoo th dev ice

and enjoy wireless playback with

the aptX codec for CD-like sound

quality.

Change source / volume and menu

parameter s with the i nc l

uded

remote.

Connect up to 3 devices to t h e

Wharfedale Diamond Hub via RCA,

Optical and Coaxial connections.

The units communicate between

each other on the 5.8GHz frequency

band for high qual i t y, los sless

playback.

OPT COAX RCA
