Page 1/2
Issue 3
1 947167
by
PagePac®

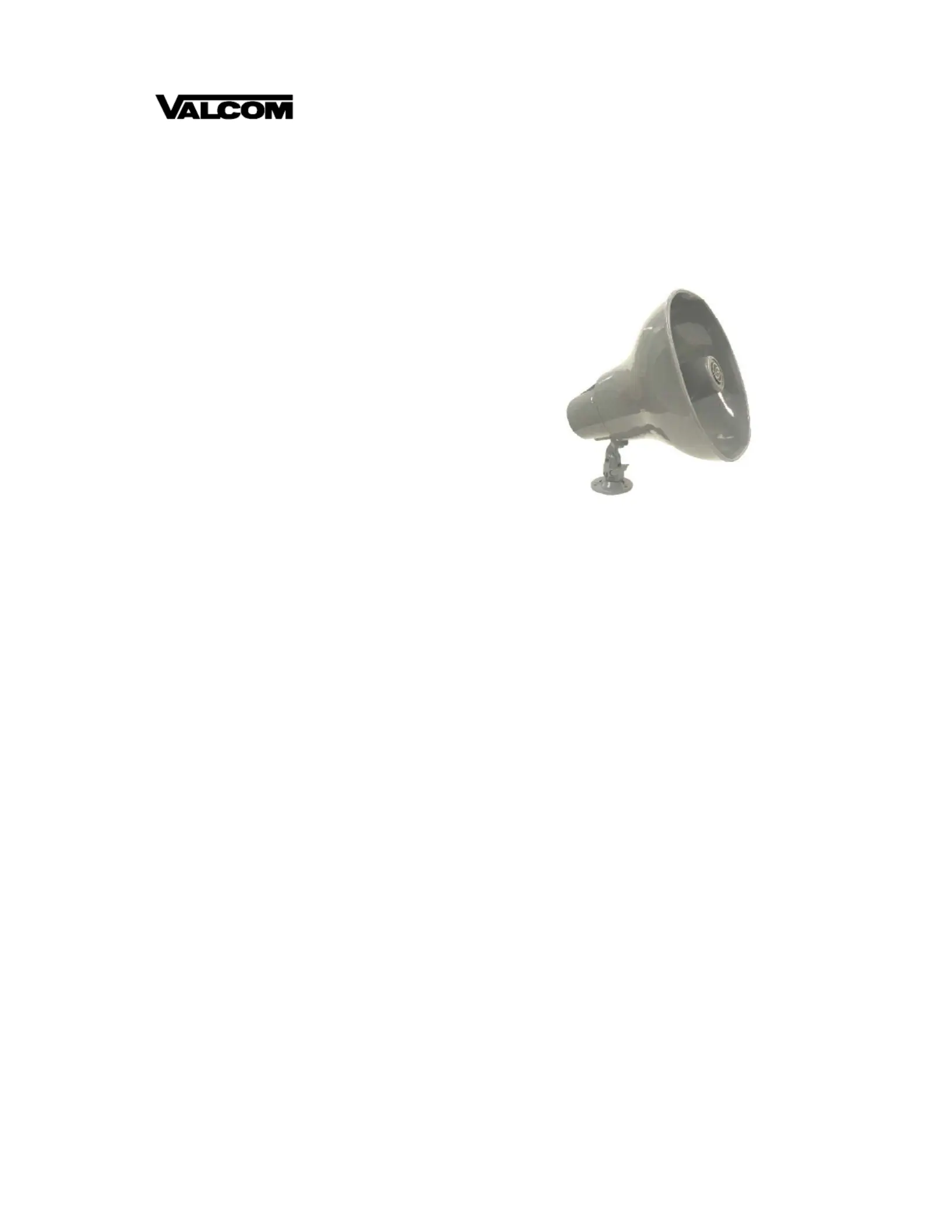

15 WATT HORN (70V) - V-5331200
30 WATT HORN (70V) - V-5331205
INTRODUCTION
The 15 Watt and 30 Watt 70 Volt Horns are
suitable for large and/or noisy areas such as
warehouse and manufacturing facilities.
Minimum effective mounting height for a horn is
15 feet, 20 feet is preferable. However, in a
system with talk-back (hands-free answer back)
the speaker may have to be mounted as low as
8 to 12 feet and set at a lower power setting.
Speakers must be mounted in locations that
provide a clear sound path to the area paged. In
areas with high shelving, more horns may be
needed for adequate coverage. To avoid
feedback, do not place telephones or
microphones near horns. Various power outputs
can be easily selected on the speakers using
the rotary power switch.
SPECIFICATIONS
FEATURES
• Has variable wattage settings
(see Tables 1 and 2)
• Works with 25V or 70V systems
Nominal Specifications
• Frequency Response:
15W (275Hz - 14kHz)
30W (225Hz - 14kHz)
• Dispersion:
15W (110°) / 30W (100°)
• dB SPL @ 1W, 1 Meter:
15W (111dB) / 30W (112dB)
Power Requirements
• 15W: 25V system: .225W to 1.87W adjustable
70V system: .25W to 15W adjustable
• 30W: 25V system: 1.9W to 15W adjustable
70V system: 2W to 30W adjustable
Weight/Dimensions
• 15 Watt Horn (4 lbs./1.8 kg)
8"W x 8"H x 9"D (20.3 x 20.3 x 22.9 cm)
• 30 Watt Horn (6 lbs./2.7 kg)
10"W x 9.5"H x 10.5"D
(25.4 x 24.1 x 26.7cm)
Environment
• Temperature: 0 to 40°C (32 to 104°F)
• Humidity: 0 to 85%
INSTALLATION
Wire Connections
A clear plastic cover protects the horn screw
terminals and provides strain relief for the wires.
1. Remove the two screws from the plastic cover.
2. Connect the audio wires to the horn.
3. Connect the (+) 70V speaker wire to
terminal 2 (see Figure 1).
4. Connect the (-) common side speaker wire to
terminal 1 (see Figure 1).
5. Do not replace the plastic cover until final power
adjustments have been made.
2 947167
Final Power Adjustments
While a page is in process, adjust the power tap
setting control with a screwdriver. Turn
clockwise to increase the volume (see Figure 1).
NOTE: Protect hearing when working around
horns.
TECHNICAL ASSISTANCE
Assistance in troubleshooting is available from
the factory. When calling, have a VOM, a
telephone test set available and call from the job
site. Call (540) 563-2000 and press 1 for
Technical Support or visit our websites at
http://www.pagepac.com and www.valcom.com.
Should repairs be necessary, attach a tag to the
unit clearly stating company name, address,
phone number, contact person, and the nature
of the problem. Send the unit to:
Valcom, Inc.
PagePac® Repair Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
FIGURE 1
Table 1: 15 WATT SETTINGS
SWITCH
SETTING
70V
TAP
SETTINGS
25V
TAP
SETTINGS
1 0.25 -
2 0.50 -
3 0.90 -
4 1.80 0.225
5 3.80 0.475
6 7.50 0.93
7 15.0 1.87
Table 2: 30 WATT SETTINGS
SWITCH
SETTING
70V
TAP
SETTINGS
25V
TAP
SETTINGS
1 2 *
2 3.8 *
3 7.5 *
4 15.5 1.9
5 30 3.7
6 * 7.0
7 * 15.0
* Do not use this tap on respective Volts
