V-1001
P-TEC SURFACE MOUNT
AMPLIFIED CEILING SPEAKER
INTRODUCTION
The V-1001 is a surface mounted speaker that
is self-amplified and is capable of reproducing
voice paging as well as background music. The
V-1001 has an externally accessible volume
control that can be adjusted by a screwdriver
through the side hole on the housing. All
speakers require -24VDC, 50mA. The baffle is
designed for mounting on acoustic tile, such as
those normally found in suspended-ceilings and
can be mounted without cutting large holes in
the tile. The mounting pins can be removed for
mounting in a hard ceiling. The speaker
housing has screw holes for securing speaker
without mounting pins. Although the P-TEC
speakers are designed specifically for standard
suspended ceilings, they can be used on many
types of ceiling materials. Two pair category
3/5/5E/6 UTP cable recommended.
INSTALLATION ( )see Figure 1
1. Lift the adjacent ceiling tile and slide it out of
the way.
2. Pierce hole in tile where speaker is to be
mounted with a screwdriver. Feed wire
through hole to connect to speaker.
3. Make connections to amplifier (see Figure
2).
4. Install the speaker by inserting the mounting
pins through the ceiling tile and hold the
speaker in place.
5. Place the speaker mounting clips over
mounting pins (so pins slide through clips).
6. If necessary, adjust paging volume after
installation. The volume control is located
on the side of the speaker. Use a small
screwdriver to turn the control.
7. Install the volume control cover found in the
accessory pack.
2
Page
Out
Valcom Page
Control
(Tip/A)
(Ring/B)
(-24Vdc)
(Gnd)
Valcom -24 Vdc
Power Supply
One-W ay
Amplified
Speaker

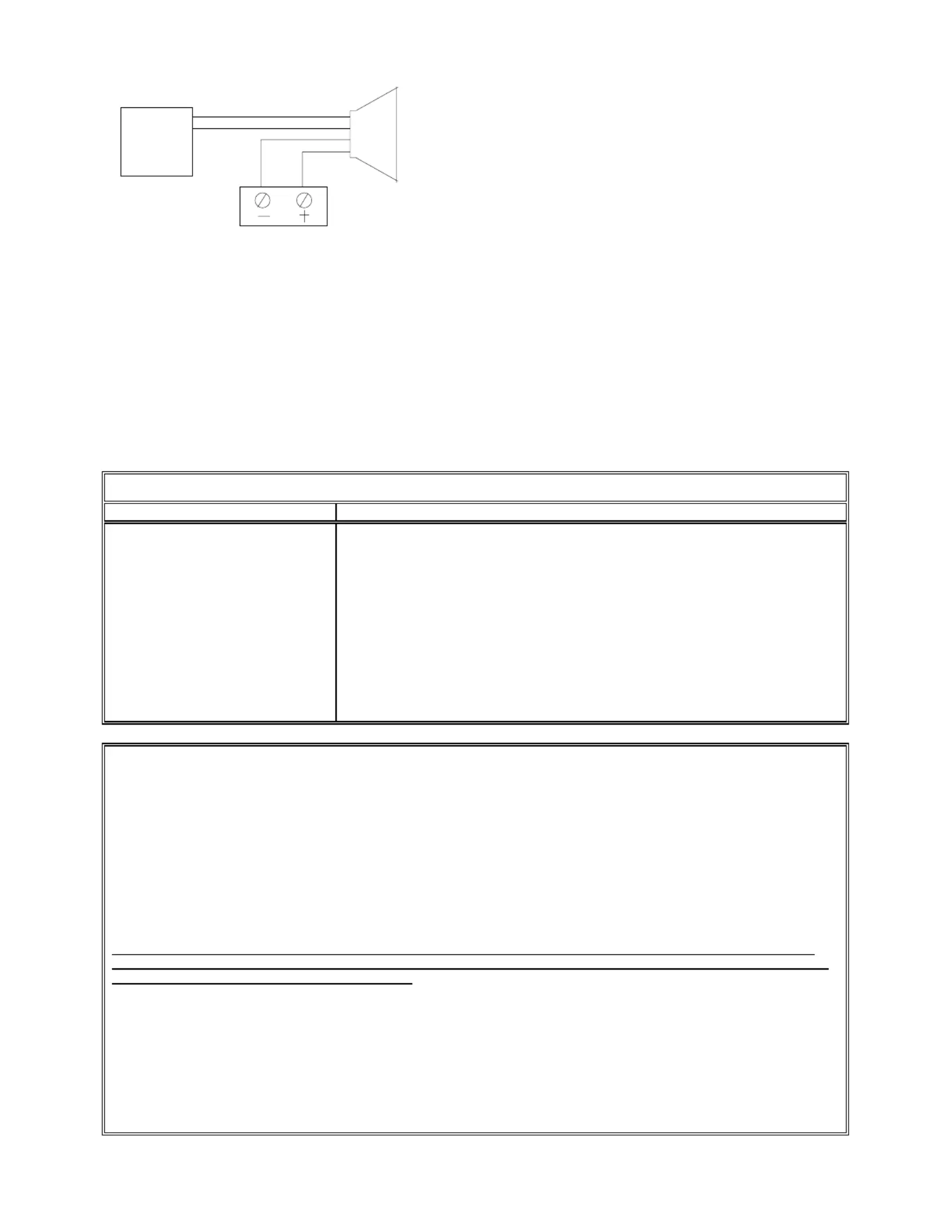

Figure 2. Typical Connections
NOTE: Do not connect this speaker directly
to a 25/70/100 Volt amplifier as damage to
both the amplifier and speaker may occur.
A V-1095 may be used to allow the use of
Valcom self-amplified speakers on 70V
speaker lines.
Dimensions/Weight
• 8.00” Dia x 2.50” H (20.32cm x 6.35cm)
• .75 lbs. (.34 kg)
TECHNICAL ASSISTANCE
When trouble is reported, verify there are no broken
connections. Assistance in troubleshooting is
available from the factory. Call (540) 563-2000 and
press 1 for Technical Support or visit our website at
http://www.valcom.com.
Valcom equipment is not field repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the unit
clearly stating company name, address, phone
number, contact person and nature of the problem.
Send the unit to:
Valcom, Inc.
Repair & Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
TROUBLESHOOTING CHART
SYMPTOMS ACTIONS
1. No audio from speaker 1a. Verify that volume control is turned up (Clockwise).
1b. Using a lineman's test set, monitor for the proper audio level on the Tip and Ring
leads and if necessary also at the source.
2. Low volume from speaker 2a. Verify that volume control is turned up.
2b. Verify voltage at the speaker assembly when in use, -18 to -24VDC required.
2c. Using a lineman's test set, monitor for the proper audio level on Tip and Ring
leads. It is possible that some low-level audio will be heard with only one side of
Tip and Ring connected.
3. Loud squeal (Feedback) 3a. Turn down (Counter-clockwise) volume of the speaker.
3b. Increase the distance between the telephone and speaker.
3c. Install a noise canceling handset on the telephone in severe problem areas.
3d. Add a V-9964, Digital Feedback Eliminator.
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service
for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or
refund of any such defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse or negligence after the original shipment;
3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service
charge plus parts and labor will be applied to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5. all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (major repairs will
be subject to additional charges for parts and labor).
This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be
liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection
with the purchase, operation or use of the product.
This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the
carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the
F.O.B. point.
Headquarters: In Canada
Valcom, Inc. CMX Corporation
5614 Hollins Road 35 Van Kirk Drive #11 and 12
Roanoke, VA 24019-5056 Brampton, Ontario L7A 1A5
Phone: (540) 563-2000 Phone: (905) 456-1072
FAX: (540) 362-9800 FAX: (905) 456-2269
2
