TECHNICAL ASSISTANCE

When trouble is reported, verify there are no broken connections to the unit.

Assistance in troubleshooting is available from the factory. When calling, you

should have a Volt-Ohm meter and a lineman's test set available and be calling from

the job site. Call (540) 563- -2000 and ask for Technical Support, or call (540) 767 1555

for Valcom 24-hour Faxback System or visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in

Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating

your company name, address, phone number, contact person and the nature of the

problem. Send the unit to: Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under

conditions of normal use and service for a period of one year from the date of shipment. The

obligati on under this warranty shall be limited to the replacement, repair or refund of

any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed

units are unopened (A service charge plus parts and labor will be applied to units

defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units 'out of warranty' are subject to a service charge. The service charge will cover

minor repairs (Major repairs will be subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no

event shall Valcom, Inc. be liable for any anticipated profits, consequential damages, loss of

time or other losses incurred by the buyer in connection with the purchase, operation or use

of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is

received in damaged condition, the carrier should be notified immediately. Claims for such

damage should be filed wi th the carrier involved in accordance with the F.O.B. point.

Headquarters:

Valcom, Inc.

5614 Hollins Road

Roanoke, VA 24019-5056

Phone: (540) 563-2000

FAX: (540) 362-9800

In Canada:

CMX Corporation

35 Van Kirk Drive #11 and 12

Brampton, Ontario L7A 1A5

Phone: (905) 456-1072

FAX: (905) 456-2269

INSTALLATION INSTRUCTIONS FOR

SIGNATURE SERIESTM, HIGH FIDELITY

AMPLIFIED IN-WALL SPEAKER

MODEL NO. V-1450

Issue 5 947145

TROUBLESHOOTING CHART

SYMPTOMS

ACTIONS

No audio from

speaker

Low volume

from sp eaker

Loud squeal

(Feedback)

1. Verify volume control is turned up (Clockwise).

2. Using a lineman's test set, check for proper audio level on Tip/A

and Ring/B leads and if necessary at the source.

1. Verify volume control is turned up.

2. Check voltage at speaker when in use (- -18 to 24VDC required).

3. Using a lineman's test set, check for proper audio level on Tip/A

and Ring/B leads. It is possible some low level audio will be

heard with only one side of Tip/A and Ring/B connected.

1. Decrease volume of speaker (Counterclockwise).

2. Increase the distance between telephone and speaker.

3 Install confidencer on telephone in severe problem areas

VALCOM SIGNATURE SERIES

, HIGH FIDELITY

SELF-AMPLIFIED IN-WALL SPEAKER

The Valcom Signature Series™ In-Wall Speaker, V- -1450, is a high fidelity, self

amplified (6 Watt) speaker and may be used to provide one-way paging and high

quality music reproduction from any Valcom Page Control. This speaker has an

externally accessible volume control located behind the grille and is screwdriver

adjustable. The V-1450 will cover an area up to 600 square feet and should be spaced

20 feet apart. Good quality paging will be heard up to 30 feet in front of the speaker.

The V-1450 requires -24VDC, 200mA (4 Valcom power units). The speaker is available

in white and supplied with a trim ring and grille.

NOTE: No power amplifier required. Do not connect this speaker directly to a

25/70/100 Volt amplifier as damage to both the amplifier and speaker

may occur. (Recommended nominal input level to the V- -1450 is

10dBm).

Mounting/Connections

CAUTION: Before cutting hole, identify and locate all plumbing and

electrical wiring.

Using the enclosed cutout template, mark outline of cutout on wall. Make

sure speaker is centered between any wall studs. Using the appropriate tool,

cut a hole in the wall following the template outline.

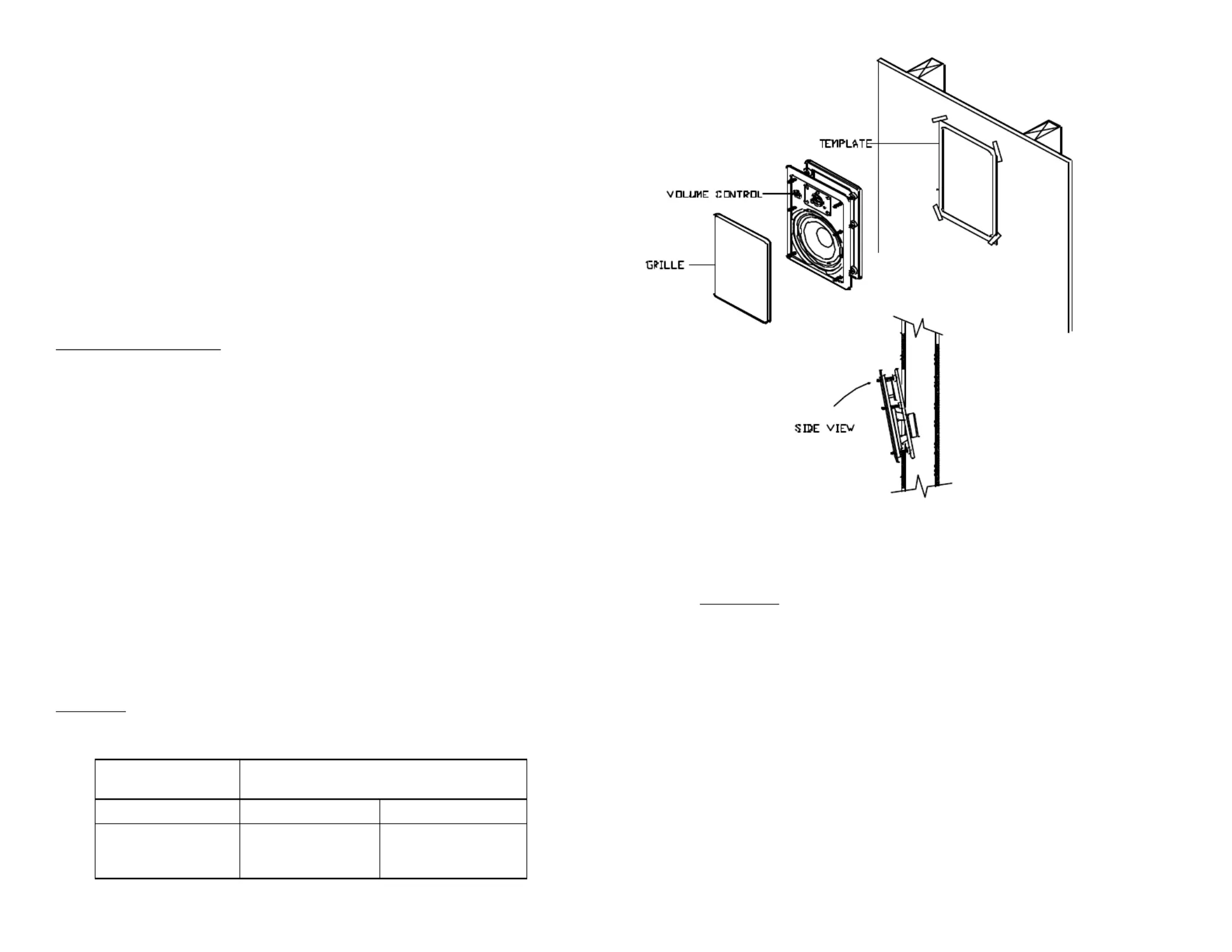

Insert a small screwdriver tip between the grill and speaker to remove grill from the

front of the speaker assembly. Assemble speaker, mounting frame and hardware as

shown in the diagram. Do not tighten frame completely.

After assembling mounting frame, make connections to the terminal block. Insert

stripped wire into appropriate terminal and tighten with screwdriver. Each connector

accepts 18 to 24AWG wire. With the tweeter on top, place mounting bracket into

hole in the wall. Push speaker assembly flush to wall and slide up 1/2 inch. Tighten

two center screws first, then tighten the remaining screws. Set volume control to 1/2

volume and test. Press grill into slot around speaker assembly.

NOTE: Exercise caution when handling speaker assembly with grill removed.

Mounting

Dimensions/Weight

• 12.00"H x 8.65"W x 3.20"D (30.48cm H x 21.97cm W x 8.13cm D)

• 3 lbs (1.36 kg)

FCC Notice

NOTE: The equipment has been tested and found to comply with the limits for

Class A digital devices, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses

and can radiate radio frequency energy. If not installed and used in accordance with

the instruction manual, it may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his

own expense.

NOTE: The manufacturer is not responsible for any radio or TV interference caused

by unauthorized modifications to this equipment. Such modifications could void the

user's authority to operate the equipment.

Recommended Quantity of Speakers per Specific Power Run

(Standard Category 3 Twisted Pair Telephone Wire)

Speakers per

Power Run

Wire Run Length (Feet)

V-1450

24AWG

22AWG

125

250

500

200

400

800

Product Specifications

Brand:	Valcom
Category:	Speaker
Model:	V-1450
