VSP-V-1090

Issue 3

1947790

V-1090 FLEXHORN

45 OHM TALKBACK HORN

INTRODUCTION

The Valcom V-1090 Flexhorn is a 45 Ohm talkback

horn designed to be used with Valcom “handsfree”

talkback control units. This horn is weather proof and

can be used indoors or outside in environments ranging

from -20 to +55 degrees C.

Model V-1090-GY Gray

Model V-1090-BG Beige

Model V-1090-W White

CONNECTIONS

White - Tip/A

Black - Ring/B

DIMENSIONS/WEIGHT

• 6.8”H x 8.3”W x 3.3”D

(17.3cm H x 21.1cm W x 8.4cmD)

• 2 lbs. (.91 kg)

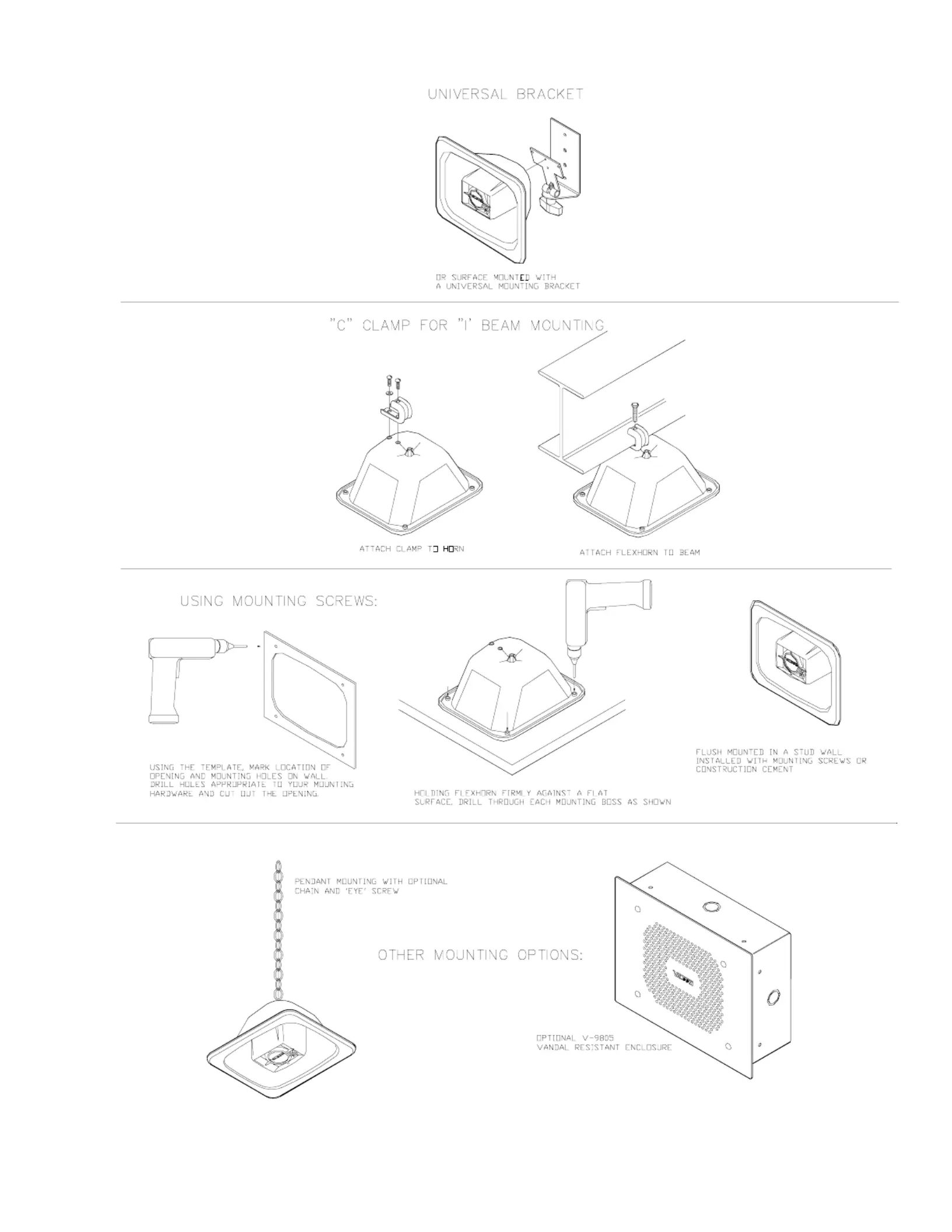

MOUNTING

FLUSH MOUNT

Using the template packaged with the speaker, draw the

speaker outline on the wall to be cut. Make appropriate

wiring connections and test the speaker for operation.

Using appropriate mounting screws (not furnished)

drill and mount the flange as shown.

UNIVERSAL BRACKET

Loosen or separate the universal bracket leaves by

loosening or removing the handle and hardware. Using

the back leaf as a template, mark the wall through the

mounting holes, drill and mount to the wall using

appropriate screws (not furnished) or mount directly to

a junction box. Mount the T-bracket to the back of the

horn as shown using the (2) ½" screws provided.

"C" CLAMP FOR "I" BEAM

MOUNTING

A "C" clamp is provided with the horns to allow

mounting to a beam. Place the bolt through the hole in

the bottom of the base to secure the "C" clamp to the

beam. It is suggested that the horn be mounted to the

underside of the "I" beam to provide the maximum of

positioning adjustments. Mount “C” clamp with (2)

1/2” screws provided.

TECHNICAL ASSISTANCE

When trouble is reported, verify the unit is properly

connected and there are no broken connections leading

to this unit. Ascertain volume control is turned up.

Assistance in troubleshooting is available from the

factory. When calling, you should have a VOM and a

test set and be calling from the job site. Call (540)

427-3900 and ask for Technical Support, or call (540)

427-6000 for Valcom 24-Hour Automated Support or

visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc.

maintains service facilities in Roanoke, VA. Should

repairs be necessary, attach a tag to the unit clearly

stating company name, address, phone number, contact

person, and the nature of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

2947790

TROUBLESHOOTING CHART

PROBLEM PROBABLE CAUSE AND CORRECTION

No sound in page mode. - Check tip and ring for audio at speaker.

- Check tip and ring for audio at control unit.

Low sound in page mode. - Check volume controls at page control.

Poor listening in talkback

mode.

- Check talkback volume control at page control. Set control where audio is clearly

audible.

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and

service for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement,

repair or refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim,

2. the defect is not the result of damage, misuse, or negligence after the original shipment.

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (A service

charge plus parts and labor will be applied to units defaced or physically damaged),

4. freight charges for the return of products to Valcom are prepaid,

5. all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (Major repairs will

be subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be

liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection

with the purchase, operation, or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the

carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the

F.O.B. point.

Headquarters: In Canada

Valcom, Inc. CMX Corporation

1111 Industry Avenue 35 Van Kirk Drive #11 and 12

Roanoke, VA 24013 Brampton, Ontario L7A1A5

Phone: (540) 427-3900 Phone: (905) 456-1072

FAX: (540) 427-3517 FAX: (905) 456-2269
