VSP V- -1080

Issue 3

1 947780

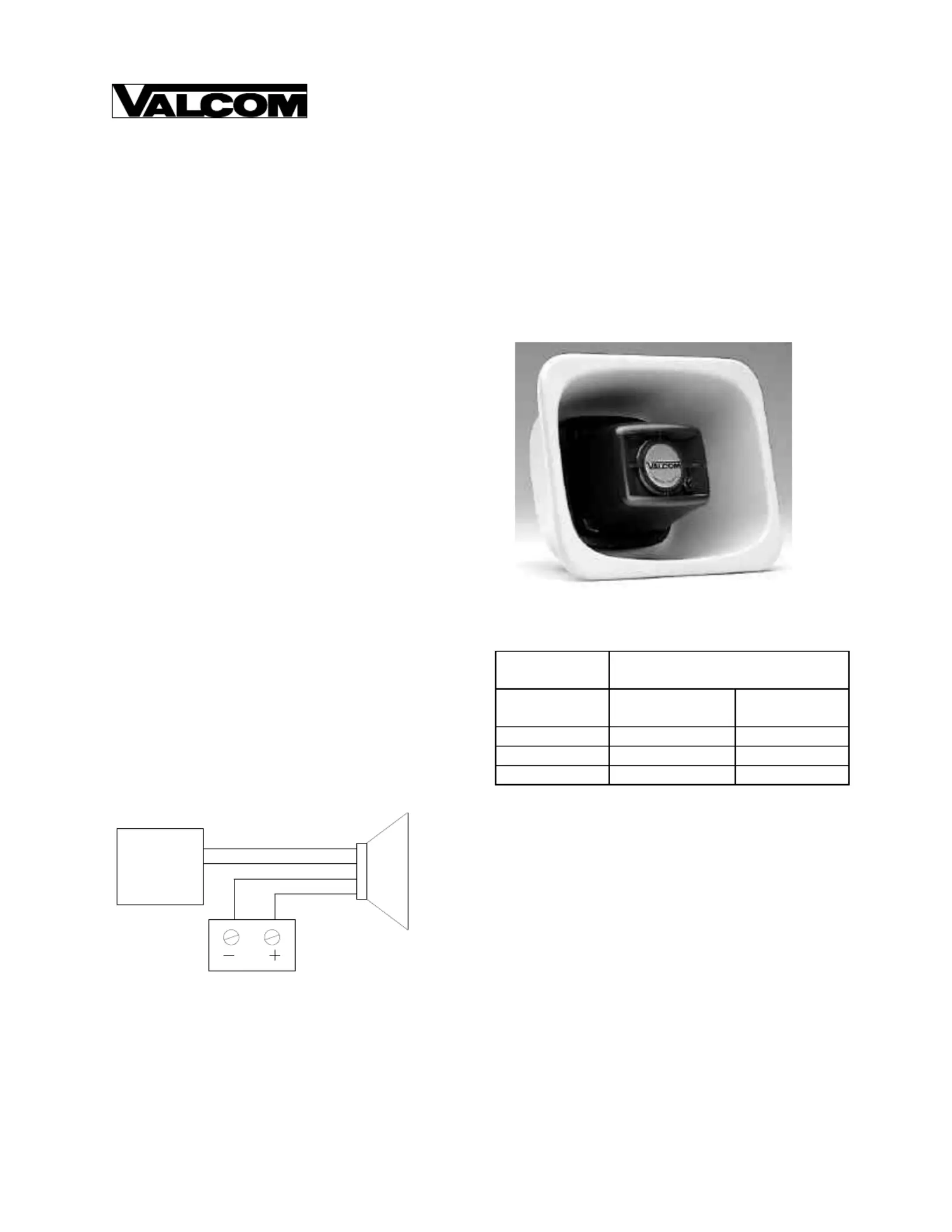

V-1080 FLEXHORN

THREE WATT ONE-WAY PAGING HORN

INTRODUCTION

The Valcom V- -1080 Flexhorn is a one way

self-amplified paging horn designed to provide voice

paging as well as background music. This horn is

weatherproof and can be used indoors or outside in

environments ranging from -20 to +55°C. A volume

control is accessible on the front of the cone. The horn

is offered in gray, beige and white.

Model V- -1080 GY Gray

Model V- -1080 BG Beige

Model V- -1080 W White

Dimensions/Weight

• 6.80"H x 8.30"W x 3.30"D

(17.27cm H x 21.08cm W x 8.38cm D)

• 2.1 lbs. (0.95 kg)

The V- -1080 requires 24VDC, 150mA (3 Valcom

Power Units) and is FCC Part 68 Registered under

BAFUSA-69358- -KX N.

CONNECTIONS

NOTE: Do not connect this speaker directly to

a 25/70/100 Volt amplifier as damage to both

the amplifier and speaker may occur. A V-1095

can be used to provide an interface between a

centrally amplified speaker line and Valcom

self-amplified horns.

POWER WIRE RUN

# Horns per

Power Run

Wire Run Length (feet)

V-1080

(3 Watts)

24 AWG

22 AWG

5 250 400

2 500 800

1 760 1200

MOUNTING INSTRUCTIONS

FLUSH MOUNT

Using the template packaged with the speaker, draw the

speaker outline on the wall to be cut. Make appropriate

wiring connections and test the speaker for operation.

Using appropriate mounting screws (not furnished)

drill and mount the flange as shown.

UNIVERSAL BRACKET

Loosen or separate the universal bracket leaves by

loosening or removing the handle and hardware. Using

the back leaf as a template, mark the wall through the

mounting holes, drill and mount to the wall using

appropriate screws (not furnished) or mount directly to

a junction box.

(Tip/A) Green

(Ring/B) Red

(-24VDC) White

(GND) Black

One-Way

Amplified

Speaker

Page

Out

Valcom Page

Control

Valcom -24VDC

Power Supply

Mount the T-bracket to the back of the horn as shown

using the (2) ½ inch screws provided.

"C" CLAMP FOR "I" BEAM MOUNTING

A "C" clamp is provided with the horns to allow

mounting to a beam. Place the bolt through the hole in

the bottom of the base to secure the "C" clamp to the

beam. It is suggested that the horn be mounted to the

underside of the "I" beam to provide maximum

positioning adjustments. Mount "C" clamp with (2) ½

inch screws provided.

TECHNICAL ASSISTANCE

When trouble is reported, verify the unit is properly

connected and there are no broken connections leading

to this unit. Ascertain volume control is turned up.

Assistance in troubleshooting is available from the

factory. When calling, you should have a VOM and a

test set and call from the job site. Call (540) 563-2000

for Technical Support or (540) 767-1555 for Valcom

24-hour Automated Support or visit our website at

http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc.

maintains service facilities in Roanoke, VA. Should

repairs be necessary, attach a tag to the unit clearly

stating company name, address, phone number, contact

person and the nature of the problem. Send the unit to:

Repair and Return Dept.

Valcom, Inc.

5614 Hollins Road

Roanoke, VA 24019-5056

TROUBLESHOOTING CHART

PROBLEM PROBABLE CAUSE AND CORRECTION

No Sound - Check volume control turned up (clockwise).

- - Check presence and polarity of 24VDC and GND.

- Using a telephone test set, check for the proper audio level on the Tip and Ring

leads and if necessary also at the source.

Low Volume - Check volume control is turned up (clockwise).

- Check voltage at the horn when in use, - -20 to 24VDC required.

- Using a telephone test set, check for proper audio level on Tip and Ring leads.

It is possible that some low level audio will be heard with only one side of Tip

and Ring connected.

Loud Squeal - Lower volume of horn.

- Aim horn in different direction.

- Increase the distance between the telephone and horn.

- Install a confidencer on the telephone in severe problem areas.

- - Add a V 9964, Stacking Feedback Eliminator.

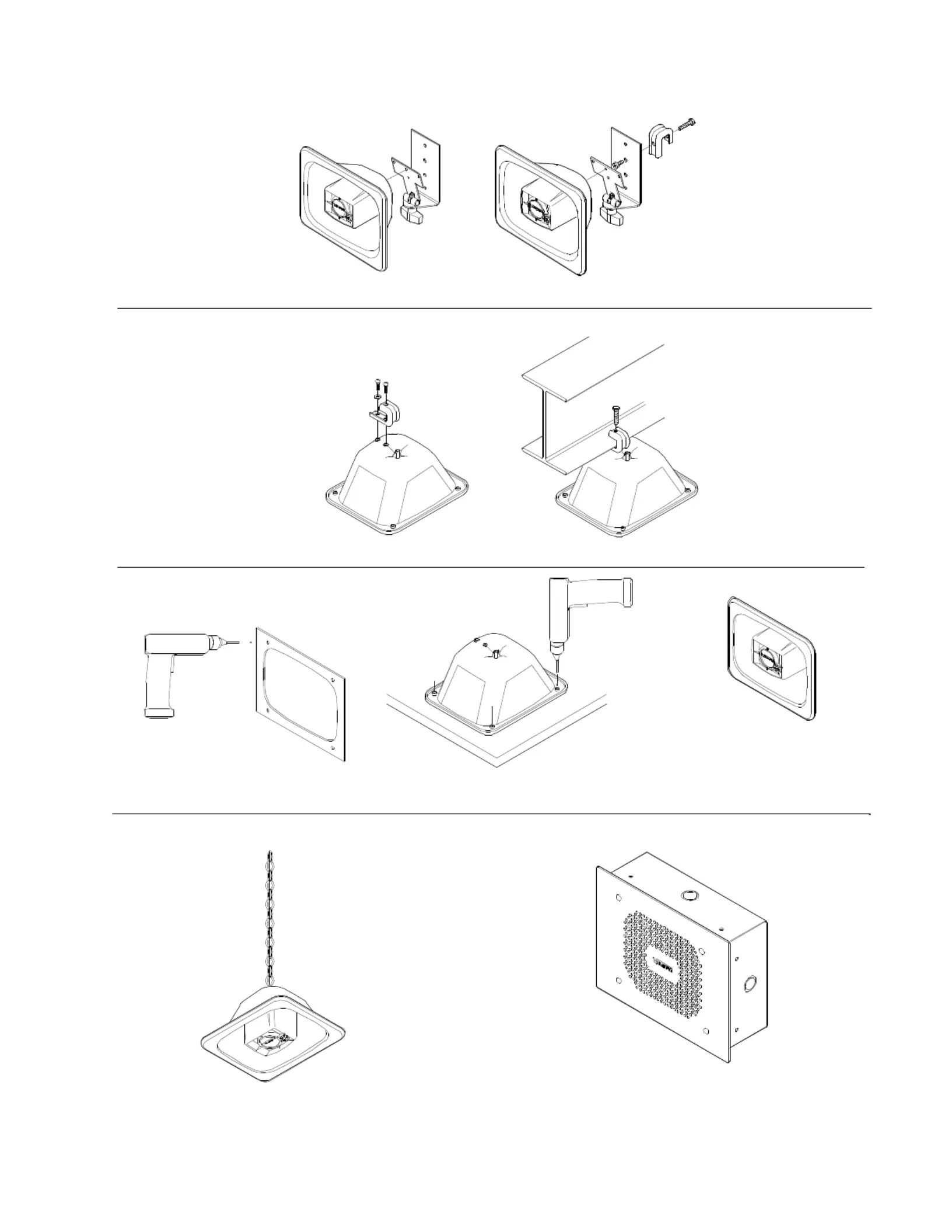

UNIVERSAL BRACKET WITH CLAMP

SURFACE MOUNTED WITH A

UNIVERSAL MOUNTING BRACKET

ATTACH CLAMP TO HORN ATTACH FLEXHORN TO BEAM

USING THE TEMPLATE, MARK LOCATION OF

OPENING AND MOUNTING HOLES ON WALL.

DRILL HOLES APPROPRIATE TO MOUNTING

HARDWARE AND CUT OUT THE OPENING.

HOLDING FLEXHORN FIRMLY AGAINST A FLAT

SURFACE, DRILL THROUGH EACH MOUNTING BOSS

AS SHOWN.

FLUSH MOUNTING IN A STUD WALL

INSTALLED WITH MOUNTING SCREWS

OR CONSTRUCTION CEMENT.

PENDANT MOUNTING WITH

OPTIONAL CHAIN AND

'EYE' SCREW

OPTIONAL V-9805

VANDAL RESISTANT ENCLOSURE

OTHER MOUNTING OPTIONS:

FLUSH MOUNT USING MOUNTING SCREWS:

"C" CLAMP FOR "I" BEAM MOUNTING

UNIVERSAL BRACKET
