Page 1/2
TECHNICAL ASSISTANCE
When trouble is reported, verify there are no broken connections to the unit.
Assistance in troubleshooting is available from the factory. When calling, you
should have a VOM and a lineman's test set available and be calling from the job
site. Call (540) 563- -2000 and ask for Technical Support, or call (540) 767 1555 for
Valcom 24-hour Faxback System or visit our website at http://www.valcom.com.
Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating
your company name, address, phone number, contact person, and the nature of the
problem. Send the unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products to be free from defects in materials and workmanship under
conditions of normal use and service for a period of one year from the date of shipment. The
obligation under this warranty shall be limited to the replacement, repair or refund of any such
defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim,
2. the defect is not the result of damage, misuse, or negligence after the original
shipment,
3. the product has not been altered in any way or repaired by others and that
factory sealed units are unopened (A service charge plus parts and labor will
be applied to units defaced or physically damaged),
4. freight charges for the return of products to Valcom are prepaid,
5. all units 'out of warranty' are subject to a service charge. The service charge will
cover minor repairs (Major repairs will be subject to additional charges for parts
and labor).
This warranty is in lieu of and excludes all other warranties, expressed or implied, and in
no event shall Valcom, Inc. be liable for any anticipated profits, consequential damages,
loss of time or other losses incurred by the buyer in connection with the purchase,
operation, or use of the product.
This warranty specifically excludes damage incurred in shipment. In the event a product is
received in damaged condition, the carrier should be notified immediately. Claims for such
damage should be filed with the carrier involved in accordance with the F.O.B. point.
Headquarters: In Canada:
Valcom, Inc. CMX Corporation
5614 Hollins Road 35 Van Kirk Drive #11 and 12
Roanoke, VA 24019-5056 Brampton, Ontario L7A1A5
Phone: (540) 563-2000 Phone: (905) 456-1072
FAX: (540) 362-9800 FAX: (905) 456-2269
INSTALLATION INSTRUCTIONS FOR
AMPLIFIED PENDANT SPEAKERS
MODEL NO. V-1015B
Issue 1 947021
VALCOM ONE -WAY AMPLIFIED PENDANT SPEAKERS
Valcom Pendant Speaker, V- - -1015B (five watt), is self amplified and provides voice
paging as well as background music. This speaker has an externally accessible
volume control that can be adjusted by a screwdriver through the hole in the grille.
It is weather-resistant and available in white, black, gray and custom colors.
Model V- -1015B W White
Model V- -1015B BK Black
Model V- -1015B GY Gray
DIMENSIONS/WEIGHT
• 5.80” Dia. x 8.80”H (14.73cm Dia. x 22.35cm H)
• 3.2 lbs. (1.45kg)
The V-1015B requires -24VDC, 300mA (6 Power Units).
Note: To expand a 25/70/100 Volt system, add a
V-1095 in line before connecting this speaker or
damage to both the amplifier and speaker may
occur.
INSTALLATION
The V-1015B Pendant Speaker is designed to be
suspended from a ceiling using the enclosed chain. The
chain is not attached to the ring at the top of the speaker
to prevent damage to the speaker's finish during shipping.
To install the chain, open the link on the end of the chain
and loop the link through the ring located on the top of the
speaker and close the link. Make sure the chain is securely
fastened to the ceiling.
NOTE: An additional 6 feet length of chain is available.
Order Part Number V- -1093 BK.
The area covered by a pendant speaker is determined by
the suspended height of the speaker.
Suspended Height 8 10 12 16 20
Spacing 16 20 25 30 35
Approximate Coverage 250 350 500 800 1000

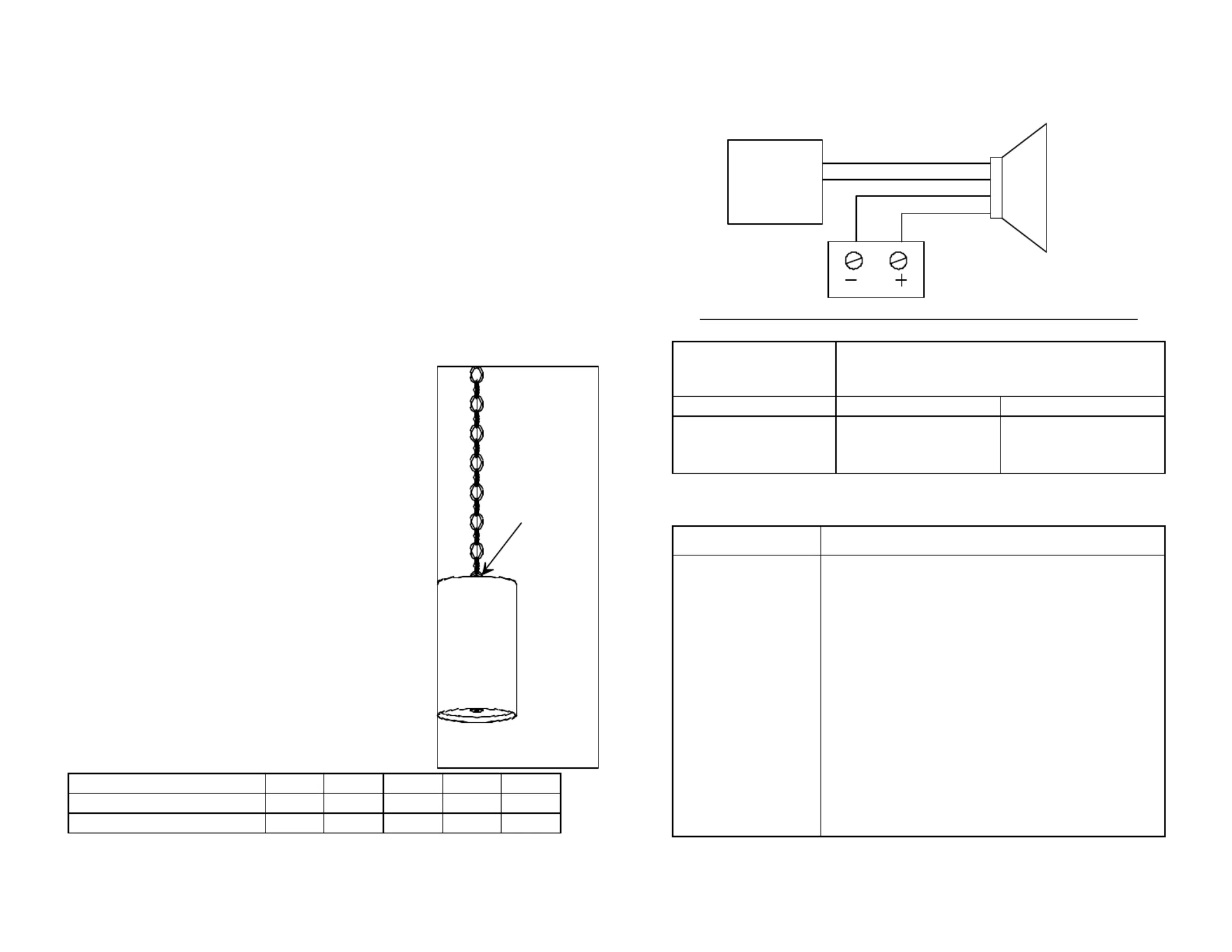

CONNECTIONS
Note: The cable is for electrical connections only. Under no circumstances
should the speaker be suspended from this cable.
Tip/A
Ring/B
-24VDC
GND
One-Way
Amplified
Speaker
Page
Out
Valcom Page
Adapter
Valcom -24VDC
Power Supply
FIGURE 2
Recommended Quantity of Speakers per Specific Power Run
Speakers per
Power Run Wire Run Length (Feet)
V-1015B 24 AWG 22 AWG
2 250 400
1 500 800
0 1000 1600
TROUBLESHOOTING CHART
SYMPTOMS ACTIONS
No audio from speaker 1. Verify volume control is turned up (clockwise).
2. Using a lineman's test set, check for proper audio
level on Tip and Ring leads and if necessary at the
source.
Low volume from
speaker
1. Verify volume control is turned up.
2. Check voltage at the speaker when in use, (-18 to
-24VDC required).
3. Using a lineman's test set, check for proper audio
level on Tip and Ring leads. It is possible that some
low level audio will be heard with only one side of
Tip and Ring connected.
Loud squeal
(feedback)
1. Decrease volume of speaker (counterclockwise).
2. Increase the distance between telephone and speaker.
3. Install confidencer on the telephone in severe
problem areas.
Attach chain here.
FIGURE 1
