VSP V- -1038

Issue 8

1 947038

V-1038

PAGING HORN/AMPLIFIER ASSEMBLY

30 WATT -48VDC WITH VOLUME CONTROL

INTRODUCTION

This instruction provides identification, installation

and technical assistance information for the V-1038

Horn/Amplifier Assembly.

This paging unit has received a FCC type KX

registration and is designed to be used with FCC

registered key telephone systems. In accordance with

FCC rules with applicable tariffs, this Paging Unit may

only be installed with the authorization of the host

system. Installations may be made by Valcom, Inc.,

an authorized agent of the same, equipment

manufacturers, telephone companies, registered

telephone refurbishers and those qualified for

installation of FCC registered systems under FCC

Rules Section 68.215. The FCC Registration Number,

BAF9I7- - -69358 KX N, will be listed in the affidavits

filed with the Telephone Company; it will also be

recorded in the system log kept by installation and

maintenance personnel.

DESCRIPTION

The V-1038 Paging Horn/Amplifier Assembly is a

self-contained 30 Watt paging system incorporating:

(a) 30 Watt amplifier

(b) Volume control

Dimensions/Weight

• 7.38" H x 10.00" W x 10.40" D

(18.75cm H x 25.40cm W x 26.42cm D)

• 4.1 lbs. (1.86kg)

Nominal Specifications:

Input impedance: 600 Ohms minimum

Input level: 10dBm nominal

Current at -48VDC: 1 Amp

Connections:

Green Tip Audio Source

Red Ring Audio Source

White -48VDC Power

Black Ground Power

Due to the low-level signal required, distribution

wiring is normally accomplished through house cable

pair or station wire.

Typical applications include:

(a) Use with a Valcom page control.

(b) Expanding the capability of telephone

system’s which contain limited paging

capabilities.

loud speaker tone signaling is employed.

INSTALLATION

This horn may be used for either interior or exterior

paging applications and should be installed 16 to 40

feet from the floor taking into account installation and

maintenance access.

Connect station wire (or other suitable pairs) to the

proper speaker connection. When using station wire,

limit the maximum run to 250 feet. Two horns may be

connected to the same pairs if the total run is less

than 125 feet.

When a remote power unit is used, the audio pair run

should be limited to 5000 feet and a maximum of 6

horns.

The volume control is factory pre-set approximately

mid-way. As the system is put in operation, the

individual volume controls may be readjusted as

necessary.

By loosening the knob on the base approximately four

turns, the horn may be rotated or moved up and down

to obtain the desired position.

TECHNICAL ASSISTANCE

When trouble is reported, verify that power is being

supplied to the unit and there are no broken

connections. Check voltages for proper polarity on

the crossconnect block.

Assistance in troubleshooting is available from the

factory. When calling, you should have a VOM, a

telephone test set, and several clip leads available and

be calling from the job site. Call (540) 563-2000 and

ask for Technical Support, or call (540) 767-1555 for

Valcom 24-hour Faxback System or visit our website

at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc.

maintains service facilities in Roanoke, VA. Should

repairs be necessary, attach a tag to the unit clearly

stating company name, address, phone number,

contact person and the nature of the problem. Send

the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

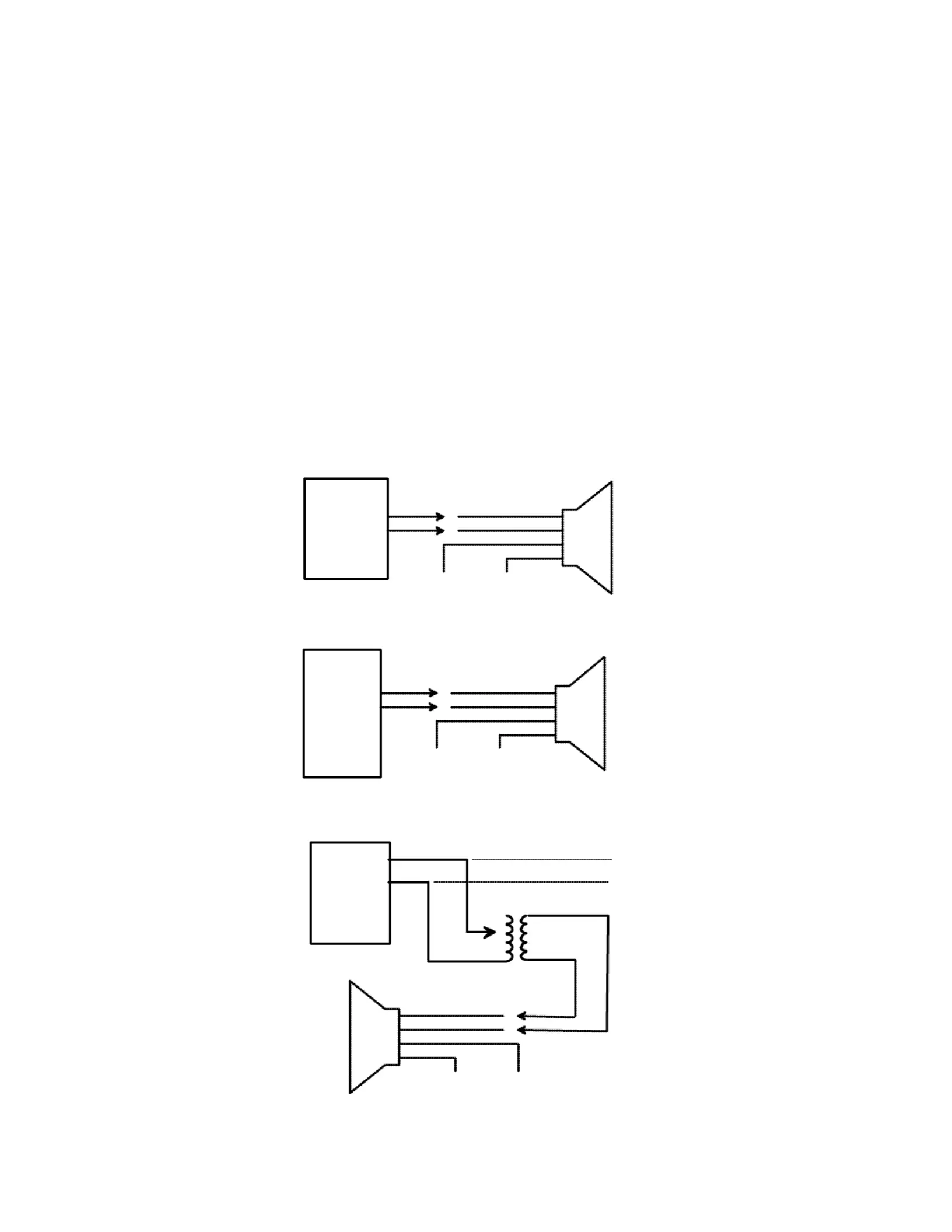

Valcom

Page

Control

GND -48VDC

Used in conjunction with the Valcom Page Control

System

Page

Amplifier

457 KTU

equiv.

V-1038

Used to expand loudspeaker paging capabilities

1/4W Tap

8 Ohm

Output

70V or

25V Amp

Used to expand existing 70 volt paging systems

V-1038

GND -48VDC

V-1038

GND-48VDC

Green

Red

Black

White

Green

Red

Black

White

Green

Red

Black

White

V-1095

TROUBLESHOOTING CHART

PROBLEMS

PROBABLE CAUSES AND CORRECTIONS

No Sound

Low Volume

Loud Squeal (feedback)

1. Check that volume control is turned up.

2. Check presence of -48VDC and GND.

3. Make sure the WHT wire is connected to -48VDC.

4. Using a lineman's test set, check for the proper audio level on the

T & R leads, and if necessary also at the source.

1. Check that volume control is turned up.

2. Check voltage at the horn when in use: -40 to -50 Volts required.

3. Using a lineman's test set, check for the proper audio level on the

T & R leads - it is possible that some sound will be heard with only

one side of Tip and Ring.

1. Lower volume of speaker.

2. Aim horn in different direction.

3. Move horn to location further from phone.

4. Install confidencer on phone in severe problem area.

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service

for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or

refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim,

2. the defect is not the result of damage, misuse, or negligence after the original shipment,

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (A service

charge plus parts and labor will be applied to units defaced or physically damaged),

4. freight charges for the return of products to Valcom are prepaid,

5. all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (Major repairs will be

subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be liable

for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the

purchase, operation, or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the

carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the

F.O.B. point.

Headquarters: In Canada

Valcom, Inc. CMX Corporation

5614 Hollins Road 35 Van Kirk Drive #11 and 12

Roanoke, VA 24019-5056 Brampton, Ontario L7A1A5

Phone: (540) 563-2000 Phone: (905) 456-1072

FAX: (540) 362-9800 FAX: (905) 456-2269
