TECHNICAL ASSISTANCE
When trouble is reported, verify there are no broken connections to the unit.
Assistance in troubleshoting is available from the factory. When calling, you
should have a Volt-ohm meter and a lineman's test set available and be calling
from the job site. Call (540) 427-3505 and ask for an Applications Engineer or
call (540) 427-6000 for Clarity 24-hour Automated Support.
Clarity equipment is not field repairable. Clarity maintains service facilities in
Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating
your company name, address, phone number, contact person, and the nature of
the problem. Send the unit to:
Clarity
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
LIMITED WARRANTY
Clarity warrants its products to be free from defects in materials and workmanship under
conditions of normal use and service for a period of one year from the date of shipment. The
obligation under this warranty shall be limited to the replacement, repair or refund of any such
defective device within the warranty period, provided that:
1. Inspection by Clarity indicates the validity of the claim;
2. The defect is not the result of damage, misuse, or negligence after the original
shipment;
3. The product has not been in any way repaired by others and that factory sealed
units are unopened (A service charge plus parts and labor will be applied to units
defaced or physically damaged);
4. Freight charges for the return of products to Clarity are prepaid;
5. All units "out of warranty" are subject to a service charge. The service charge will
cover minor repairs (Major repairs will be subject to additional charges for parts and
labor).
This warranty is in lieu of and excludes all other warranties expressed or implied, and
in no event shall Clarity be liable for any anticipated profits, consequential damages,
loss of time or other losses incurred by the buyer in connection with the purchase,
operation or use of the product.
This warranty specifically excludes damage incurred in shipment. In the event a product is
received in damaged condition, the carrier should be notified immediately. Claims for such
damage should be filed with the carrier involved in accordance with the F.O.B. point.
INSTALLATION INSTRUCTIONS FOR
MODEL NO. S-515
Issue 1 947453
CLARITY TALKBACK SLIMLINEâ„¢ WALL SPEAKER
Clarity Slimline Wall Speaker, S-515, is a 45 ohm talkback speaker designed to
be used with Clarity 'handsfree' talkback control units. The distance you can be
away from the speaker and still have good talkback depends on the ambient noise
level. In a typical office environment, the speaker will cover approximately 600
square feet.
Model S-515-BK Black
Model S-515-W White
US Patent Number D357,682, UK Reg.'d 2041547

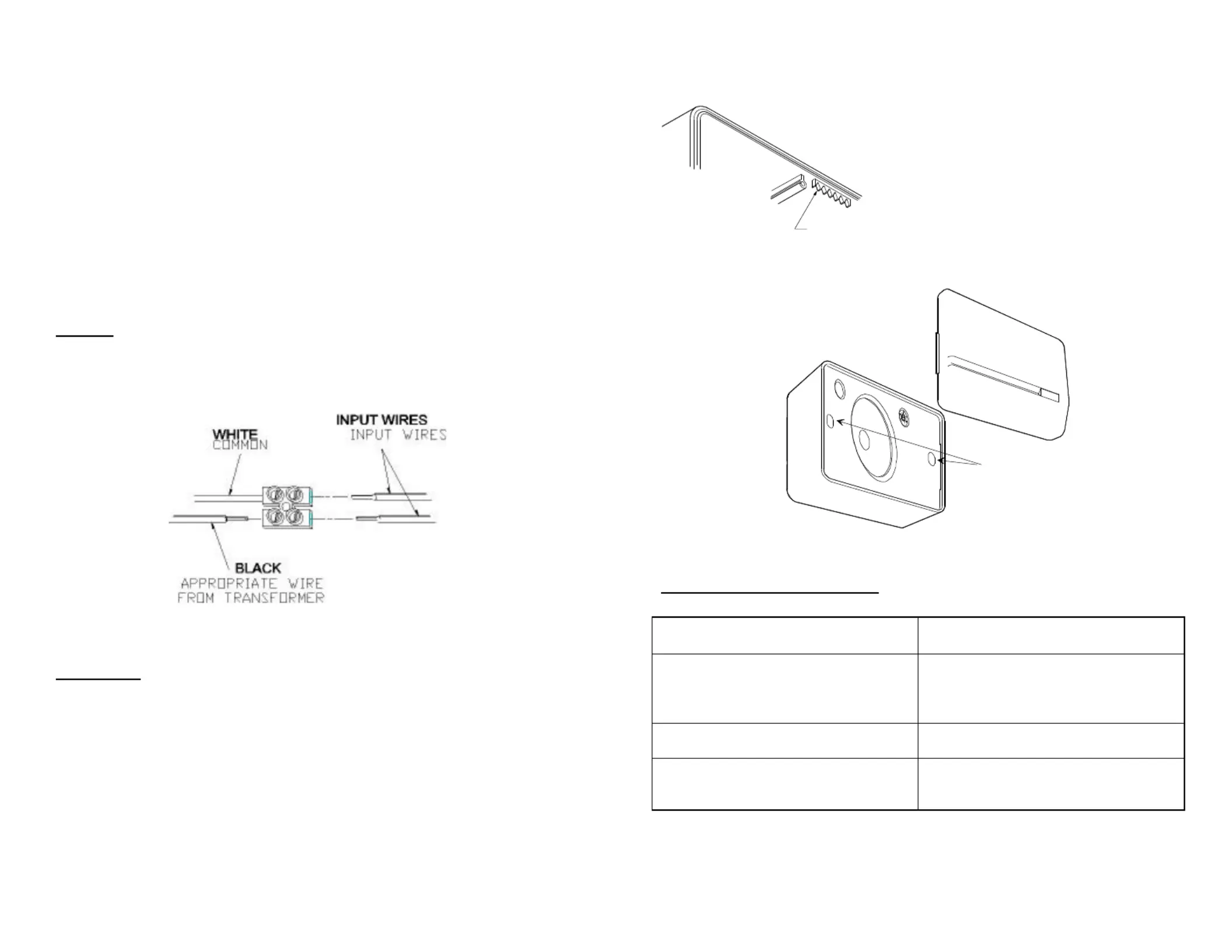

WIRING
Make connections as shown in Figure 1.
Figure 1
MOUNTING
The baffle provides two methods of mounting:
1. The baffle can be suspended from a nail or hook by a "hanger" that is
attached to the housing. See Figure 2.
2. The unit can be attached to a wall using two mounting bosses. The
distance between the mounting boss hole centers is 8.5". Remove cover
and secure baffle to wall with screws. This mounting provides better low
frequency response for music and a more secure attachment to the wall.
See Figure 3.
Figure 2
Figure 3
TROUBLESHOOTING CHART
SYMPTOM ACTION
• • No sound in page mode. Check tip and ring for audio at
speaker.
• Check tip and ring for audio at
control unit.
• • Low sound in page mode. Check volume controls at page
control.
• • Poor listening in talkback mode. Check talkback volume control at
page control. Set control where
audio is clearly audible.
WALL
MOUNTING
BOSSES
HANGER
