V-Tac VT-81006 Manual
Read below 📖 the manual in Italian for V-Tac VT-81006 (2 pages) in the Lamp category. This guide has been helpful for 6 people and has been rated 4.5 stars on average by 2 users
Page 1/2
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
INSTRUCTION MANUAL
HOUSE NO. LIGHT DAY/NIGHT SENSOR
TECHNICAL DATA
MODEL VT-81006
SKU 23422
INPUT VOLTAGE AC: 220-240V, 50/60 Hz
LUMENS 1100 Lm
WATTS 12W
AMBIENT LIGHT <3-50LUX (Adjustable)
CRI >80
WORKING
TEMPERATURE -20°C to +40°C
DIMENSION XXxXX mm
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product. The products
are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This
product is warranted for manufacturing defects only.
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
WARNING
1. Please make sure to turn o the power before starting
the installation.
2. Installation must be performed by a qualified electrician.
INSTALLATION INSTRUCTIONS
TEST
NOTE

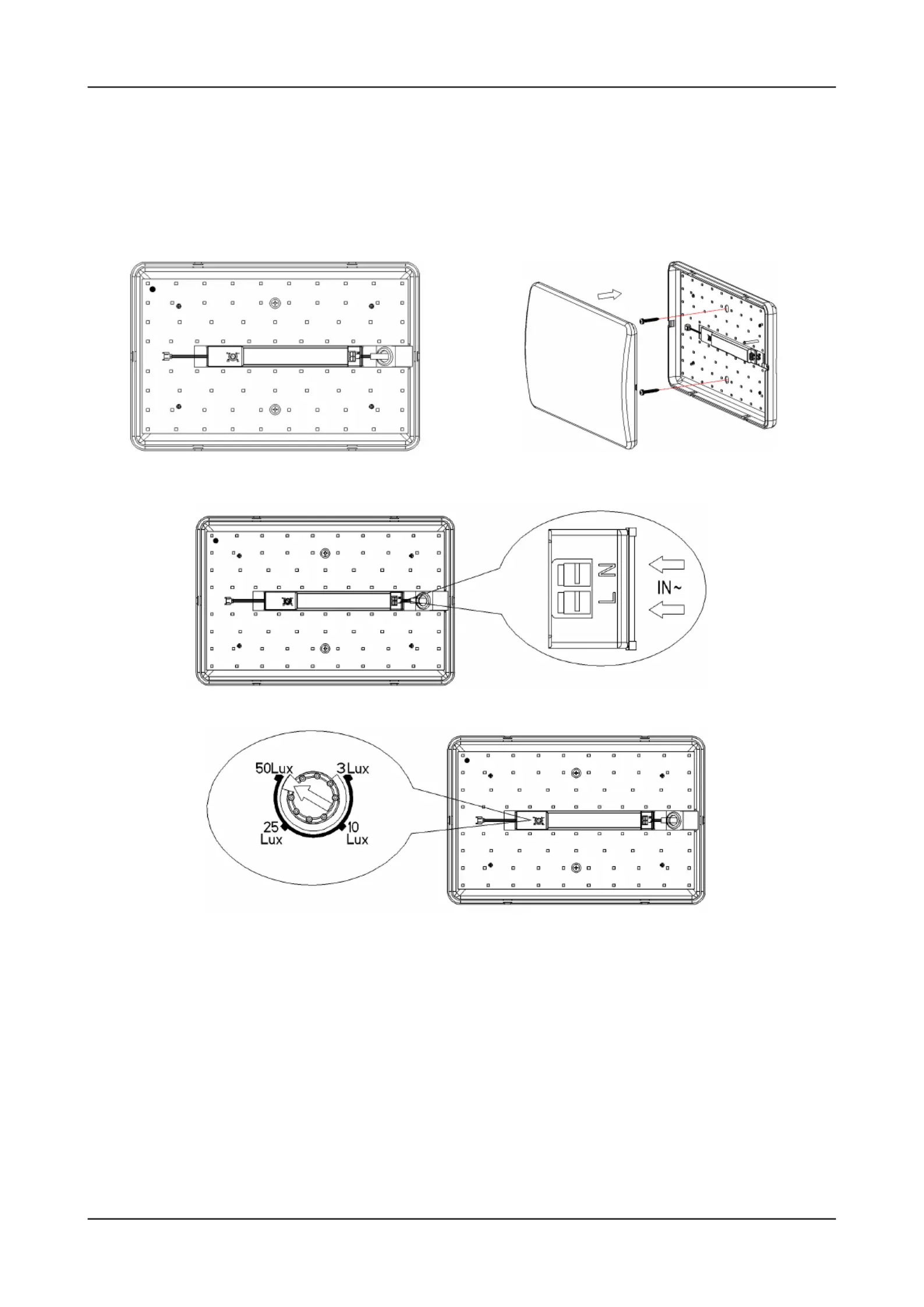

CONNECTION WIRE DIAGRAM
• Switch o the power.
• Unload the lampshade and open it.
• Pass the wire through the hole in the bottom and connect the power wire into the terminal
block according to the connection-wire diagram. Install the lamp at the position where you
need with inflated screws.
• Switch on the power and test it.
• Slide the LUX knob to 50LUX and switch on the power. When you test in the daytime, you
should cover a black opaque cloth on the lamp.
• When the cloth mantles the lampshade, the ambient light is less than about 50LUX, the lamp
will turn on automatically aer about 20s.
• Keep the lamp ON not less than 15s, then when you take away this cloth and the ambient light
gets brighter more than about 150LUX, the lamp will switch o automatically in about 15s.
• Slide the LUX knob to 3LUX, the lamp will turn on when the ambient light is less than 3LUX.
• When you set LUX knob to other marked positions, the lamp will turn on when the ambient
light reaches the required LUX value.
• In front of the lamp, there should be no obstruction aecting it receives natural light.
• The working of lamp may be dierent when installed in a bright or dark place as it works ac-
cording to the condition of ambient light.
Product Specifications
| Brand: | V-Tac |
| Category: | Lamp |
| Model: | VT-81006 |
