INSTRUCTION MANUAL
LED LINEAR HANGING LIGHT
ADJUSTABLE HEIGHT
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product. The products
are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This
product is warranted for manufacturing defects only.
TECHNICAL DATA
MODEL VT-7-44
SKU 10468, 10469, 20
LUMENS 3400 Lm
WATTS 40W
LED COLOUR 3000K-6400K [C
BEAM ANGLE 100°
CRI >80
PF >0.9
LIFE SPAN 30,000 Hours
LINKABLE
CONNECTION Upto 10
IP RATING IP20
BODY TYPE PS+Aluminium
WIRE LENGTG 1.5 Meter Wire
OPERATION
TEMPERATURE -20°C to +40°C
INPUT POWER AC: 200-240V, 50/60Hz
DIMENSION 1210x55x15.8mm
WARNING
INSTALLATION DIAGRAM
1. Please make sure to turn o the power before starting the installation.
2. Installation should be done by certified electrician.
3. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order
to avoid a hazard.
4. Proper grounding should be ensured throughout the installation.
5. For Indoor use only
• Switch o the power before starting the installation.
• Drill a hole of 6mm diameter on the ceiling push
the plastic fitting into the hole
• Tightly firm locked 4 to 2
• Put 7 bottom plate and insert the lamp body, keep
the suspension cables in a vertical direction.
• Hang the lamp using the hanging wire.
This marking indicates that this
product should not be disposed of
with other household wastes.
Caution, Risk of electric shock
1. Install the matching diuser 2. Fixing screws on the bracket
Replaceable (LED Only) light source
by a professional
Replaceable control gear
by a professional

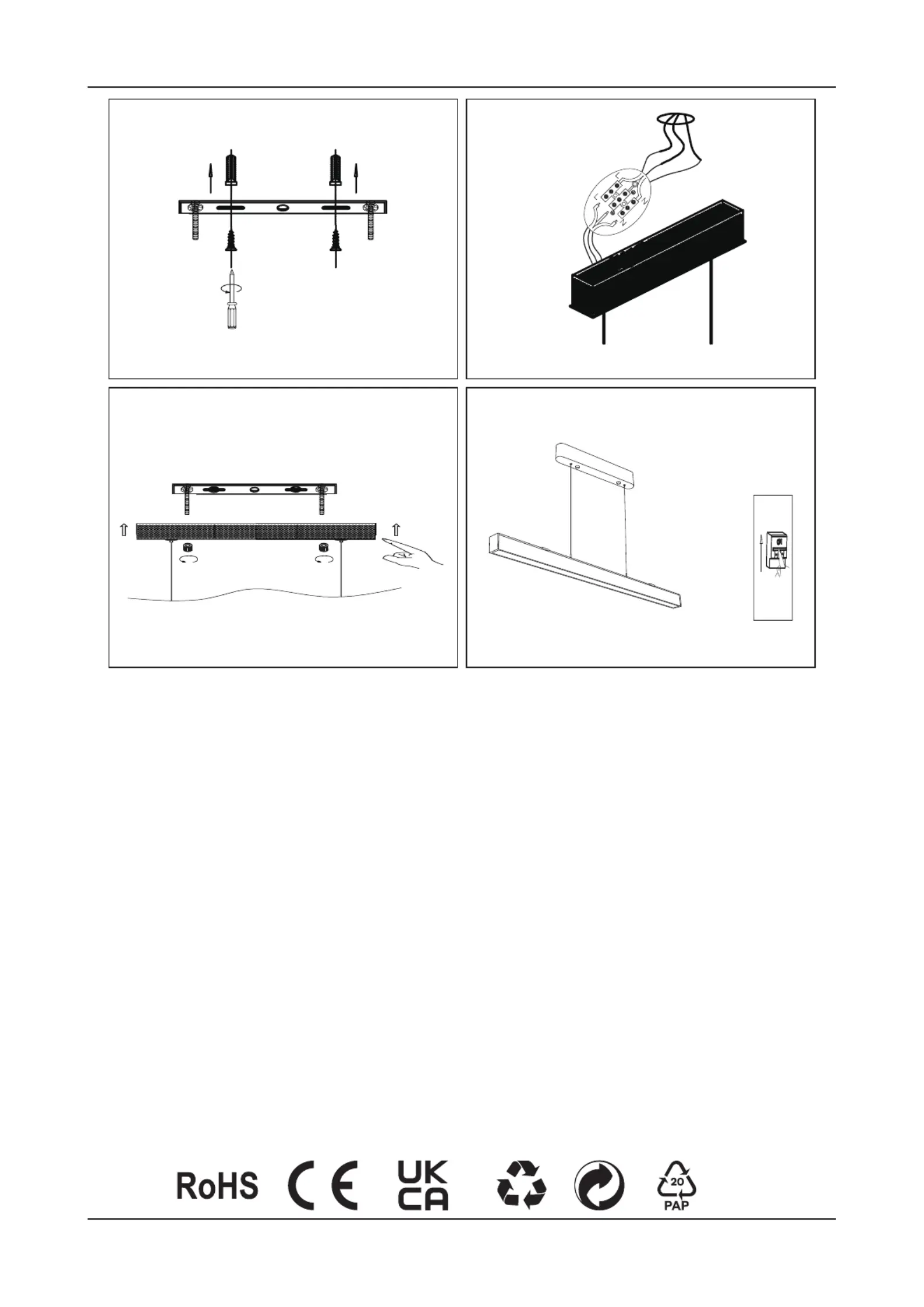

3. Fixed brackets on the ceiling 4. Connect the power cable
5. Secure the ceiling box to the bracket 6. Turn on the power and test
