V-Tac VT-59ST Manual

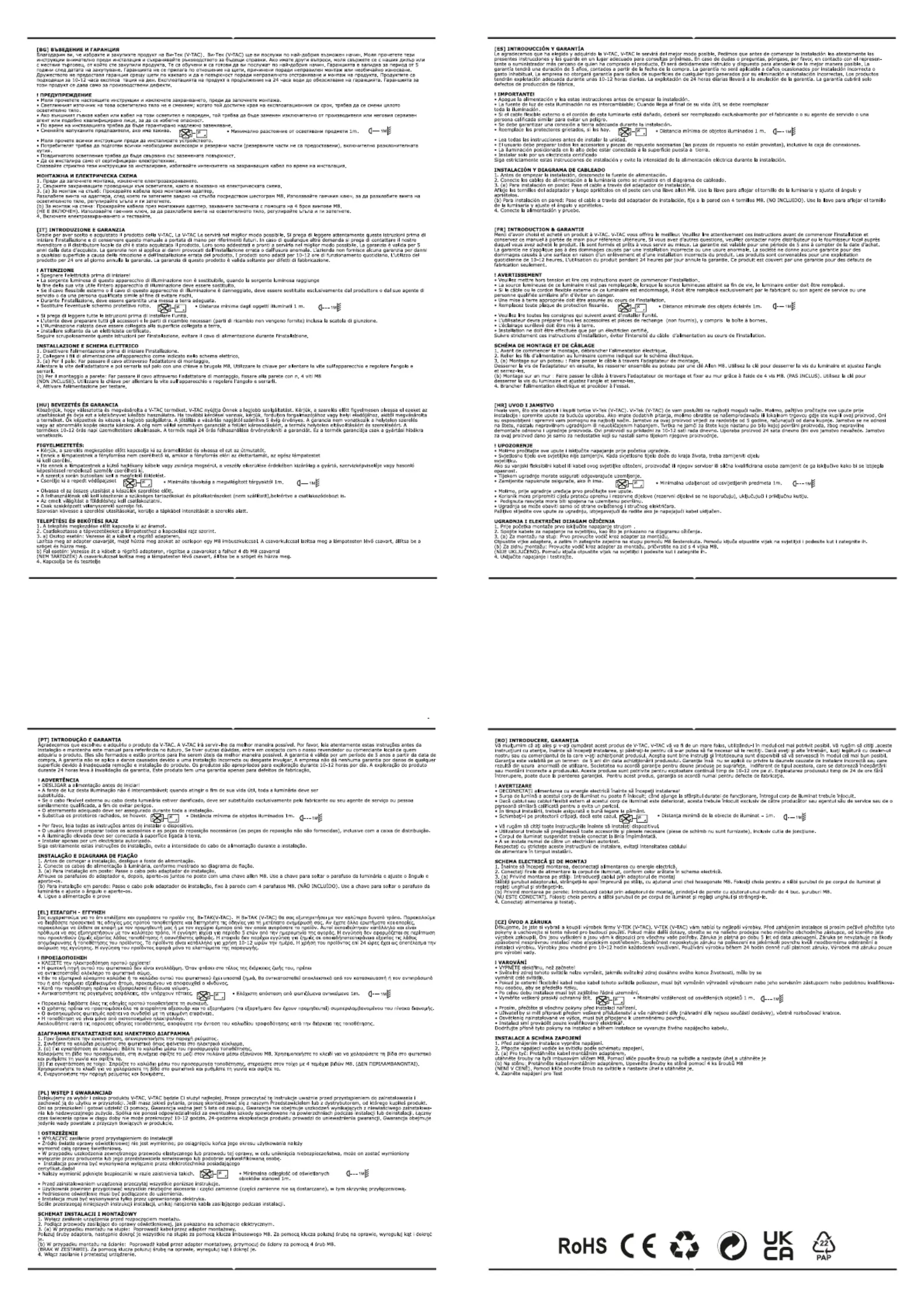

Read below 📖 the manual in Italian for V-Tac VT-59ST (2 pages) in the Relief category. This guide has been helpful for 2 people and has been rated 4.5 stars on average by 2 users
Page 1/2
SKU LUMENS CRI INPUT VOLTAGE DF LIFE TIMEWAT TS SURGE
PROTECTION
GRADE
MOUNTING
DIAMETER
BEAM
ANGLE
LxWxH (mm)
2120424
2120438
2120426
2120428
5740LM
8040LM
11480LM
17220LM
135+
LM/WATT EFFICIENCY
SUPER BRIGHT
INTRODUCTION AND WARRANTY
• Please make sure to turn o the power before starting the installation.
• The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire shall be replaced.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
• Replace any cracked protective shield.
• Minimum distance from lighted objects 1m.
• Proper grounding should be ensured throughout the installation.
• Please read through all following instructions before installing the unit.
• User should prepare all the necessary accessories and spare parts
(Spare parts not provided) including junction box.
• The raised lighting must be connected to the earth ground.
• Installation must be performed by a qualified electrician.
Strictly follow these instructions for installing, avoid the intensity of power cable during installing.
1. Switch OFF the power before starting the installation.
2. Connect supply wires to the luminaire as displayed in the
wiring diagram.
3. (a) For Pole: Pass the cable through the mounting adaptor,
tighten the screws on the pole with an M8 Allen wrench. Use
the wrench to loosen the screw on the luminaire and adjust the
*This product contains a light source of energy eciency class<D>,where <D> shall be replaced by the energy class
of the contained light source.
TECHNICAL DATA
WARNING
INSTRUCTION MANUAL
LED STREET LIGHT
INSTALLATION & WIRING DIAGRAM
INSTALLATION INSTRUCTION INSTALLATION INSTRUCTION
DISASSEMBLY DIAGRAM
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
MODEL
angle and tighten them
(b) For wall: Pass the cable through the mounting adaptor, Fasten screws against the wall by 4PCs of M8 screws
(NOT INCLUDED). Use the wrench to loosen the screw on the luminaire and adjust the angle and tighten them.
4. Turn ON the power to Test
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before
starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer
or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is
valid for 5 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal
wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the
product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty.
This product is warranted for manufacturing defects only.
Product Specifications
| Brand: | V-Tac |
| Category: | Relief |
| Model: | VT-59ST |
