INSTRUCTION MANUAL
LED WATERPROOF LAMP FITTING
TECHNICAL DATA
MODEL VT-12017 VT-12035 VT-12049
SKU 23391, 23392 23387, 23388 23389, 23390
WATTS 18W 36W 48W
LUMENS 2160 Lm 4320 Lm 5760 Lm
BEAM ANGLE 120° 120° 120°
DF ≥0.7 ≥0.9 ≥0.9
CRI ≥80 ≥80 ≥80
INPUT POWER AC:200-240, 50/60Hz AC:200-240, 50/60Hz AC:200-240, 50/60Hz
LIFE SPAN 25,000 Hours 25,000 Hours 25,000 Hours
ON/OFF CYCLE >15,000 Times >15,000 Times >15,000 Times
MAX CONNECTABLE
UNITS 20 10 8
DRIVER MA (Input Current) 100mA 200mA 265mA
MATERIAL PC PC PC
DIMENSION 600x68x59mm 1200x68x59mm 1500x68x59mm
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 3 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product. This product is
warranted for manufacturing defects only.
This marking indicates that this product
should not be disposed of with other
household wastes.
Caution, risk of electric shock.

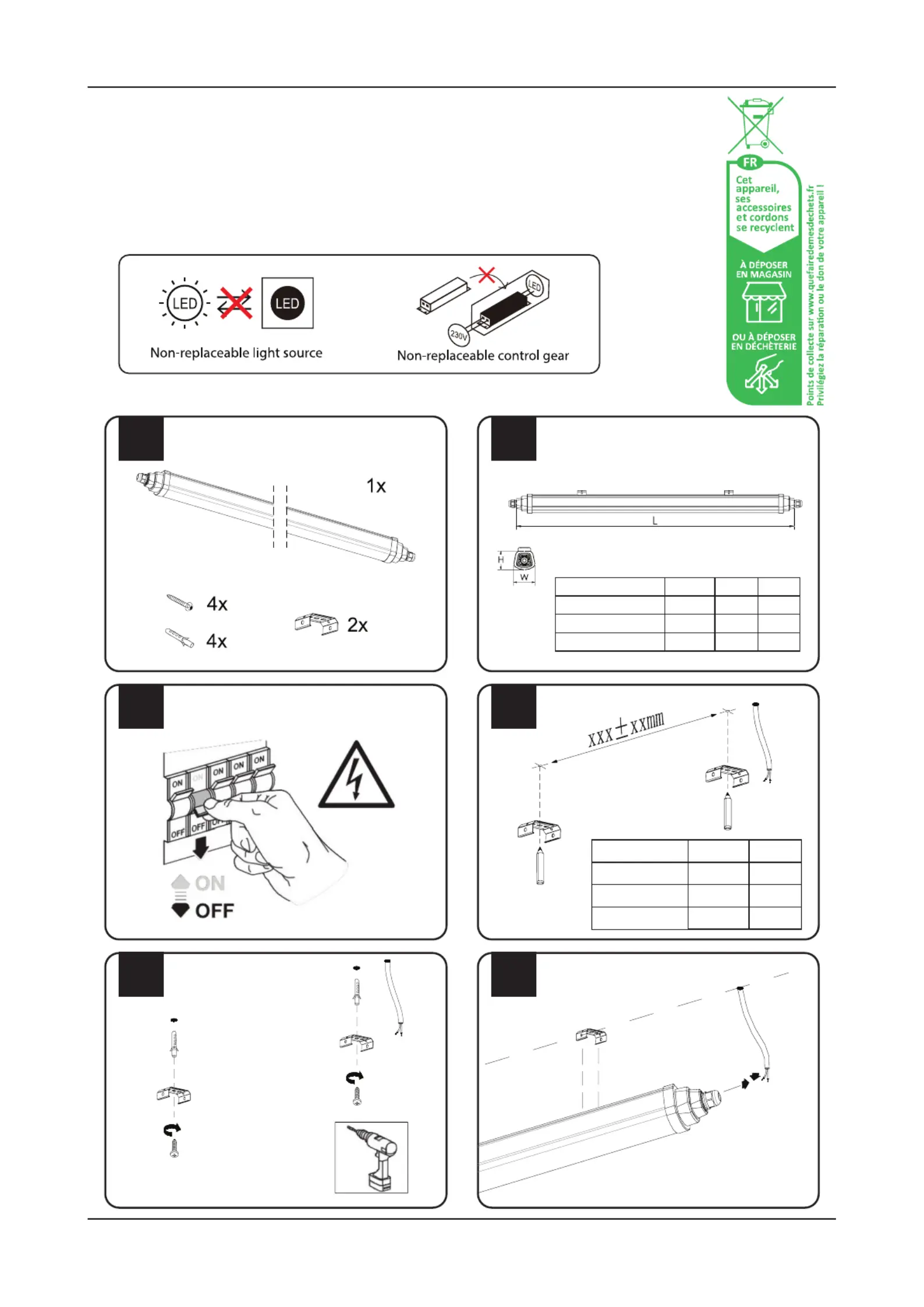

INSTALLATION DIAGRAM
WARNING
1. Please make sure to turn o the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. The light source of this luminaire is not replaceable; when the light source reaches its end of life
the whole luminaire shall be replaced.
4. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced
by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
5. Terminal block not included. To be connected with Waterproof Cable Hose
1
3
5
2
4
6
MODEL L W H
VT-12017 600 68 59
VT-12035 1200 68 59
VT-12049 1500 68 59
MODEL XXX XX
VT-12017 250 ±20
VT-12035 800 ±20
VT-12049 1100 ±20
INSTALLATION INSTRUCTIONS
BROWN BLUE
1. Turn o the the power.
2. Mark the proper drilling point as per the chart.
3. Fix the brackets onto the ceiling by oered screws. Open junction box cover of the body with screwdriver.
4. Make sure the cable length is appropriate.
5. Install the lamp to the ceiling clips.
6. Open the right side lid to connect wires.
7. Insert cable through the waterproof connector and wire it into terminal block. Make sure L and N are wired to
correct holes. (LIVE = BROWN; NEUTRAL = BLUE)
8. Close the right lid.
9. Turn on the power and test.
