Unicol PSK Manual
Read below 📖 the manual in Italian for Unicol PSK (3 pages) in the slot category. This guide has been helpful for 5 people and has been rated 4.5 stars on average by 2 users
Page 1/3

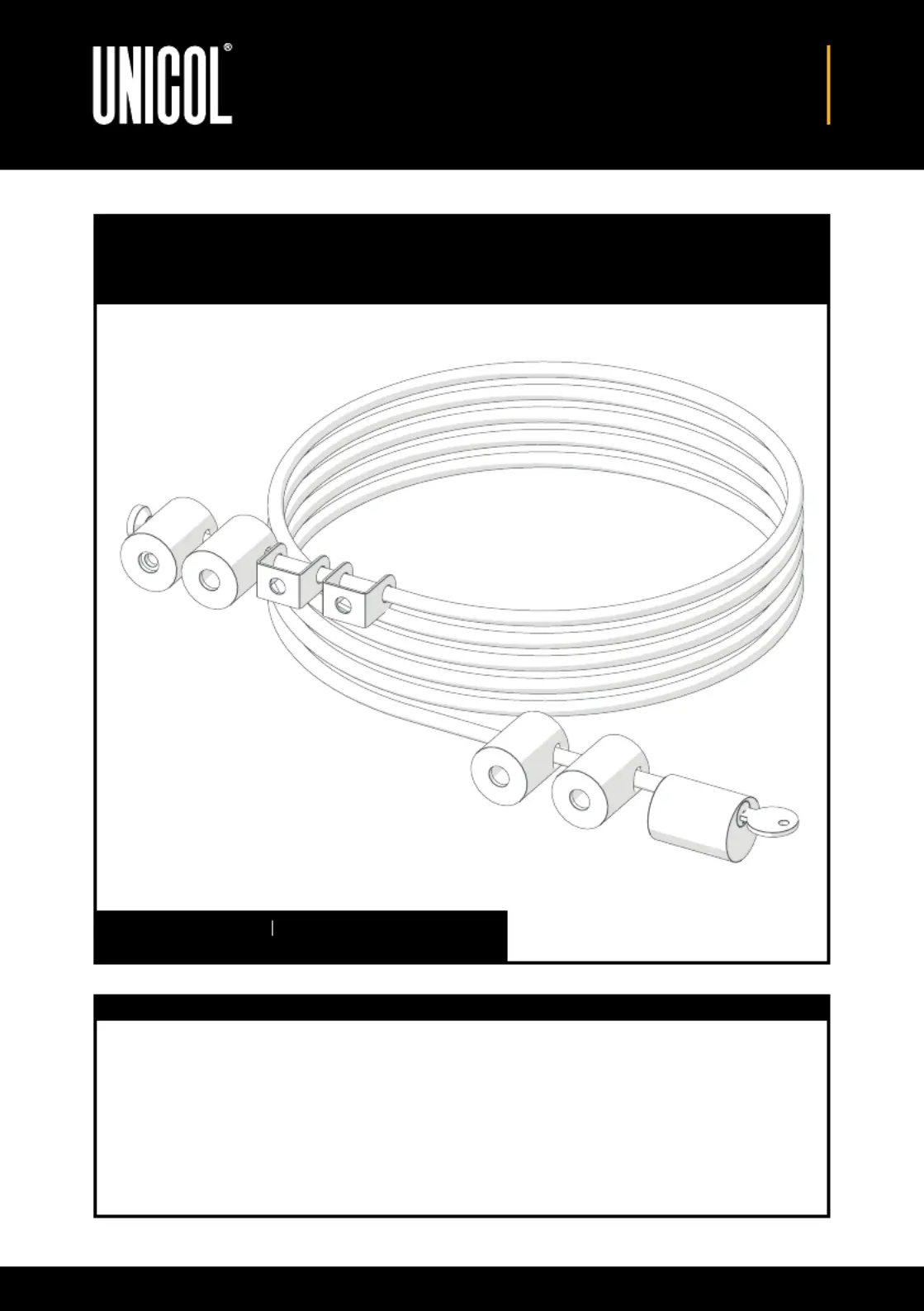

WARNING
Please carefully inspect the product before assembling. If you notice any apparent damage, call your
carrier claims agent and do not continue the installation until it has been reviewed. Please watch for
pinch points. Do not put your fingers between moveable parts. Do not tamper with or disassemble any
spring loaded parts. Before installing, make sure that the supporting surface will support five times the
combined load of the solution and the hardware. Never exceed the maximum load capacity. Please also
layout all components to ensure that you have all of the required parts before proceeding (see BOM list
on following page). Use of this product for anything other than its specified use may result in failure or
personal injury. This product is intended for indoor use only. We recommend using a qualified trades
person for installation. Use an assistant or lifting equipment to lift and position products.
For support, please call: +44 (0)1865 767676 or email: sales@unicol.com
Revised 11/12/20
01865 767676
sales@unicol.com
www.unicol.com
*Please check model specific details before installing*
PSK
Screen Size: Guide Max. Weight: N/A N/A
01865 767676
sales@unicol.com
www.unicol.com
2Revised 11/12/20

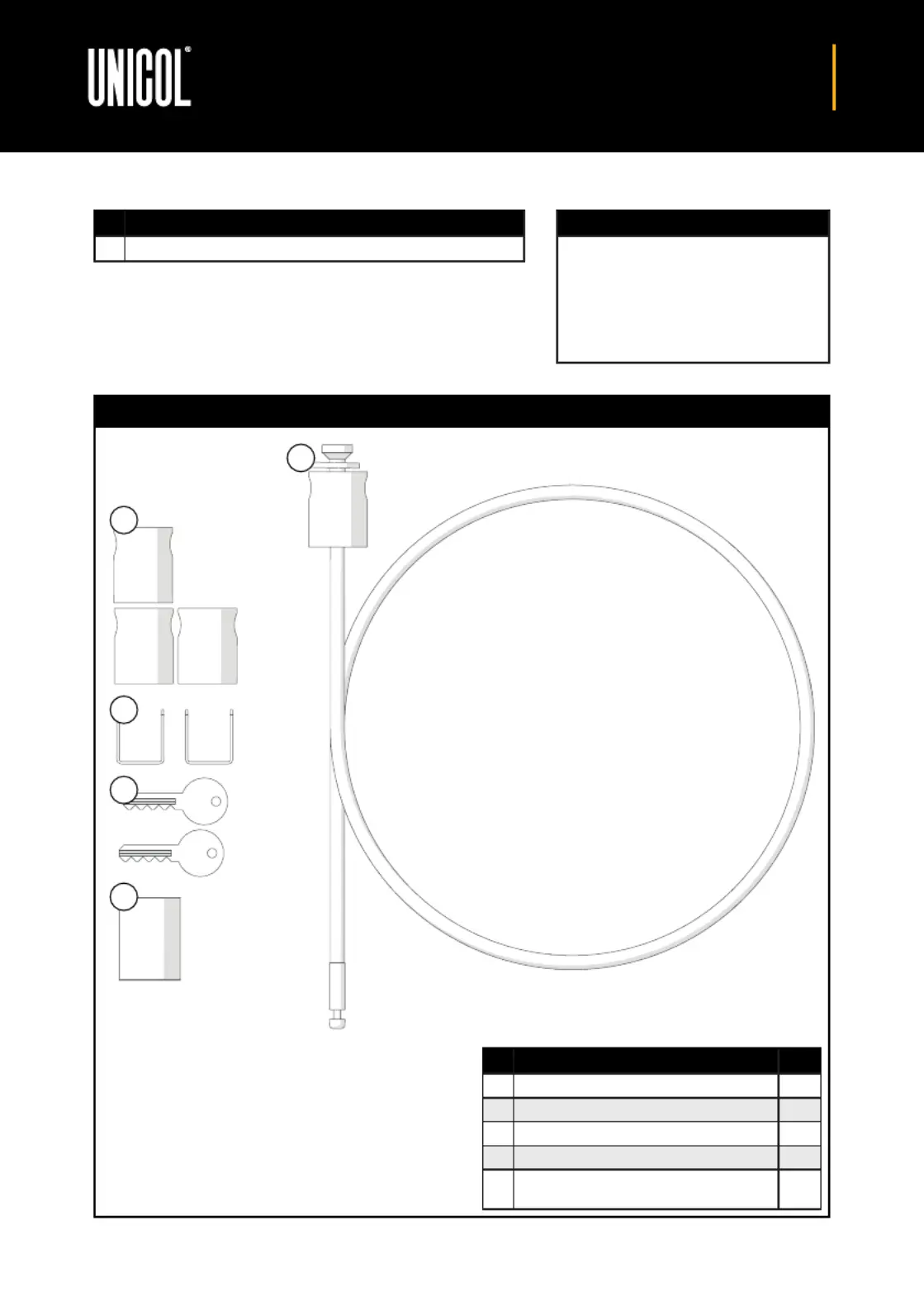

COMPONENTS
INSTALLERS REQUIRED
1
# DESCRIPTION QTY
1Securing Ferrules 3
2Brackets 2
3Keys 2
4Barrel Lock 1
5Tetherloc Cable with 1x Securing Ferrule
and 1x Retaining Washer 1
#TOOLS REQUIRED
1 n/a
1
2
3
4
5
01865 767676
sales@unicol.com
www.unicol.com
3
Revised 11/12/20

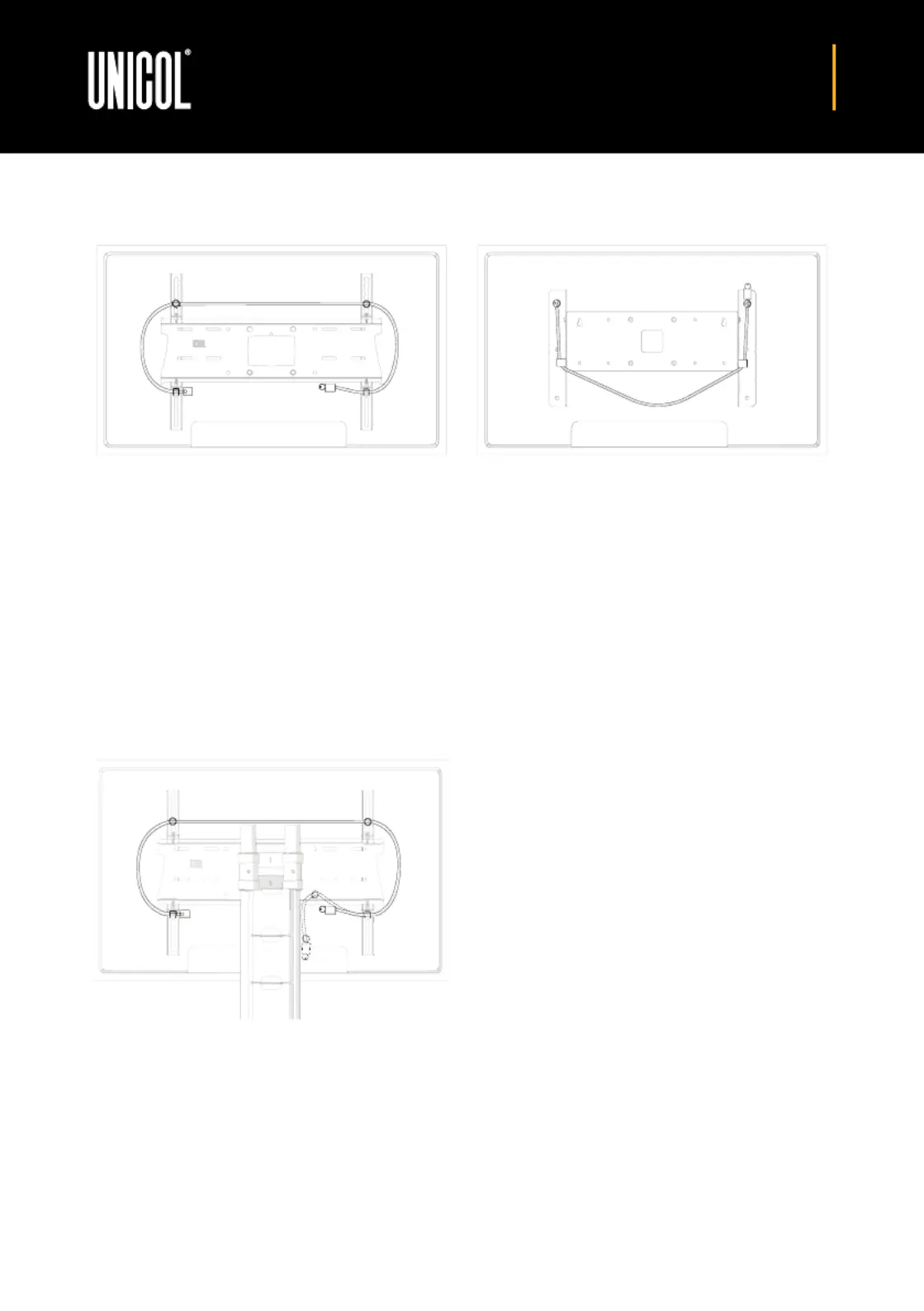

UNIVERSAL MOUNT FIXING (PZX/PZW)
Place the top two fixing screws (a) that hold the
mount to the screen through the two ferrules (1)
and tighten. Place the mount arm securing screws
(b) through the brackets (2) and tighten.
Thread the cable (5) through the ferrules and
brackets. Snap the end of the cable into the barrel
lock (c) to complete the installation.
DEDICATED MOUNT FIXING (PLX/PLW)
Place the top two fixing screws (a) that hold the
mount to the screen through the two ferrules (1)
and tighten. Place one of the fixings that connects
the mount arm and wall plate together (b) at either
end into the two remaining ferrules (1) and tighten.
Thread the cable (5) through the ferrules and
brackets. Snap the end of the cable into the barrel
lock (c) to complete the installation.
STAND / TROLLEY FIXING
Follow the above instructions depending on which
mount you are fitting too.
To secure the solution to the wall, use one of the
ferrules to hide the screw head of one of the stand/
trolley mount fixing points (d). Use the remaining
ferrule (e) to attach to the wall (fixing screw not
included).
aa
aa
b
b
b
b
c
c
a a
b b
c
d
e
