Tannoy VXP 12.2Q Manual
Read below 📖 the manual in Italian for Tannoy VXP 12.2Q (32 pages) in the Speaker category. This guide has been helpful for 3 people and has been rated 4.5 stars on average by 2 users
Page 1/32

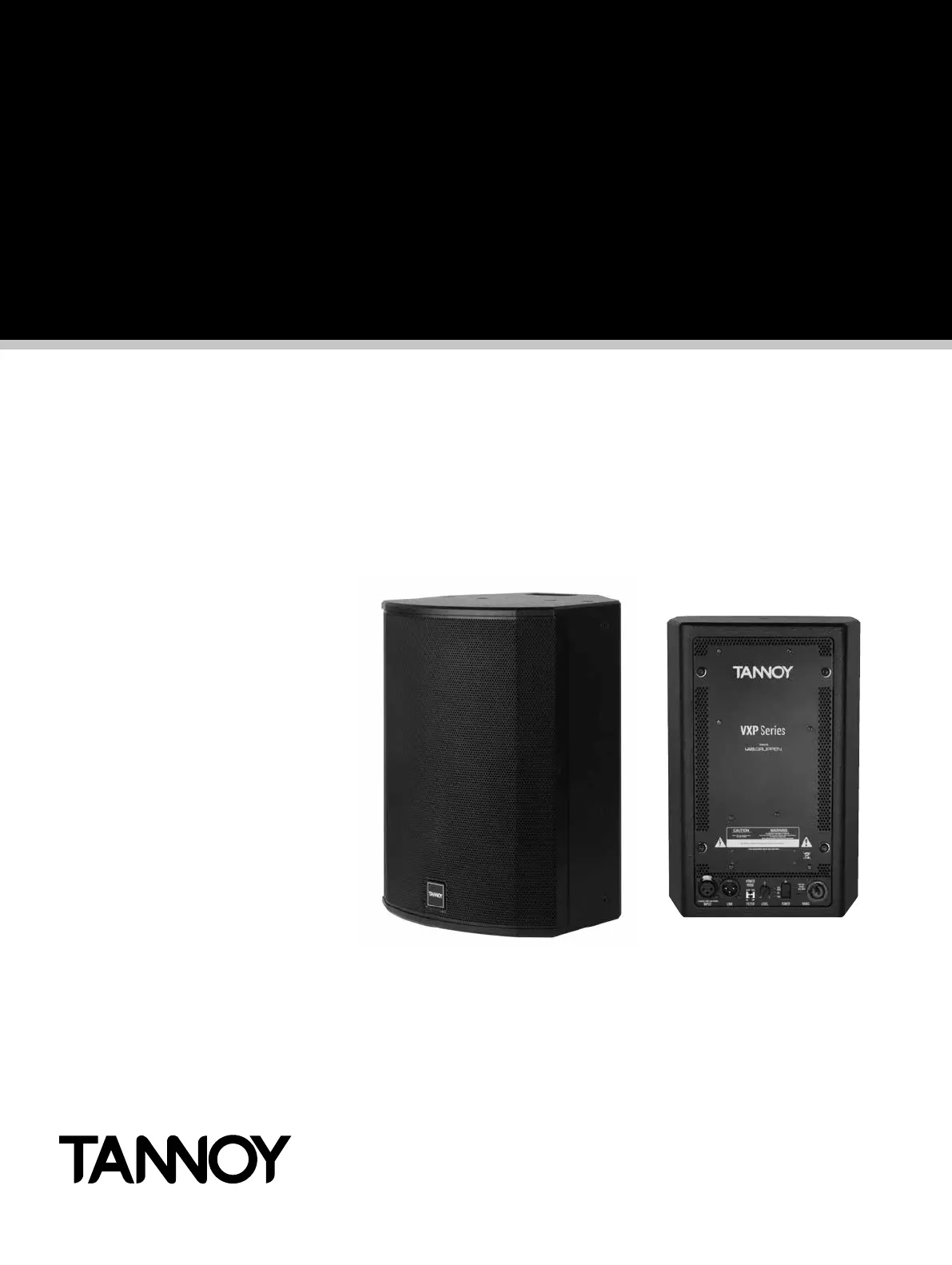

VXP Series
Professional Loudspeakers
Operation Manual
2 VXP Series Operation Manual rev 3.0.0
Important Safety Instructions
SAFETY WARNING
Permanent disconnection from the mains supply is achieved
by removing the power cord from the mains supply outlet.
UNDER NO CIRCUMSTANCES SHOULD YOU BREAK THE
POWER USING THE powerCON CONNECTOR.
SAFETY WARNING
Do not remove any covers, loosen any xings or allow items to
enter any aperture
SAFETY WARNING
Objects lled with liquids should not be placed on this
apparatus.
SAFETY WARNING
The rear heatsink on this product gets hot. Avoid direct skin
contact during operation and for at least 5 minutes after power
has been isolated.
AVERTISSEMENT DE SECURITE
Pour déconnecter l’appareil de l’alimentation principale de
façon permanente, débranchez le connecteur du câble fourni à
l’arrière de l’appareil.
AVERTISSEMENT DE SECURITE
Ne retirez pas les couvercles, ne desserrez pas les xations et ne
laissez aucune pièce s’introduire dans les ouvertures.
AVERTISSEMENT DE SECURITE
Ne placez pas d’objets contenant du liquide à proximité de
l’appareil.
AVERTISSEMENT DE SECURITE
Le radiateur arrière de cet appareil devient chaud. Evitez tout
contact direct avec la peau pendant le fonctionnement et au
moins 5 minutes après la mise hors tension de l’appareil.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the
other. A grounding type plug had two blades and a third grounding
prong. The wide blade or the third prong are provided for your
safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments / accessories specied by the
manufacturer.
12. Use only with the cart stand, tripod, bracket or mount table
specied by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart /
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightening storms or when unused
for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
The lightning ash with arrowhead symbol within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage " within the
product's enclosure that may be of sucient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
VXP Series Operation Manual rev 3.0.0 3
Installation Instructions
1. THIS PRODUCT MUST BE EARTHED. Use only a exible
cable or cord provided with a green or green and yellow core
which must be connected to the protective earthing terminal
of the detachable Neutrik ‘powerCON’ type NEC3FCA
connector (Tannoy part number 3461 0919) as supplied with
the equipment. The other end of the green or green and yellow
conductor must be connected to the earthing pin of a suitable
mains plug or the earthing terminal of the installation. The cord
must be of maximum length 7.5 meters, rated SJ, SJT, or SJE,
10A minimum and be marked VW-1.
2. The electrical power connection to this product is only to
be made via a detachable Neutrik ‘powerCON’ type NEC3FCA
connector (Tannoy part number 3461 0919) as supplied with
the equipment. Wiring to this connector must be made
by suitably qualied personnel and must comply with all local
requirements.
3. Do not install this equipment in an enclosed space. Do not limit
free ventilation and movement of air around the back panel.
Ensure that there is at least 100 mm (4”) of space around all
sides of the product for ventilation. Only use attachments and
accessories approved or specied by Tannoy.
FOR CUSTOMERS IN EUROPE
This product complies with both the LVD (electrical safety)
73/23/EEC and EMC (electromagnetic compatibility) 89/336/
EEC directives issues by the commission of the European
community. Compliance with these directives implies conformity
with the following European standards:
EN60065 Product safety
EN55103-1 EMC emissions
EN55103-2 EMC immunity
This product is intended for the following electromagnetic
environments: E2; E3 & E4. Environment E1 (domestic) is
specically excluded.
FOR CUSTOMERS IN THE USA & CANADA
This product has been tested for electrical safety and
complies with:
UL60065 7th edition
CA/CSA C22.2 No.60065-03 EMC
This equipment has been designed to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment.
Industry Canada Class A emission compliance statement:
This Class B digital apparatus complies with Canadian ICES-003.
Avis de conformite’ a’ la re’glementation d’Industrie Canada, cet
appareil nume’rique de classe A est conforme a’ la norme ICES-
003.
Product Specifications
| Brand: | Tannoy |
| Category: | Speaker |
| Model: | VXP 12.2Q |
